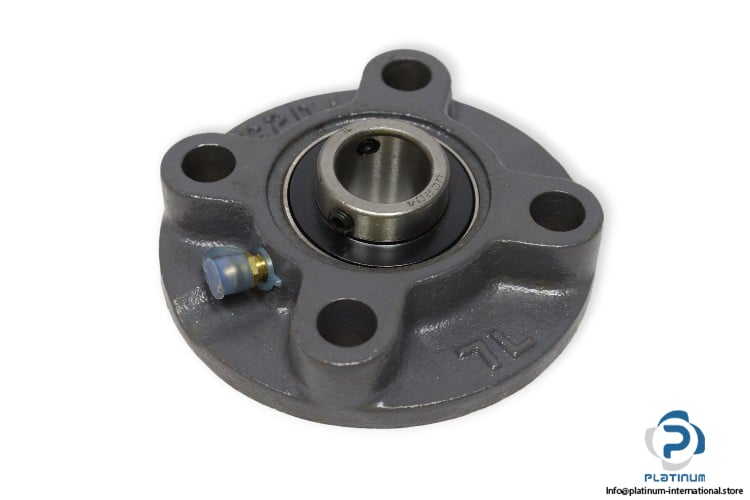

Translink UCFC204 Round Flange Ball Bearing Unit

Name: TRANSLINK UCFC204 ROUND FLANGE BALL BEARING UNIT
SKU: 1049010
Availability: LimitedAvailability

translink-UCFC204-round-flange-ball-bearing-unit-(new)-(carton)

translink-UCFC204-round-flange-ball-bearing-unit-(new)-(carton)-1

translink-UCFC204-round-flange-ball-bearing-unit-(new)-(carton)-2

translink-UCFC204-round-flange-ball-bearing-unit-(new)-(carton)-3

translink-UCFC206-round-flange-ball-bearing-unit-(new)-(carton)-4

New

In stock7 unitsReady to ship

Manufacturer:

Trans Link

Type:

Round flange ball bearing unit

Model:

UCFC 204

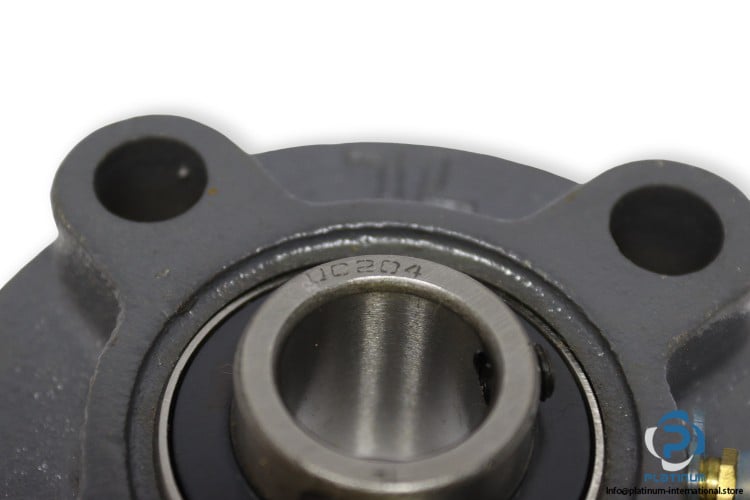

Bearing Number:

UC204

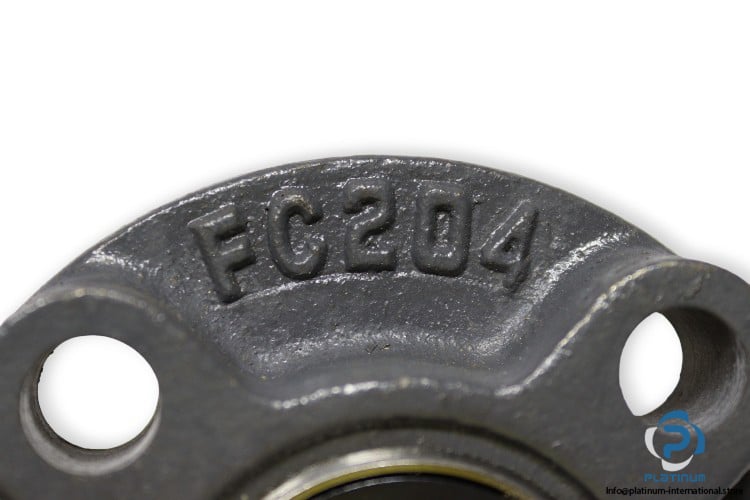

Housing Number:

FC204

Manufacturer

TRANSLINK

SKU

1049010

Category

Plummer Block Housing Units

Condition

New

20 bearing bearings Flange flanged Four-Bolt mm Pillow Round Translink Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Trans Link
Type: Round flange ball bearing unit
Model: UCFC 204
Bearing Number: UC204
Housing Number: FC204

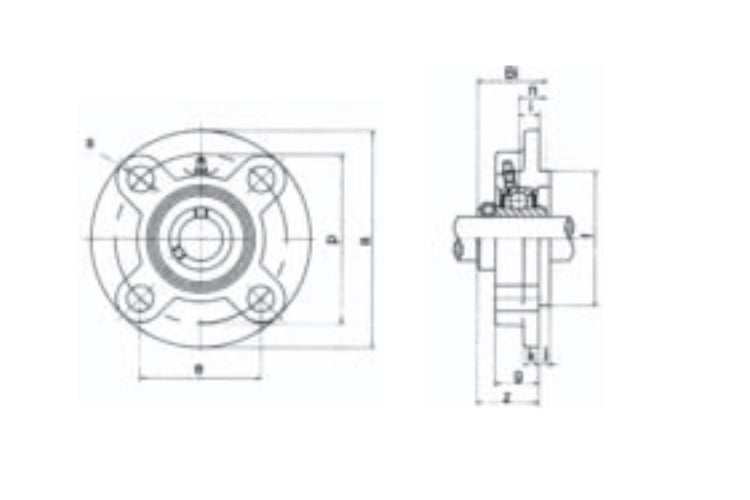

Dimensions
Bore Diameter d: 20 mm
Outside diameter a: 100 mm
Distance between attachment bolts e: 55.1 mm
Pitch diameter of attachment bolts p: 78 mm
Length of attachment bolt hole S: 12 mm
Width of inner ring Bi: 31 mm
Overall width Z: 28.7 mm
Locking Device: Set Screw
Material, housing: Cast iron
