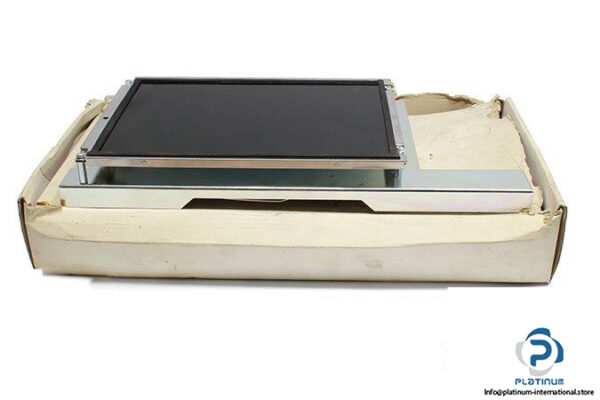

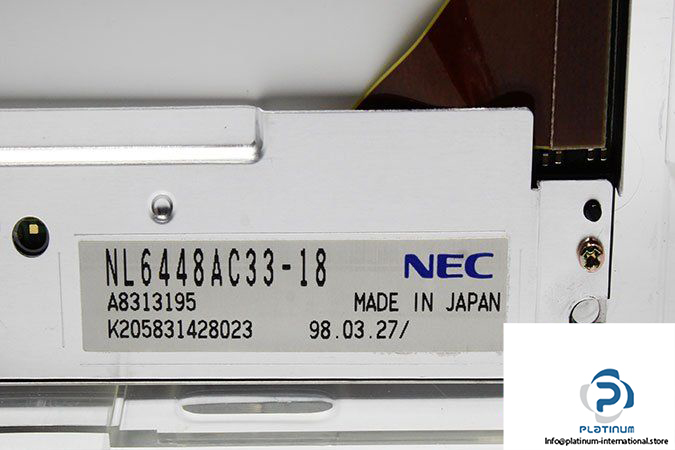

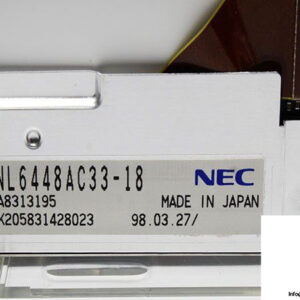

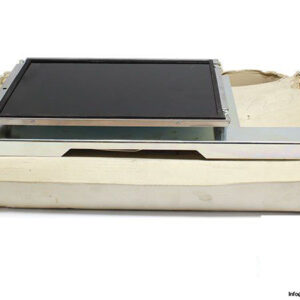

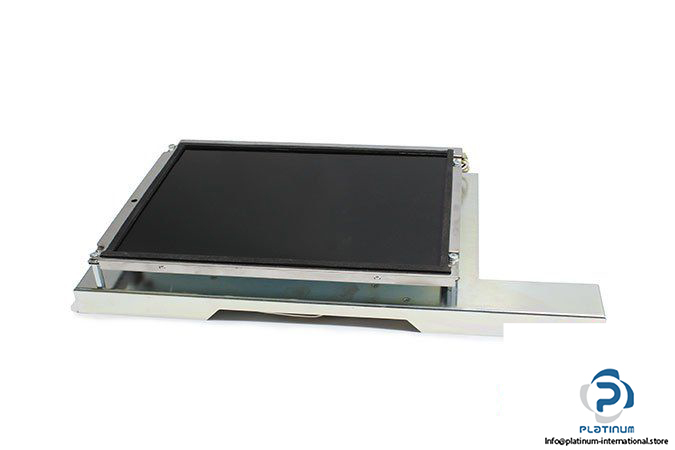

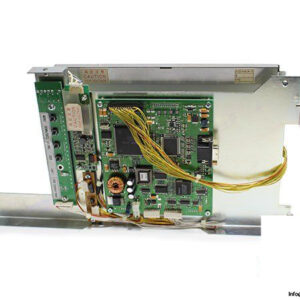

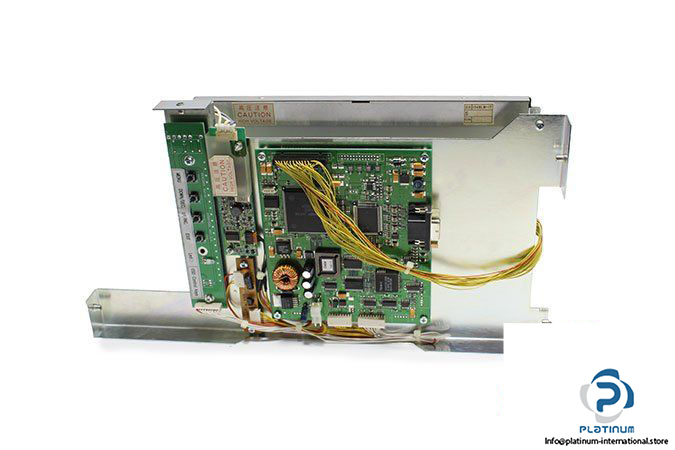

Manufacturer: NEC

Type: TFT Color LCD Module

Model: NL6448AC33-18

Part No.: A8313195



Applications:

• Personal computers (PC). Word processor
• Display terminals for control system
• Monitors for process controller

Supply Voltage: –0.3 … 6.5 V

Input Voltage: –0.3 … 6.5 V

Module Size: 243.0 ± 0.5 X 185.1 ± 0.5 X 11.0 mm

Display Area: 211.2 X 158.4 mm

Number of Pixels: 640 X 480 pixel

Dot Pitch: 0.11 X 0.33 mm

Pixel Pitch: 0.33 X 0.33 mm

Pixel Arrangement: RGB (Red, Green, Blue) vertical stripe

Operating Temperature: 0 … 50°C

Weight: 1.1 Kg
