Manufacturer: Nidec

Type: AC Servo Motors

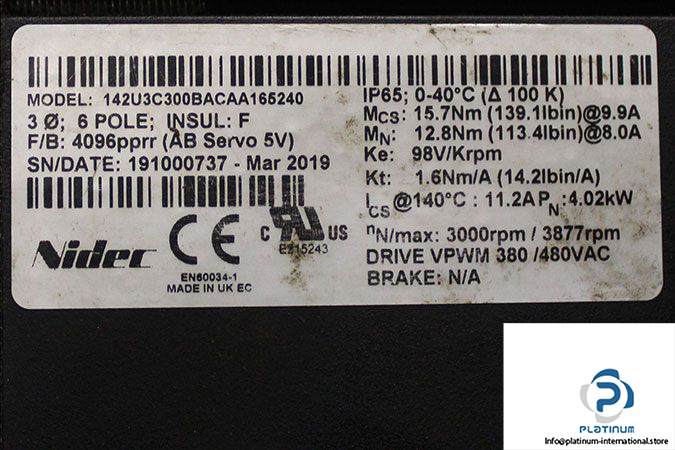

Model: 142 U3C300BACAA165240

Frame Size: 142

Stall Current [A]: 9.9

Rated Current [A]: 8.0

Rated Power [kW]: 4.02

Still Torque [Nm]: 15.7

Rated Torque [Nm]: 12.8

Rated Speed [rpm]: 3000

Max. Speed [rpm]: 3877

Constant Voltage [Vrms/krpm]: 98

Constant Torque [Nm/Arms]: 1.6

Number of Poles: 6

Ambient Temperature [°C]: 0-40

Protection Class [IP]: 65

Insulation Class: F

Weight [kg]: 14.865
