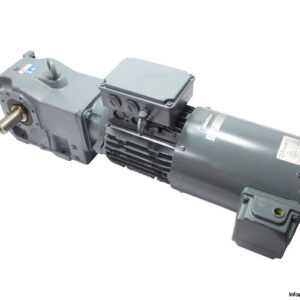

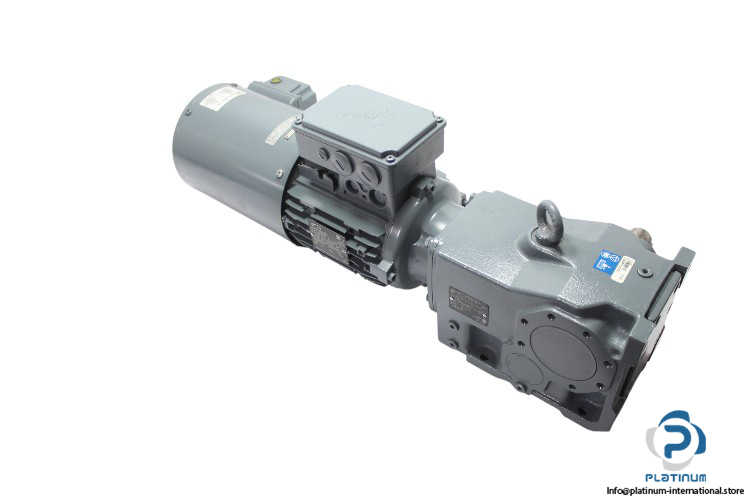

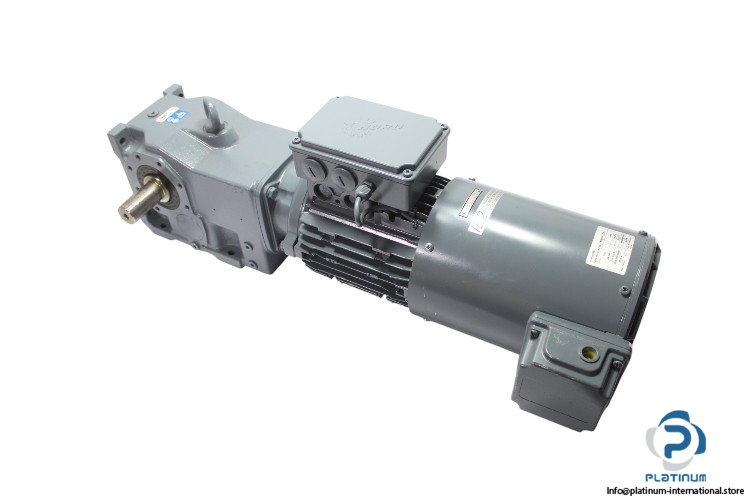

Nord SK90LA/4 BRE20 TF F RK1 Gear Motor

The Nord SK90LA/4 BRE20 TF F RK1 Gear Motor is a high-performance industrial motor designed for efficient power transmission. With an IP55 rating and thermal class F, this motor is reliable for heavy-duty applications, offering optimal torque and power efficiency.

Manufacturer: Nord

Model: SK90LA/4 BRE20 TF F RK1

Type: Gear Motor

Part No.: 44811695

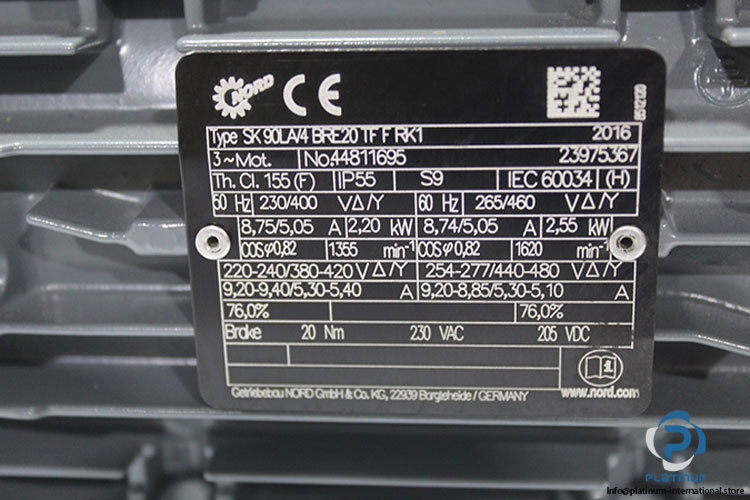

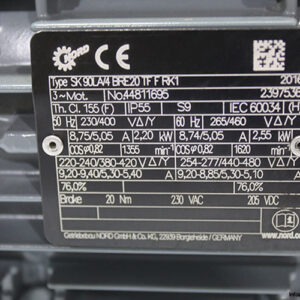

Technical Information:

• Rated Voltage at 50Hz [V]: 230/400, 220 to 240 / 380 to 420
• Rated Current [A]: 8.75/5.05 , 9.20 to 9.40/ 5.80 to 5.40
• Power [kW]: 2.20
• Speed [rpm]: 1355
• Power Factor Cos: 0.82
• Rated Voltage at 60Hz [V]: 265/460, 254 to 277/440 to 480
• Rated Current [A]: 8.74/5.05, 9.20 to 8.85/ 5.30 to 5.10
• Rated Power [kW]: 2.55
• Rated Speed [rpm]: 1620
• Power Factor Cos: 0.82
• IP Rate: IP55
• Thermal Class: F
• Duty: S9
• Brake Torque: 20 Nm
• Brake Voltage: 230 V AC, 205 V DC
• Efficiency: 76 %

Attachments:

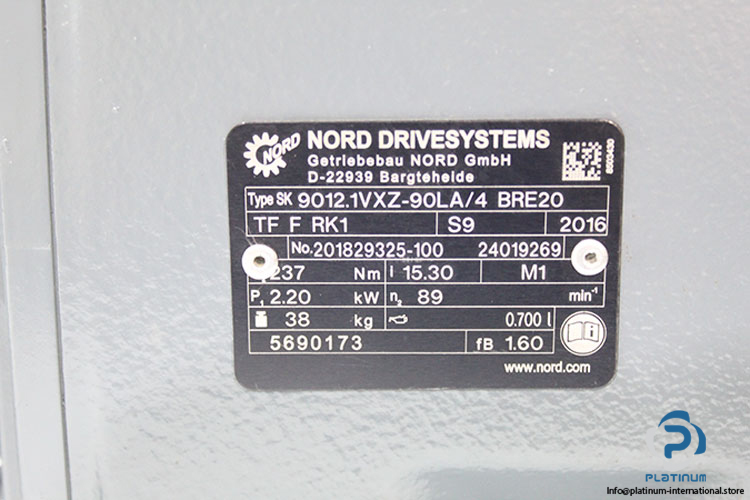

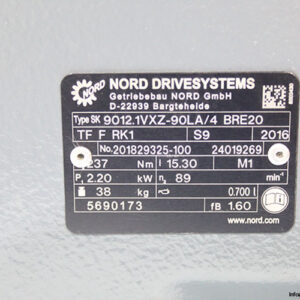

Attachment 1: Nord SK 9012.1VXZ-90LA/4 BRE20 TF F RK1 Gear

• Manufacturer: Nord
• Model: SK 9012.1VXZ-90LA/4 BRE20 TF F RK1
• Part No.: 24019269/ 201829325-100
• Code: 5690173
• Ratio: 15.30
• Speed [rpm]: 89
• Power [kW]: 2.20
• Torque: 237 Nm
• Duty: S9
• Service Factor: 1.60

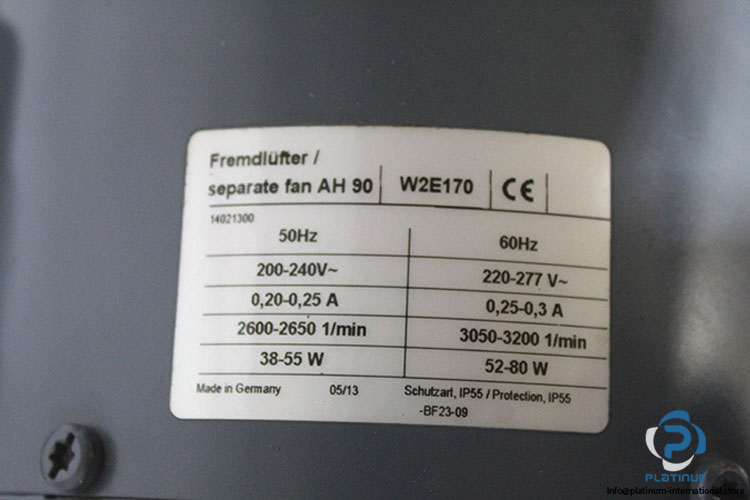

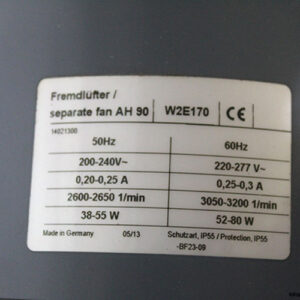

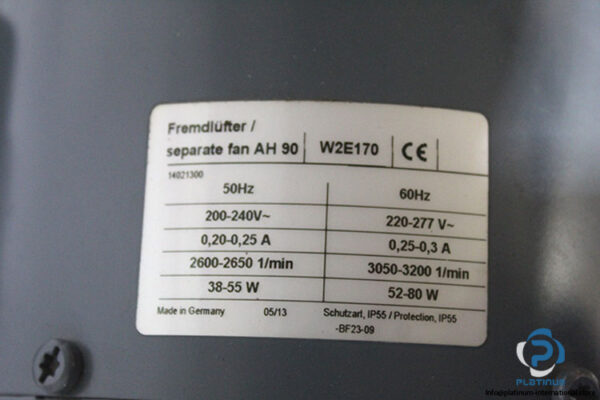

Attachment 2: Nord W2E170 Fan

• Manufacturer: Nord
• Model: W2E170
• Part No.: 14021300
• Rated Voltage at 50Hz [V]: 200 to 240
• Rated Current [A]: 0.20 to 0.25
• Power [W]: 38 to 55
• Speed [rpm]: 2600 to 2650
• Rated Voltage at 60Hz [V]: 220 to 277
• Rated Current [A]: 0.25 to 0.3
• Rated Power [W]: 52 to 80
• Rated Speed [rpm]: 3050 to 3200

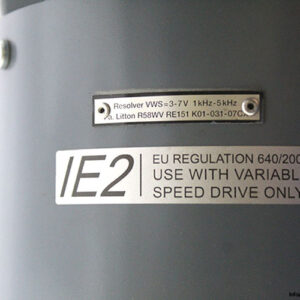

Attachment 3: Nord VWS=3-7V Resolver

• Manufacturer: Nord
• Model: VWS=3-7V
• Frequency: 1 kHz to 5 kHz
