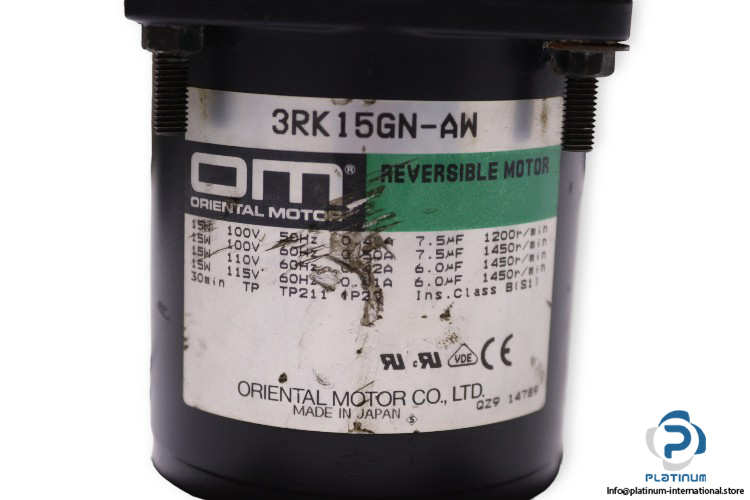

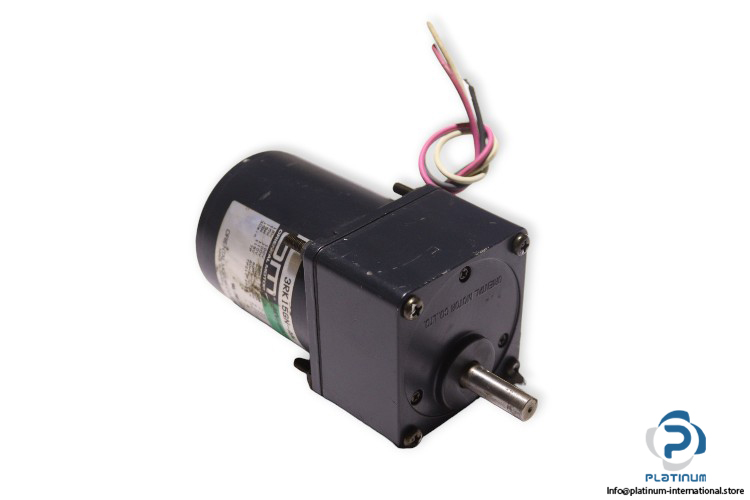

Oriental Motor 3RK15GN-AW Reversible Motor

Manufacturer: ORIENTAL MOTOR
Type: REVERSIBLE MOTOR, Single-Phase, 30 Minutes Rating
Model: 3RK15GN-AW

Frame Size: 70mm
Power: 15 W
At Voltage 100
Current: 0.40/0.50 A
Speed: 1200/1450 rpm
Frequency: 50-60 Hz
Capacitor: 7.5 μF

At Voltage 110
Current: 0.42 A
Speed: 1450 rpm
Starting Torque: 100 mN.m
Rated Torque: 105 mN·m
Frequency: 60 Hz
Capacitor: 6 μF

At Voltage 115
Current: 0.41 A
Speed: 1450 rpm
Frequency: 60 Hz
Capacitor: 6 μF

Duty: S1 Cont.
Protection Class: IP 20
Thermal Class: B

ATTACHMENT:

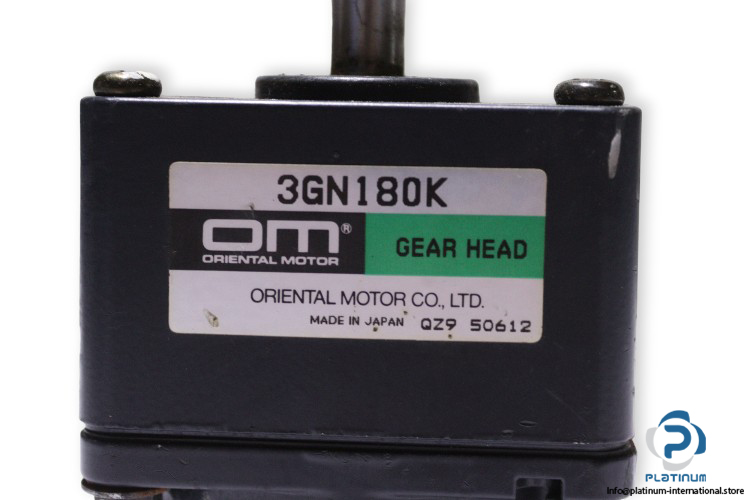

ORIENTAL MOTOR 3GN180K Parallel Shaft Gearhead

Gear head Model: 3GN180K
Shaft/Gear Type: Parallel Shaft Gearhead
Frame Size: 2.76 in
Gear Ratio: 180 :1
Output Shaft Diameter: 10 mm
