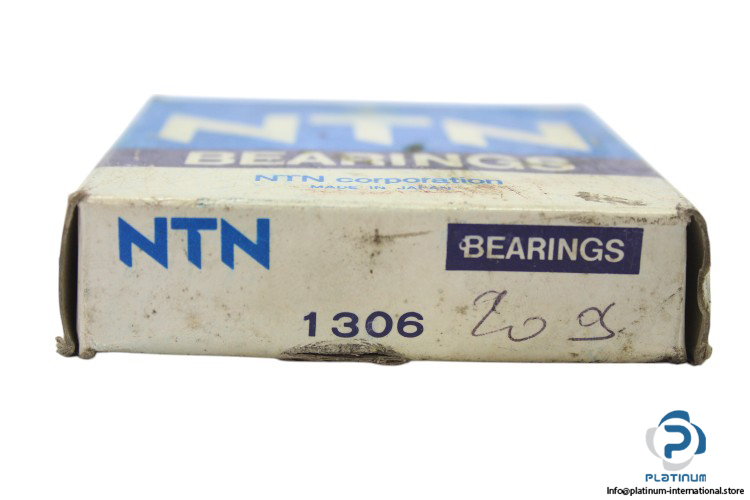

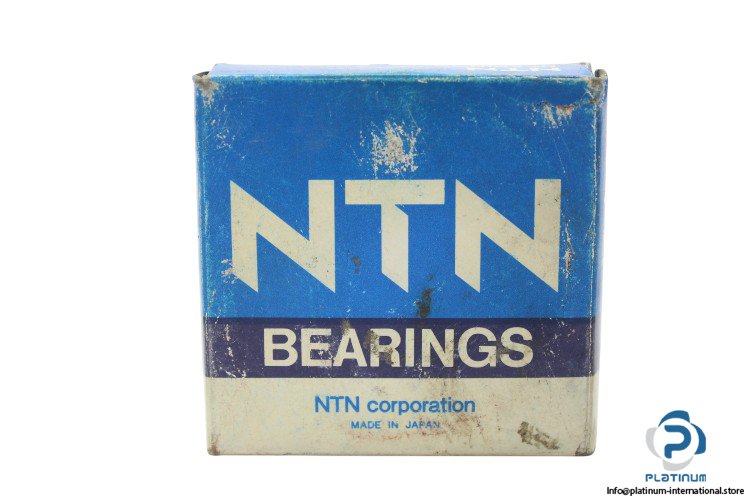

NTN 1306 Self-Aligning Ball Bearing
The NTN 1306 Self-Aligning Ball Bearing is designed to accommodate misalignment, reduce friction, and extend service life in high-speed industrial applications. Engineered with high dynamic and static load capacities, it delivers reliable performance under demanding operational conditions.
Manufacturer: NTN
Type: Self-Aligning Ball Bearing
Model: 1306
Technical Information:
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 72 mm
- Width: 19 mm
- Dynamic Load Rating: 20.9 kN
- Static Load Rating: 6.3 kN
- Fatigue Load Limit: 0.29 kN
- Limiting Speed: 13000 tr/min
- Reference Speed: 8800 tr/min
