Manufacturer: NTN
Type: Pillow Block Ball Bearing Unit
Model: M-UCP 207D1
Bearing Number: UC207D1
Housing Number: P207D1

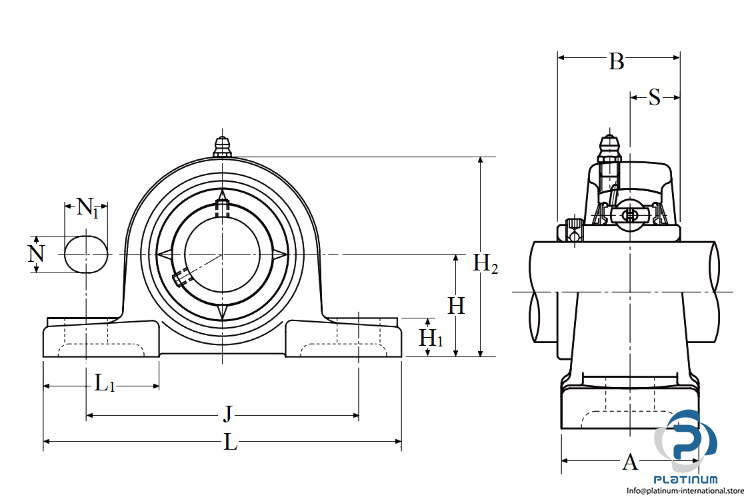

Dimensions
Bore Diameter d: 35 mm
Overall length L: 167 mm
Overall height H2: 93 mm
Base width A: 48 mm
Height of spherical seat center H: 47,6 mm
Distance Between Attachment Bolts J: 127 mm
Diameter of attachment bolt hole N: 17 mm
Length of attachment bolt hole N1: 20 mm
Width of Inner Ring B: 42.9 mm
Foot height H1: 18 mm
Basic Load Rating:
Dynamic Cr: 25700 N
Static C0r: 15300 N
Rotational Speed [Max]: 4200 rpm
Bore type: Cylindrical bore
Locking Device: Set Screw
Seal Type: Contact
