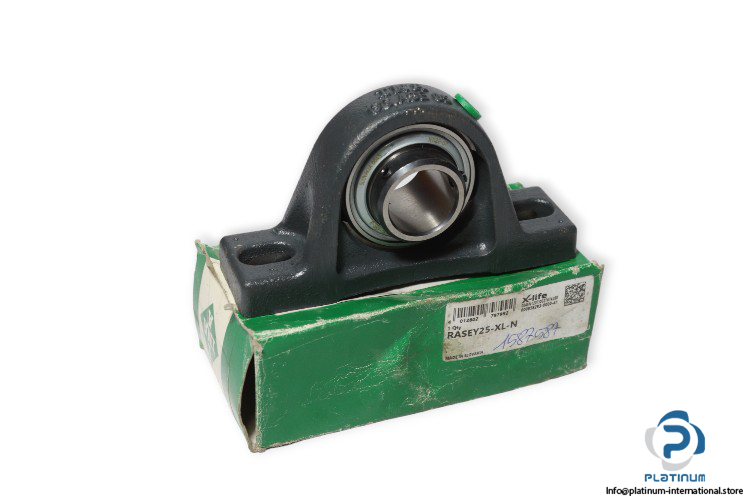

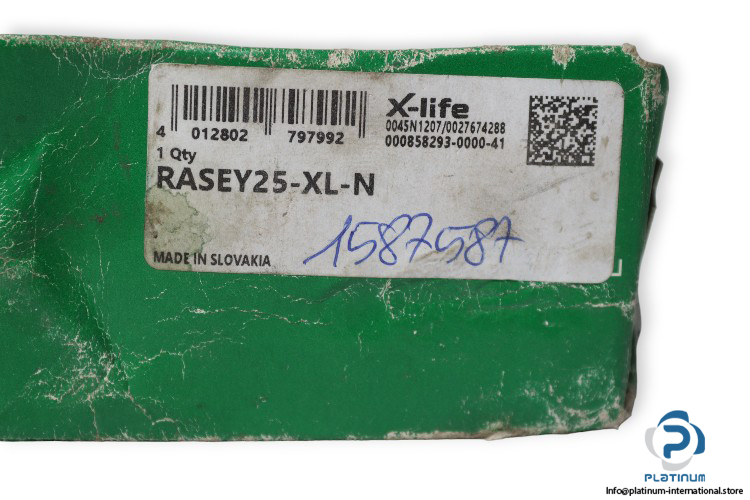

INA RASEY25-XL-N Plummer Block Housing Unit

Manufacturer: Schaeffler INA
Type: Plummer block housing unit
Model: RASEY25 XL N
Replaces: RASEY25-N

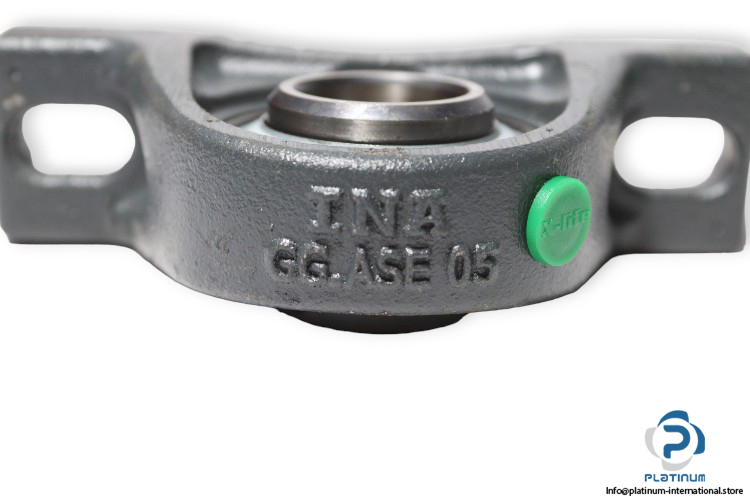

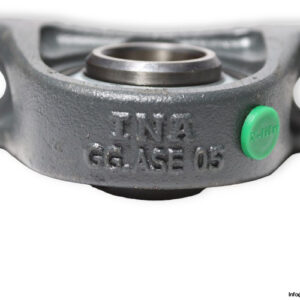

Housing: GG. ASE05

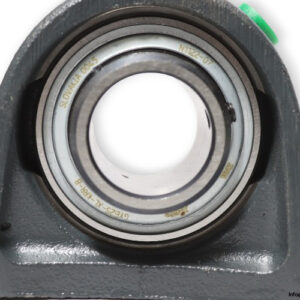

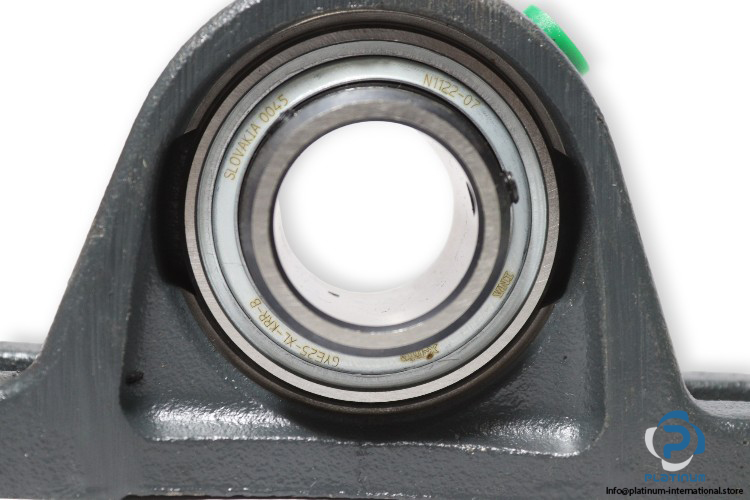

Bearing designation: GYE25-XL-KRR-B

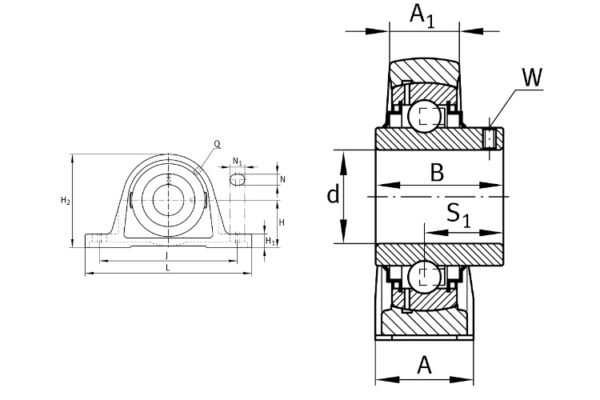

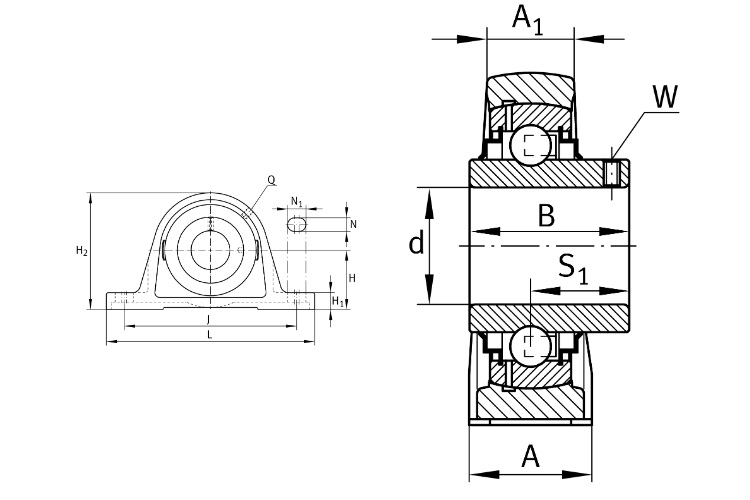

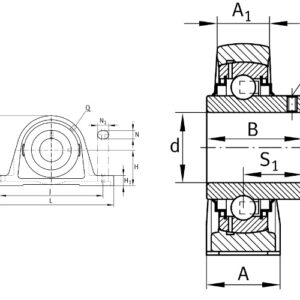

Dimensions
Bore Diameter d: 25 mm
Overall length L: 130 mm
Hight H2: 70 mm
Distance fixing bore J: 102.5 mm
Distance shaft axis H: 36.5 mm
width (Slot) N: 11 mm
Length (slot ) N1: 19 mm
Width (base) A: 36 mm
Connection thread for lubrication: M6
Groove: N, Cast iron housing with undercut slot for end caps
Locking device: eccentric locking collar
Material: GG, Grey cast iron
Protecting cap: KASK05
