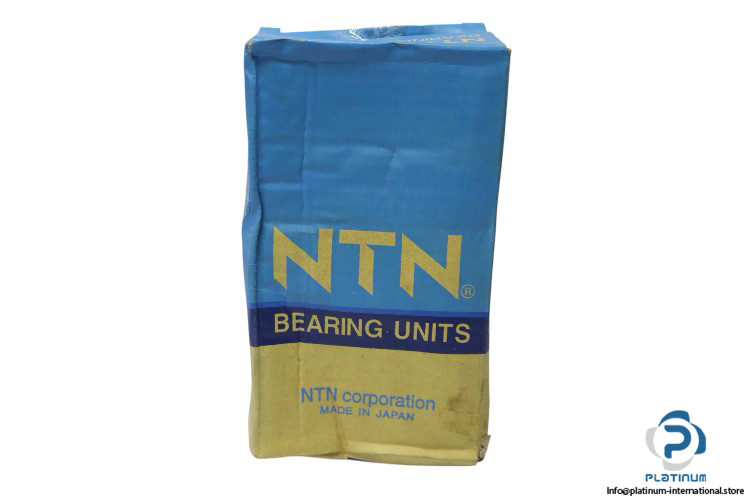

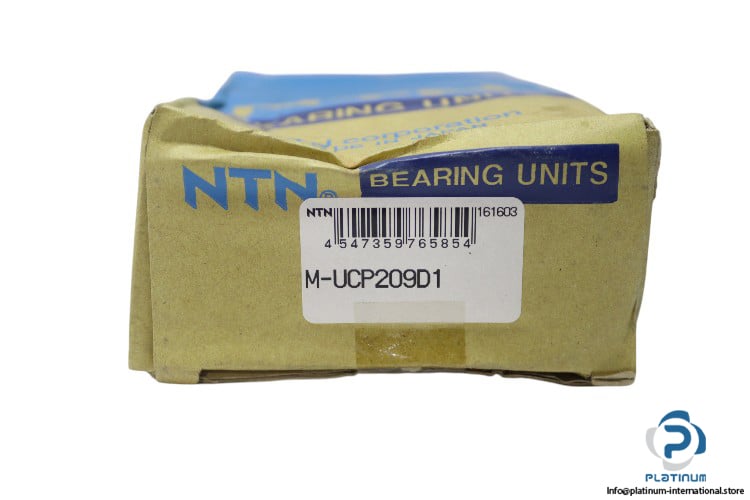

NTN M-UCP209D1 Pillow Block Ball Bearing Unit
The NTN M-UCP209D1 Pillow Block Ball Bearing Unit offers reliable performance and high load capacity for a variety of industrial applications. With robust construction and precise load ratings, this bearing unit ensures smooth and efficient operation.
Manufacturer: NTN
Type: Pillow Block Ball Bearing Unit
Model: M-UCP209D1
Bearing Number: UC209D1
Housing Number: P209D1
Technical Information:
- Bore Diameter (d): 45 mm
- Overall Length (L): 190 mm
- Overall Height (H2): 106 mm
- Width of Inner Ring (B): 49.20 mm
- Height of Spherical Seat Center (H): 54 mm
- Distance Between Attachment Bolts (J): 146 mm
- Foot Height (H1): 20 mm
- Dynamic Load Rating (Cr): 32500 N
- Static Load Rating (C0r): 20400 N
- Locking Device: Set Screw
