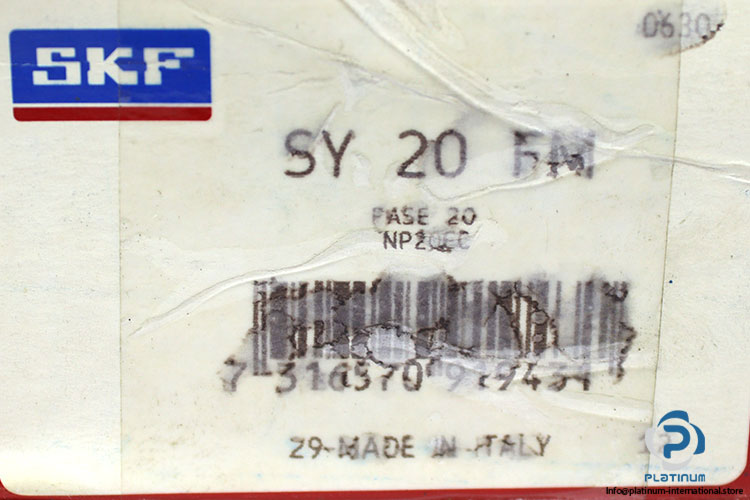

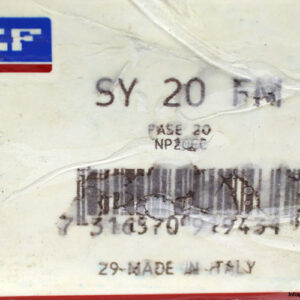

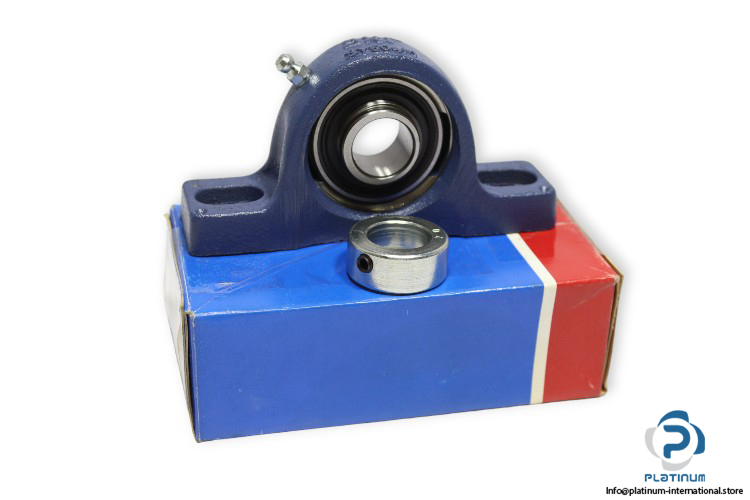

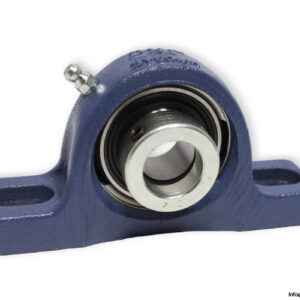

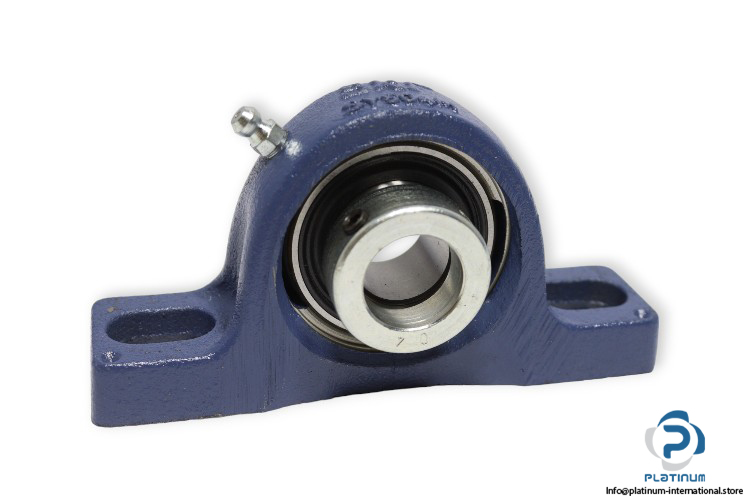

SKF SY 20 FM Pillow Block Ball Bearing Unit

Manufacturer: SKF
Type: Pillow block ball bearing unit
Model: SY20 FM

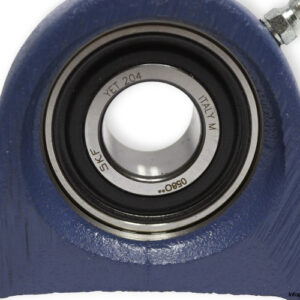

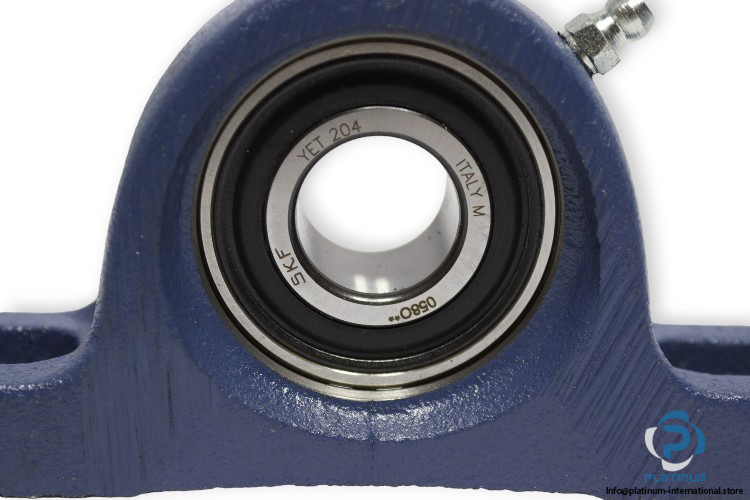

Bearing No.: YET 204

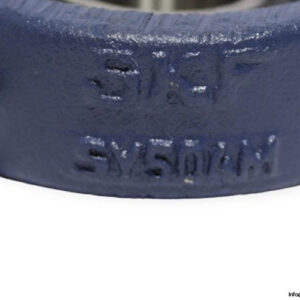

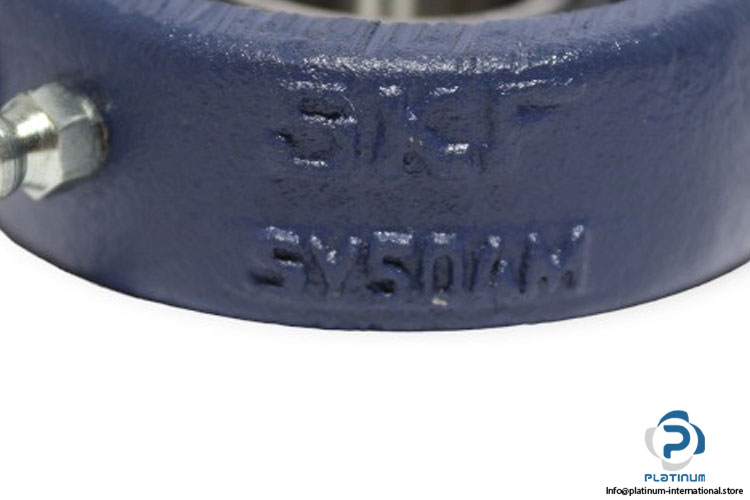

Housing No.: SY 504M

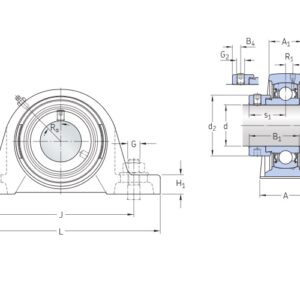

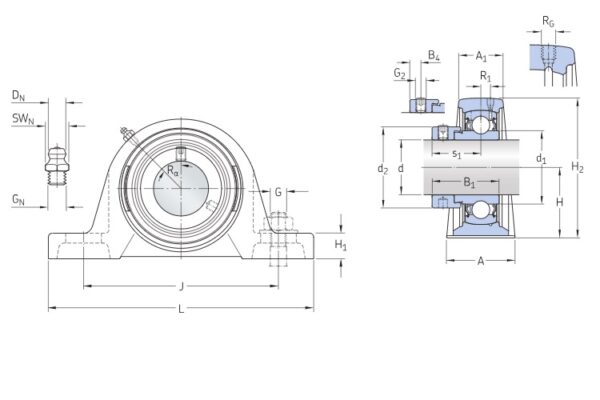

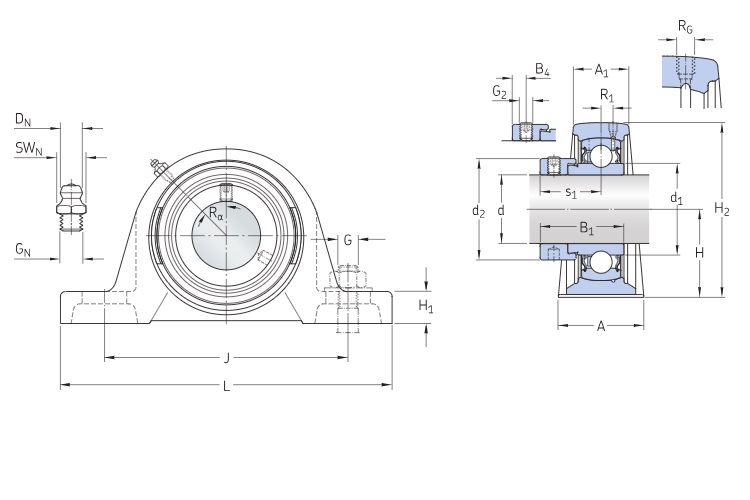

Dimensions
Bore Diameter d: 20 mm
Base width A: 32 mm
Height of spherical seat center H: 33.3 mm
Distance of attachment bolts J: 97 mm
Overall length L: 127 mm
Overall height H2: 64.5 mm
Basic dynamic load rating: 12.7 kN
Basic static load rating: 6.55 kN
Fatigue load limit: 0.28 kN
Limiting Speed: 8500 rpm
Material, housing: Cast iron
Sealing, bearing: Contact seal on both sides
