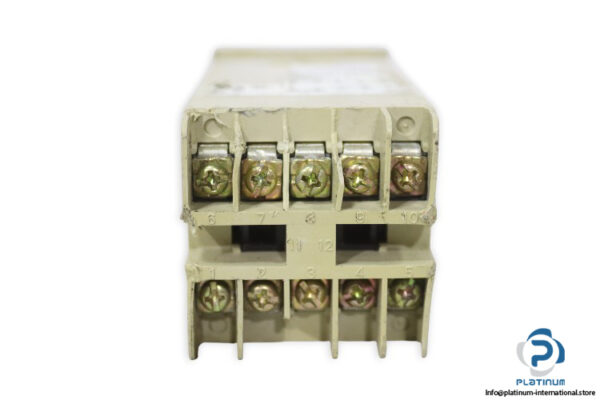

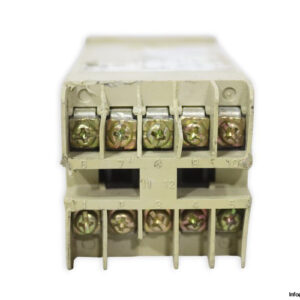

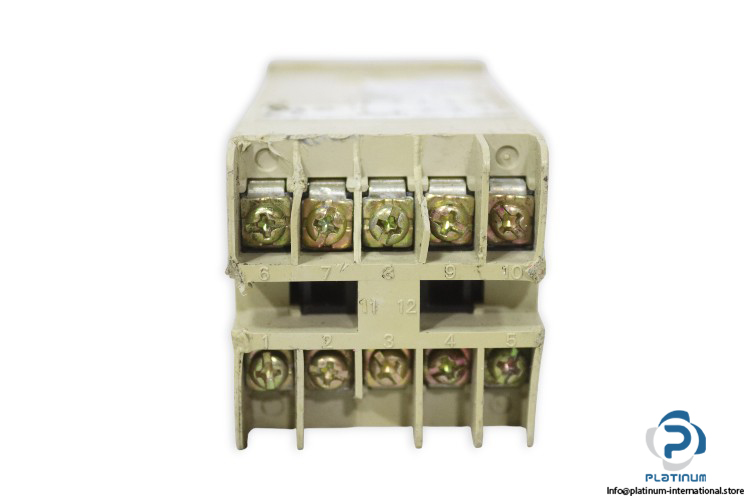

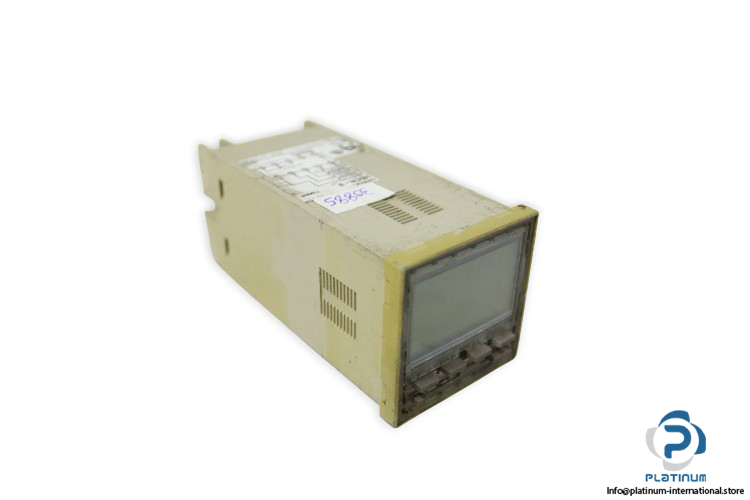

Omron H5BR-B Multifunction Digital Timer

The Omron H5BRB Multifunction Digital Timer is a precise and versatile control device designed for advanced timing operations in industrial automation. With multiple input signals, clear LCD backlit display, and flexible timing modes, it delivers accurate and efficient control for a wide range of applications.

Manufacturer: Omron
Type: Multifunction Digital Timer
Model: H5BR-B

Technical Information

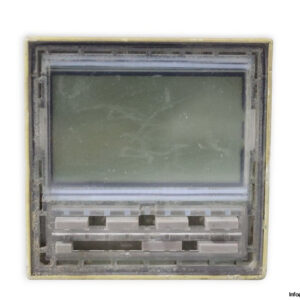

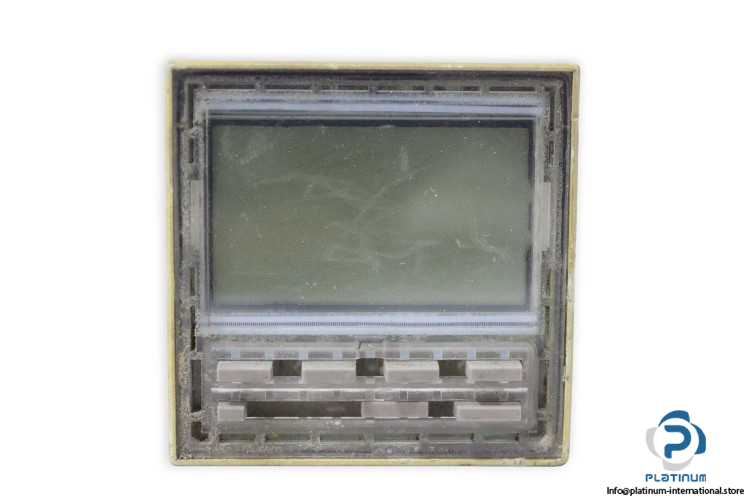

• Display: LCD Backlit
• Digits No.: 4
• Input Signals: Start, Reset, Gate, Batch Count Reset, Key Protect Inputs
• Input Method: No-Voltage Input: Via Opening and Closing of Contact
• Display Modes: Elapsed Time (UP), Remaining Time (DOWN)
• Supply Voltage: 100 / 240 V AC
• Frequency: 50 / 60 Hz
• Power Consumption: 5 VA
• Time Settings Max.: 9.999 s
• Contact: SPDT 1 Changeover (CO)
• Rated Contact Voltage: 250 V AC
• Rated Contact Current: 5 A
• Protection Class: IP54
• Ambient Temperature: -10 / 55 °C
• Dimensions: 72 x 72 x 100 mm
