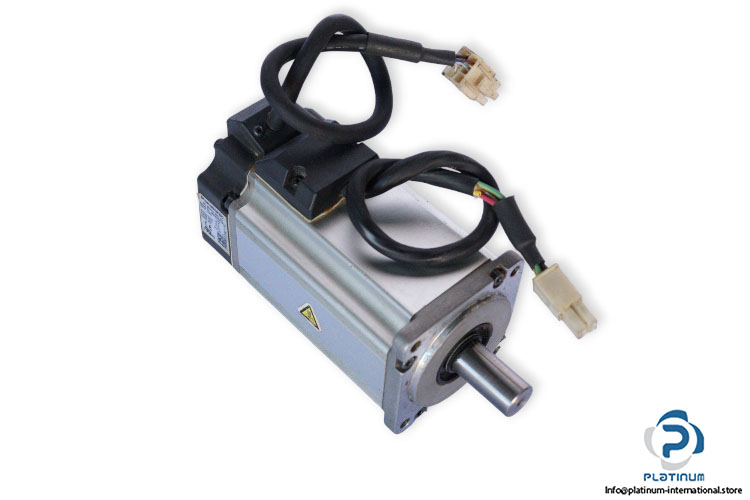

PANASONIC MHMD042G1C AC SERVO MOTOR

The Panasonic MHMD042G1C AC Servo Motor is engineered for high-performance motion control applications, offering precise speed and torque control with exceptional efficiency. Ideal for demanding industrial environments, it delivers powerful output and high-resolution feedback for seamless integration in automation systems.

Manufacturer: Panasonic
Type: AC Servo Motor

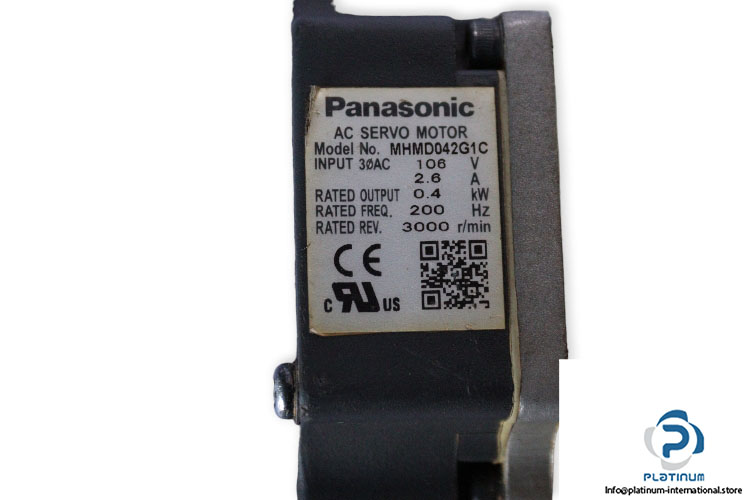

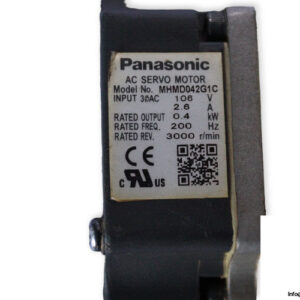

Model: MHMD042G1C
Serial Number: 11051311N

Technical Information

• Power Supply: 0.9 KVA
• Rated Voltage: 106 V AC
• Current Consumption: 2.6 A

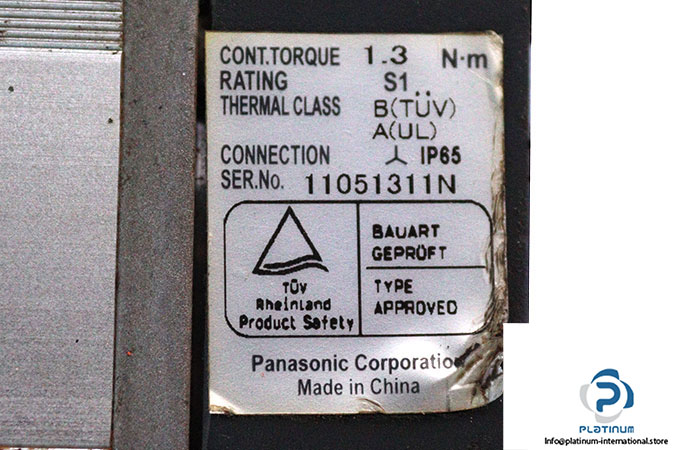

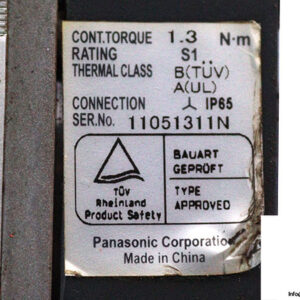

• Continuous Torque: 1.3 Nm
• Rated Output: 0.4 kW
• Rated Frequency: 200 Hz
• Rated Speed: 3000 r/min
• Maximum Peak Torque: 3.8 Nm
• Maximum Current: 11 A
• Maximum Speed: 5000 r/min
• Moment of Inertia (without brake): 0.67 kgm² × 10»´
• Duty: S1
• Thermal Class: B (TUV), A (UL)
• Protection Class: IP65
• Encoder: Incremental
• Pulse Count: 20 bit
• Resolution: 1,048,576
• Wires: 5
