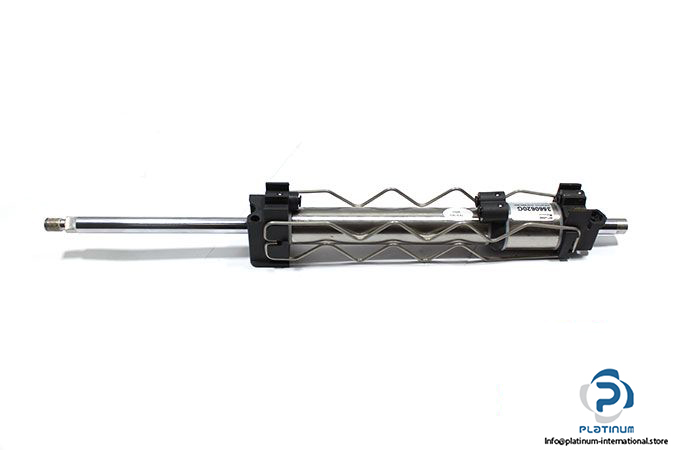

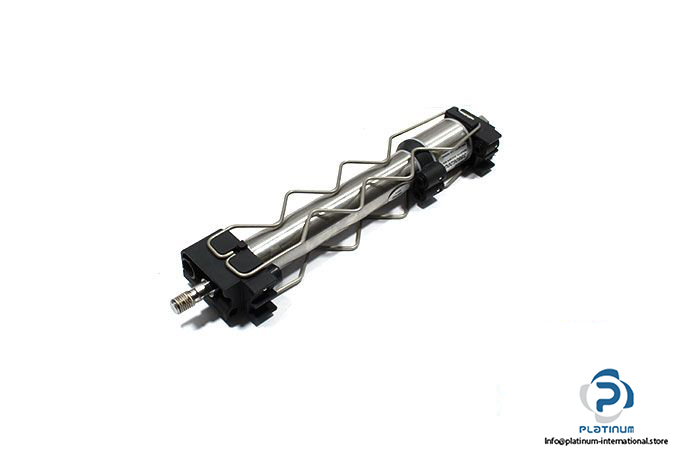

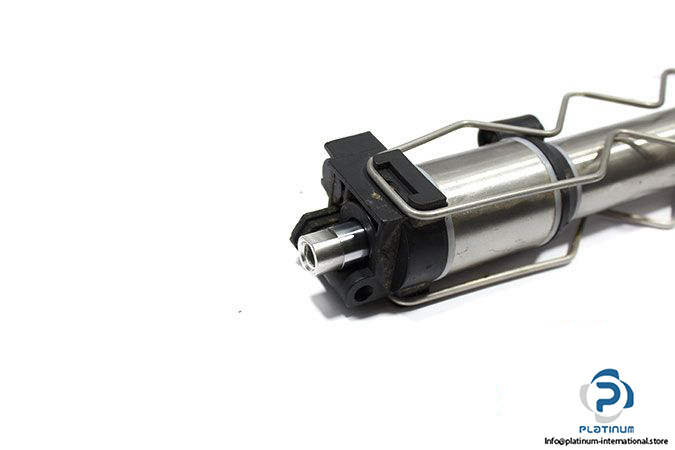

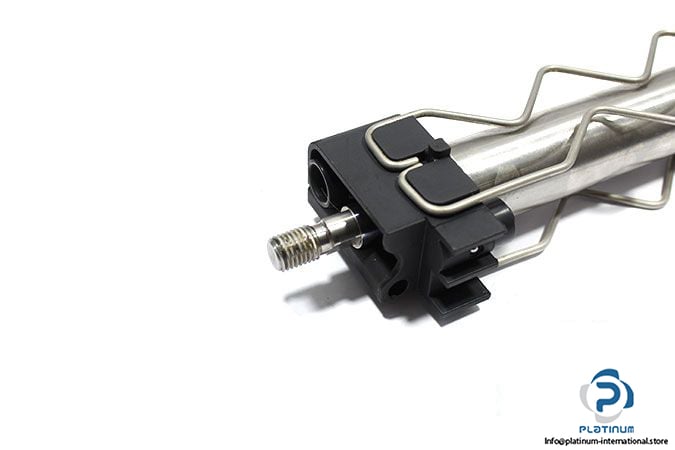

PARKER 3560620G DUPLEX CYLINDER
The PARKER 3560620G Duplex Cylinder is a precision-engineered pneumatic actuator designed for multi-stage motion in compact automation systems. Constructed from durable aluminum, this cylinder operates efficiently within a wide temperature range, delivering reliable performance in demanding industrial environments.
Manufacturer: PARKER
Type: Duplex Cylinder
Model: 3560620G
Technical Information
- Stage 1 Bore Diameter: 32 mm
- Stage 1 Rod Diameter: 12 mm, Female
- Stage 1 Stroke: 20 mm
- Stage 2 Bore Diameter: 25 mm
- Stage 2 Rod Diameter: 12 mm, Male
- Stage 2 Stroke: 110 mm
- Pneumatic Connections: 4 mm
- Temperature Range: 0 to 60 °C
- Material: Aluminum
