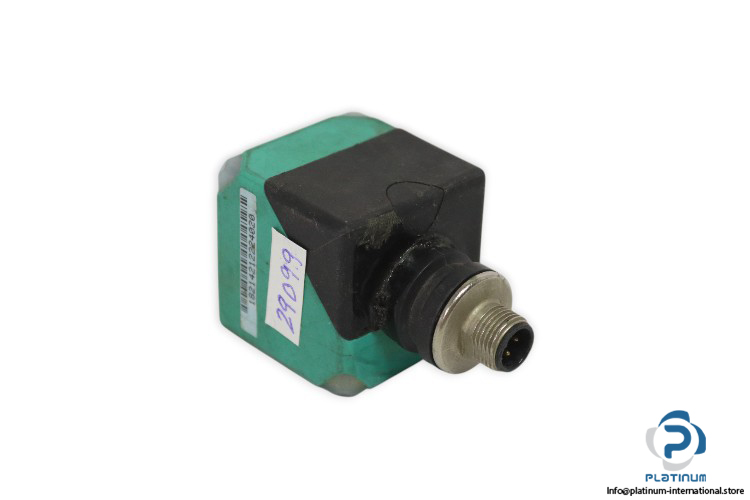

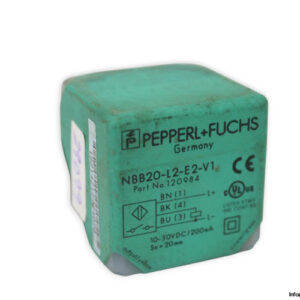

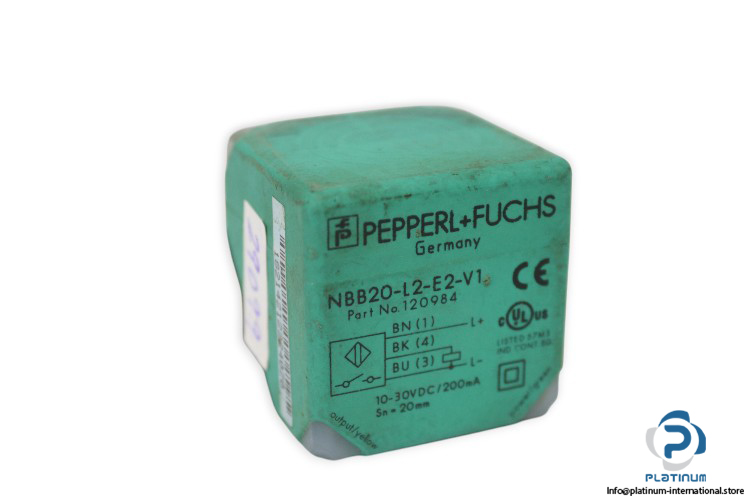

Pepperl+Fuchs NBB20L2E2V1 Inductive Sensor

The Pepperl+Fuchs NBB20L2E2V1 from the VariKont L series is a robust inductive sensor designed for precise detection in industrial automation systems. With a long sensing range, high protection rating, and durable housing, it ensures reliable operation even in harsh environments.

Manufacturer: Pepperl+Fuchs
Series: VariKont L
Type: Inductive Sensor
Model: NBB20L2E2V1
Part No.: 120984
Alternative Part No.: 43288S

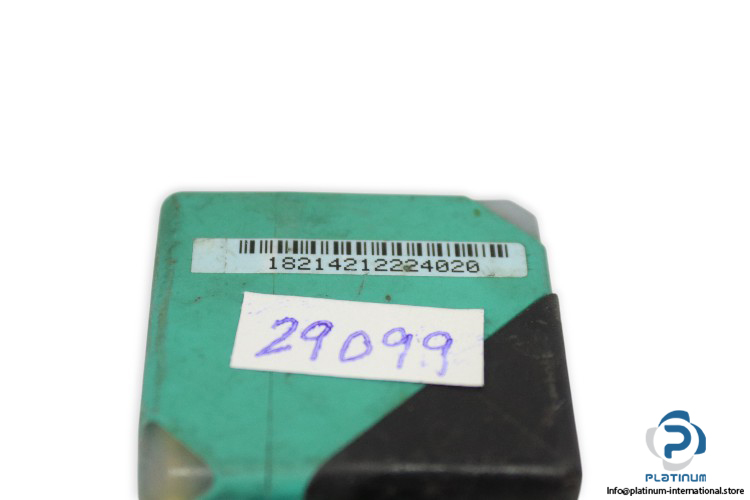

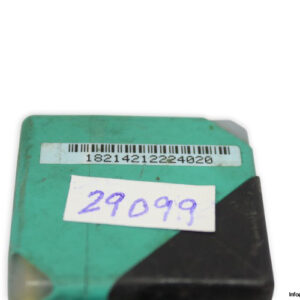

SN: 18214212224020

Technical Information

• Rated Operating Distance: 20 mm
• Assured Operating Distance: 0 / 16.2 mm
• Actual Operating Distance: 18 / 22 mm
• Operating Voltage: 10 / 30 V DC
• Operating Current: 0 / 200 mA
• Switching Frequency: 0 / 440 Hz
• Electrical Design: PNP
• Switching Output: Normally Open

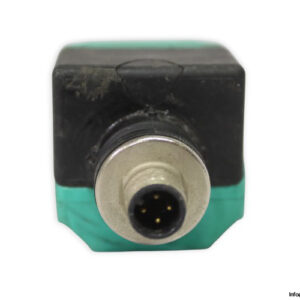

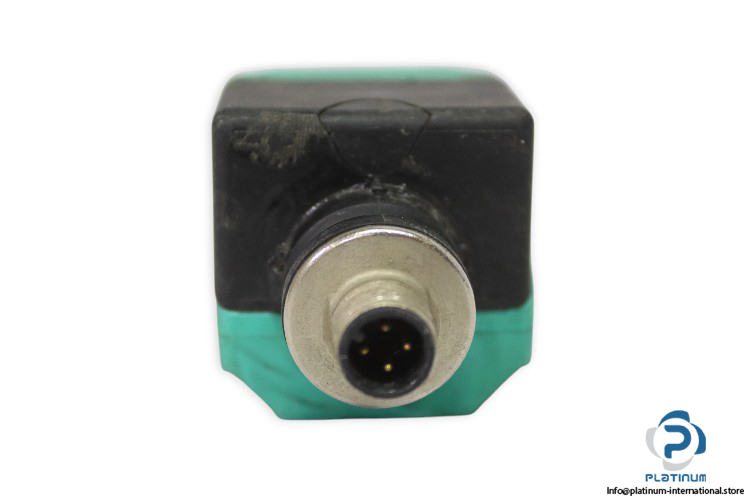

• Connector Type: M12 Connector, 4-Pin
• Protection Class: II
• Degree of Protection: IP69K
• Ambient Operating Temperature: -25 / 85°C
• Dimensions: 40 x 40 x 55 mm
• Housing Material: PA
• Sensing Face Material: PA
• Mounting: Flush-Mountable
