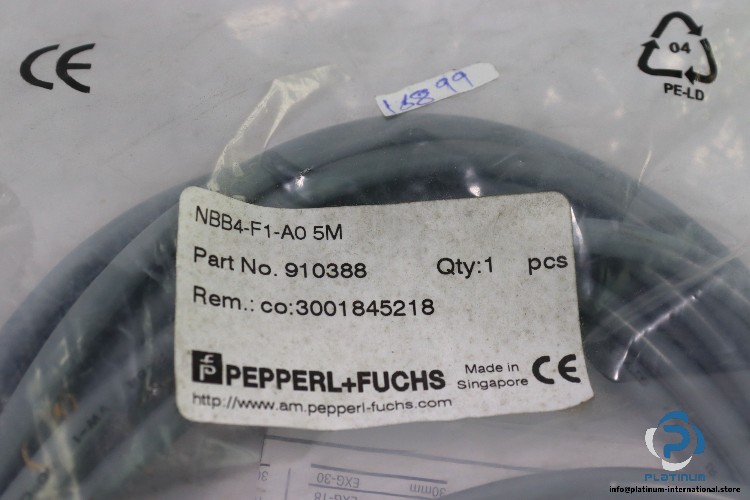

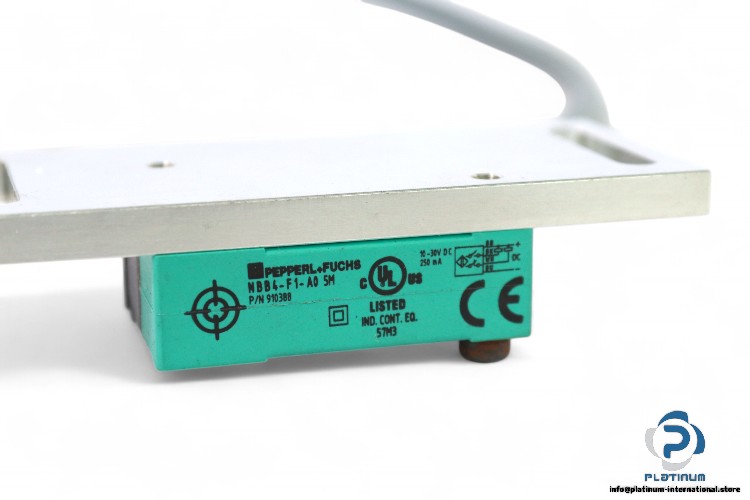

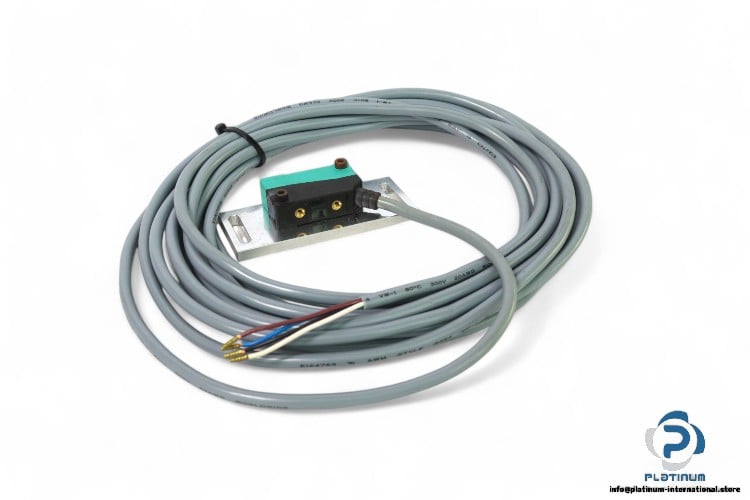

Pepperl+Fuchs NBB4-F1-A05M Inductive Sensor
Manufacturer: Pepperl+Fuchs
Type: INDUCTIVE SENSOR
Model: NBB4-F1-A05M
Part No.: 910388
Rated Operating Distance Sn: 4 mm
Assured Operating Distance: 0 … 3.24 mm
Operating Voltage: 10 … 30 V DC
Output type: 4-wire
Operating Current: 0 … 250 mA
Switching Frequency: 0 … 1400 Hz
Output type: NPN
Connector Type: cable PVC , 5 m
Enclosure Rating: IP67
Ambient Operating Temperature: -25 … 70°C
Dimensions: 26 x 12 x 40 mm
Housing Material: PA, green
Sensing Face Material: PA
Tightening torque, fastening screws: Threading M3 max: 1.1 Nm
