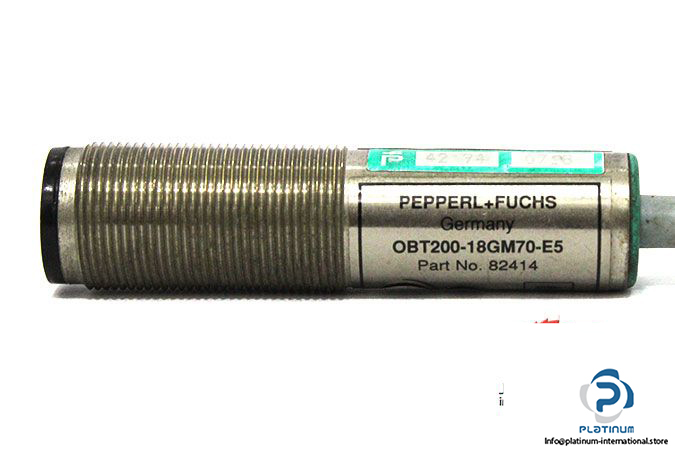

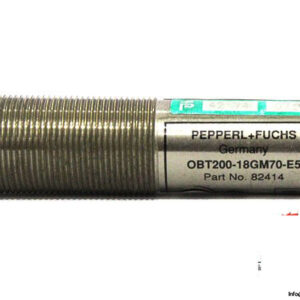

Manufacturer: Pepperl+Fuchs
Type: Diffuse Mode Sensor
Model: OBT200-18GM70-E5
Part No: 82414
Effective Detection Range: 0 … 200 mm
Operating Voltage: 10 … 30 V DC
Switching Current: ≤ 100 mA
No-Load Supply Current I0: ≤ 25 mA
Voltage Drop Ud: ≤ 2.5 V
Signal Output: PNP
Switching Type: Light on / Dark on
Switching Frequency f: 500 Hz
Control Elements: Sensing Range Adjuster
Light Source: IRED , 880 nm
Protection Degree: IP67
Ambient Temperature: -25 … 55 °C
Material: Housing: Brass, Nickel-Plated, Optical Face: PC

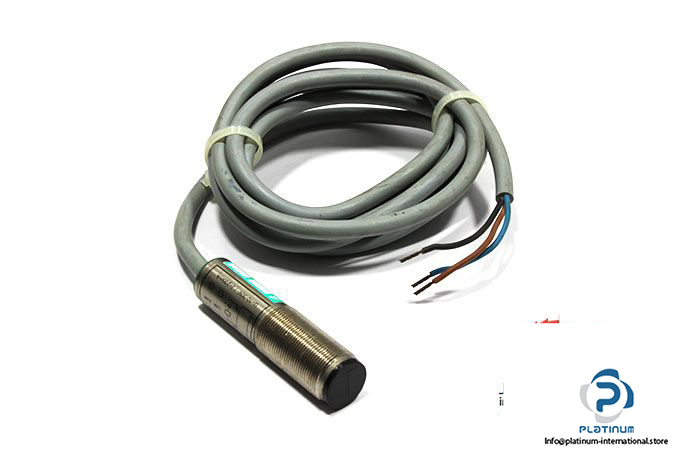

Connection: Cable 2 m, 3 Wire
Diameter, Length: 18, 70 mm
Weight: 0.016 kg
