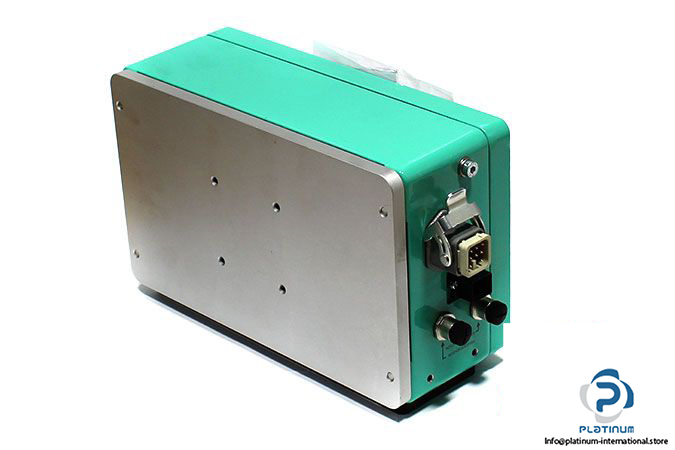

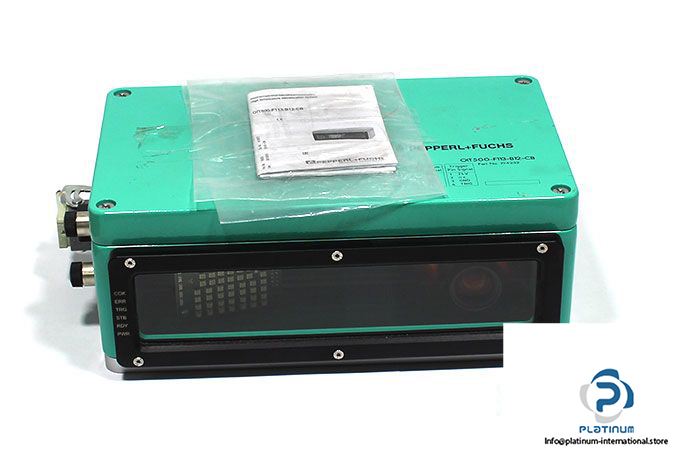

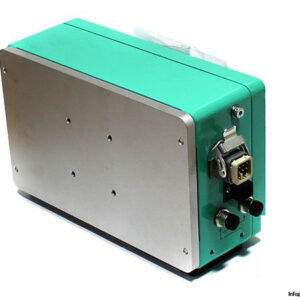

Manufacturer: Pepperl + Fuchs
Type: High Temperature Identification System
Model: OIT500-F113-B12-CB
Part No: 194232
Features
- High-temperature code carrier up to
- 500 °C (932 °F)
- Sturdy and compact design
- Integrated illumination
- High operating range
- Large sensing range
- High depth of focus
Input
Voltage: to be applied externally 24 V ± 15% PELV
Number/Type: 1 trigger input 2 control unit inputs, optically decoupled
Input Current: approx. 1 mA at 24 V DC
Output
Number/Type: 1 electronic output, PNP, optically decoupled
Switching Voltage: to be applied externally 24 V ± 15 % PELV
Switching Current: 100 mA each output
Operating Voltage: 24 V DC ± 15%, PELV
Operating Current: 250 mA without output drivers
Read Distance: 200…450 mm
Evaluation Frequency: 5 Hz
Depth of Focus: ± 50 mm
Reading Field: 330 mm x 250 mm at max. read distance
Physical: Ethernet
Protocol: TCP/IP
Transfer Rate: 100 MBit/s
Ambient Temperature: 0…45 °C

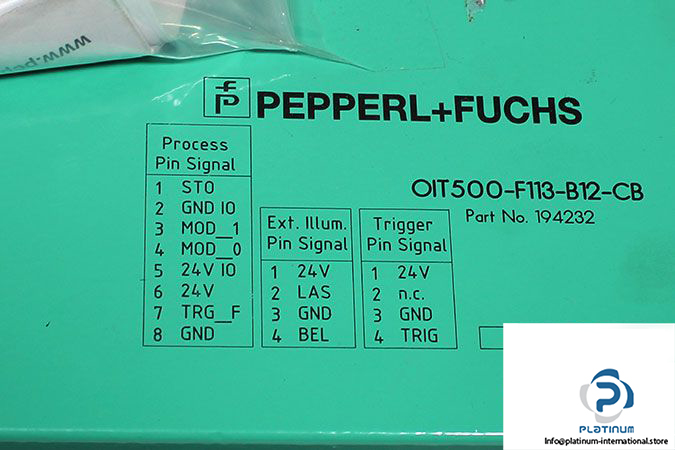

Connection
- 8-Pin Harting HAN
- RJ-45
- 2 X 5-Pin M12 Socket
- Supplied Ferrite Sleeve for Suppression of The Ethernet Cable
Protection Class: IP64
Material: Diecast Aluminum Powder Coated
Dimensions: 260 x 265 x 100 mm
Weight: 4.46 kg
