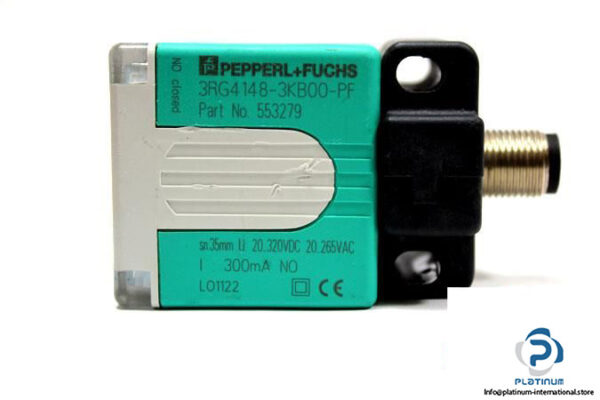

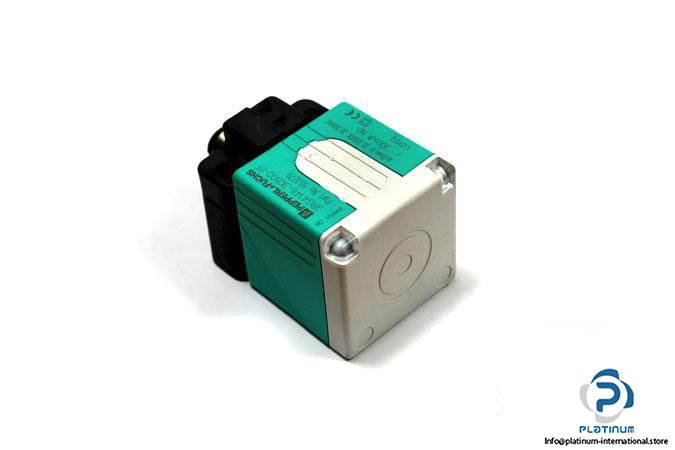

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: 3RG41483KB00PF

Part No.: 553279

Rated operating distance: 35 mm

Assured operating distance: 28 … 35 mm

Effective operating distance: 31.5 … 38.5 mm

Frequency of operating cycles: 25 Hz AC / 30 Hz DC

Time delay before availability: 100 ms

Operating Voltage:  230 V AC/DC

Operating Current: 300 mA

Switching output: Normally open

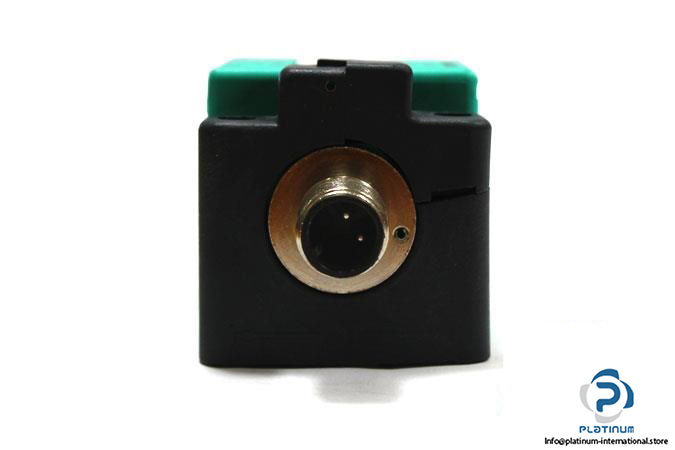

Connector type: M12 Connector, 2-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 55 mm

Weight: 130 g

Housing material: PBT

Sensing face material: PBT

Mounting: Non-flush mountable

Condition: Used
