Manufacturer: PEPPERL FUCHS

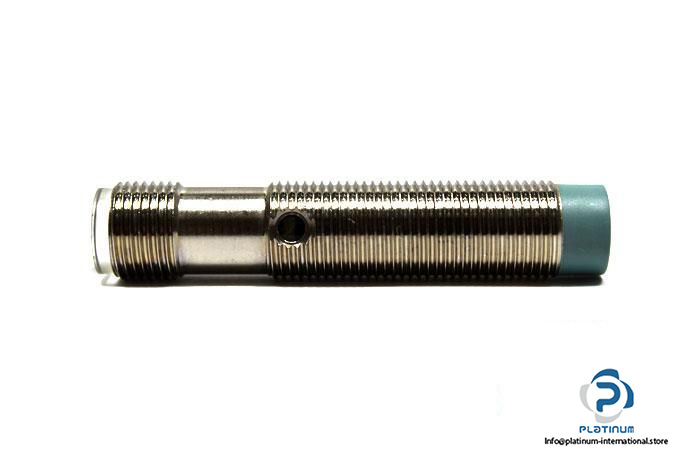

Type: INDUCTIVE SENSOR

Model No.: 3RG43223AG01PF

Part No.: 553755

Successor model: NEN10-12GM50-E2-V1

Rated operating distance: 10 mm

Effective operating distance: 9 … 11 mm

Assured operating distance: 8.1 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 400 Hz

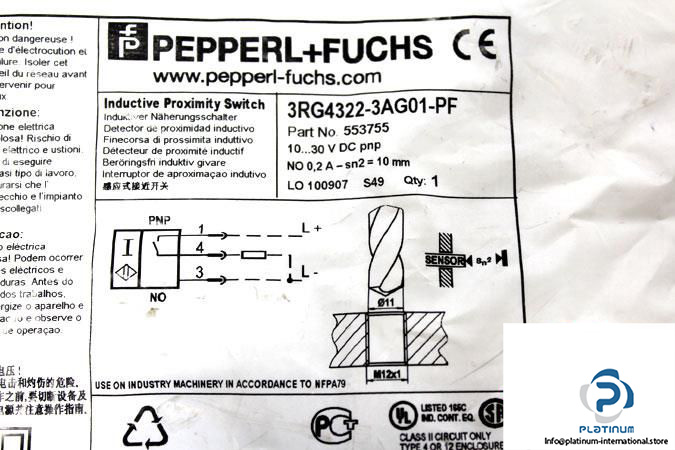

Electrical design: PNP

Switching output: Normally open

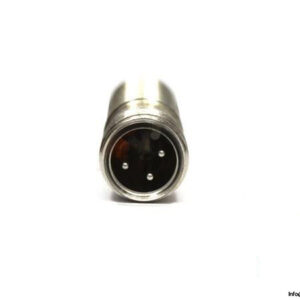

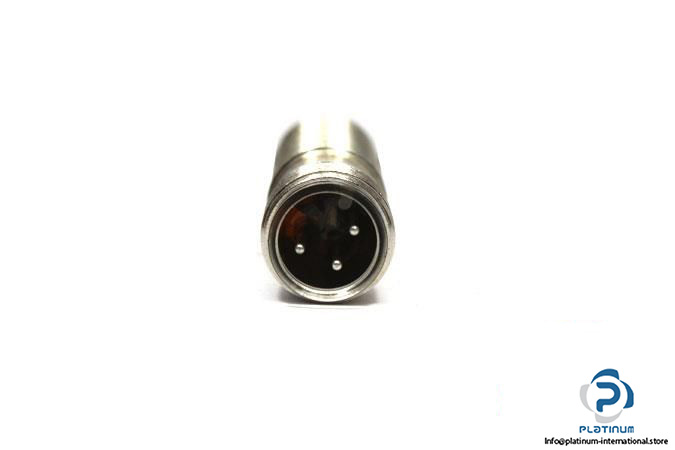

Connector type: M12 Connector, 3-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 12, 60 mm

Housing material: Brass chrome plated

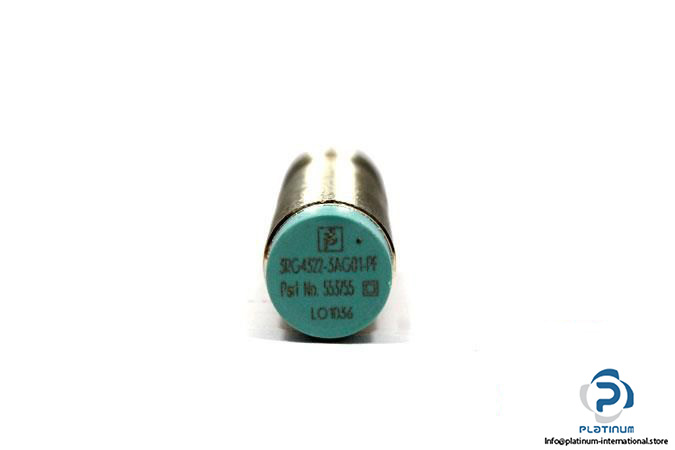

Sensing face material: PBT

Mounting: Non-flush mountable

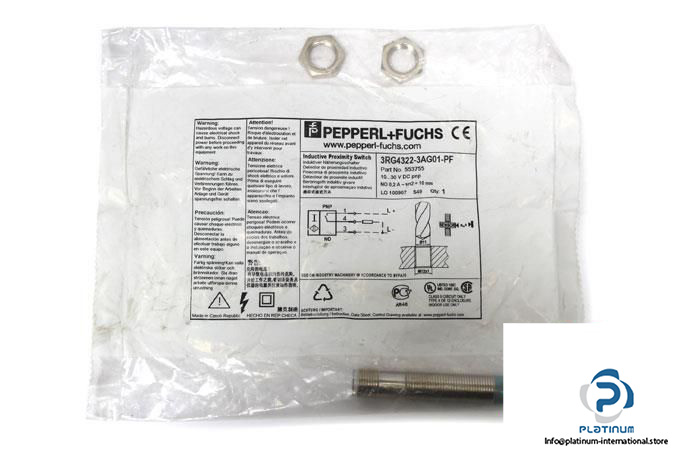

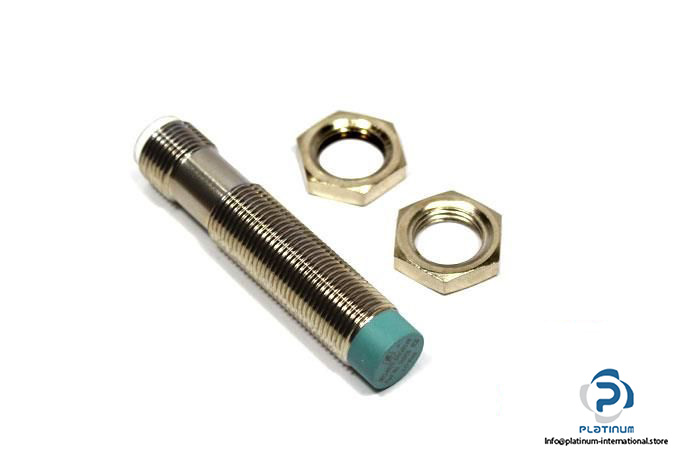

Supplied accessories: 2 lock nuts

Condition: New
