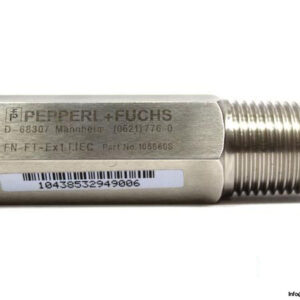

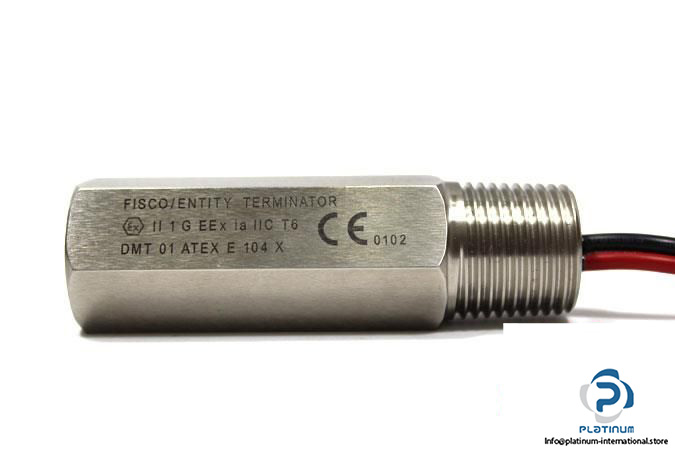

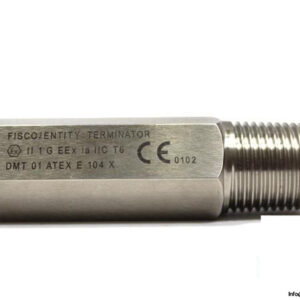

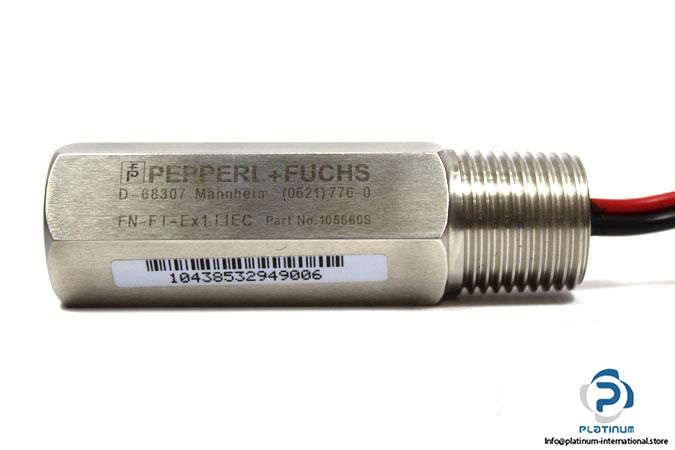

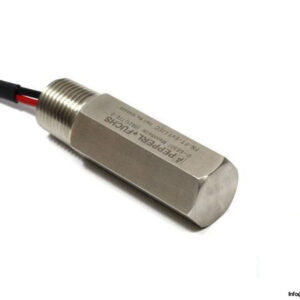

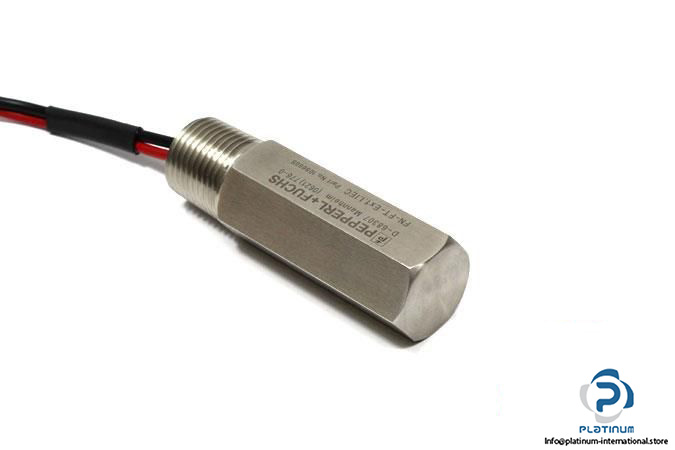

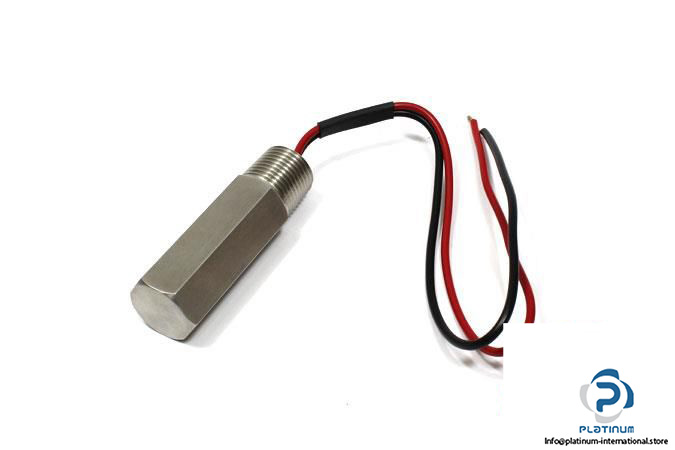

Manufacturer: PEPPERL FUCHS

Type: FIELDBUS TERMINATOR FOR FIELD MOUNTING

Model: FN-FT-EX1-I-IEC

Part No.: 105660S

Function: FN-FT-Ex1.I.IEC are terminators and provide capacitance and resistance to terminate a segment according to IEC/EN 61158-2

Terminators are required at each end of the trunk line. They eliminate signal reflections at the end of the cable and convert the fieldbus signal transmitted as a current into a voltage, which is detectable by all devices

Used for Interface: For FOUNDATION Fieldbus H1 and PROFIBUS PA

Rated Voltage: 32 V DC

Connector Type: 2 Wire Cable, Red and Black

Mounting: 20 mm ISO Thread, PG13.5 Thread, 1/2 NPT Thread

Housing Material: Stainless Steel

Enclosure Rating: IP67

Ambient Operating Temperature: -50 … 85°C

Diameter, Housing Length: 22, 77 mm
