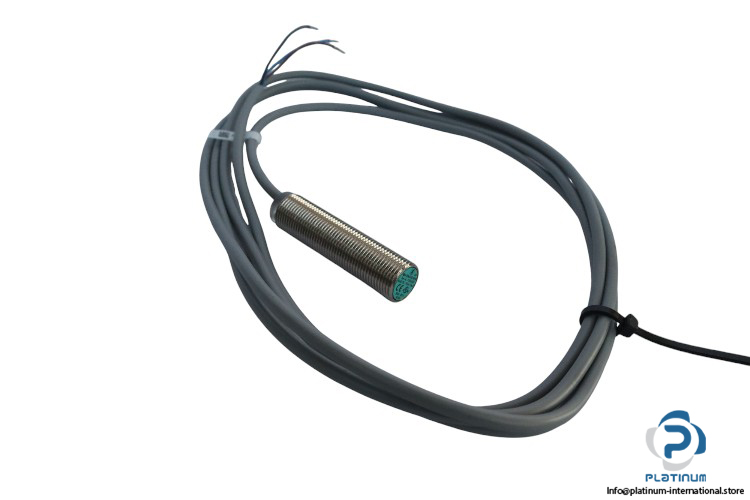

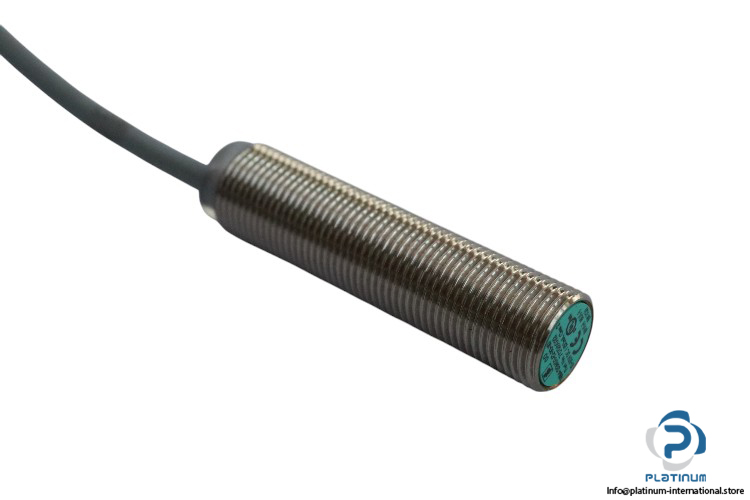

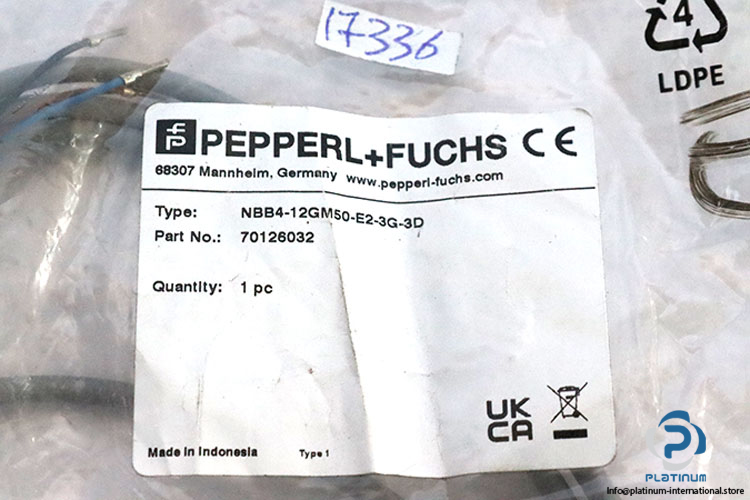

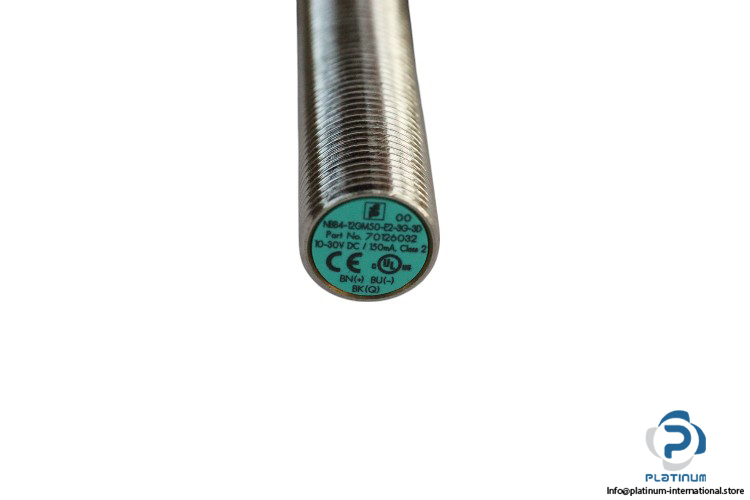

Pepperl+Fuchs NBB4-12GM50-E2-3G-3D Inductive Sensor
Pepperl+Fuchs Inductive Sensor NBB412GM50E23G3D “ High-performance sensor with 4 mm rated distance, PNP output, and IP67 protection. Durable brass housing for industrial applications.
Pepperl+Fuchs Inductive Sensor NBB412GM50E23G3D
Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NBB412GM50E23G3D
Part No.: 70126032
The Pepperl+Fuchs Inductive Sensor NBB412GM50E23G3D is a reliable, high-performance sensor designed for precise detection in industrial applications. Its durable construction and advanced features ensure accurate operation in a variety of challenging environments. With a robust brass, nickel-plated housing and IP67 degree of protection, it offers superior resistance to harsh conditions.
Technical Specifications:
- Operating Voltage: 10 to 30 V DC
- Operating Current: 150 mA
- Switching Output: Normally Open
- Electrical Design: PNP
- Rated Operating Distance: 4 mm
- Mounting: Flush mountable
- Switching Frequency: 0 to 1000 Hz
- Connection Type: Cable
- Cable Diameter, Length: 3.5 mm, 2 m
- Housing Material: Brass, nickel-plated
- Sensing Face: PBT
- Degree of Protection: IP67
- Ambient Temperature: -20 to 70 Degrees Celsius
- Sensor Diameter, Length: 12 mm, 50 mm
With its precise sensing capabilities and robust design, this inductive sensor is ideal for demanding industrial applications, offering reliable performance in a wide range of operating conditions.
