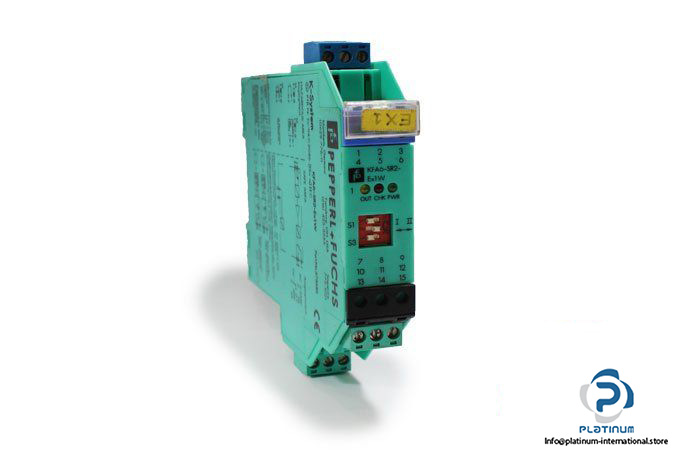

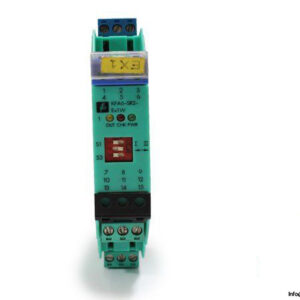

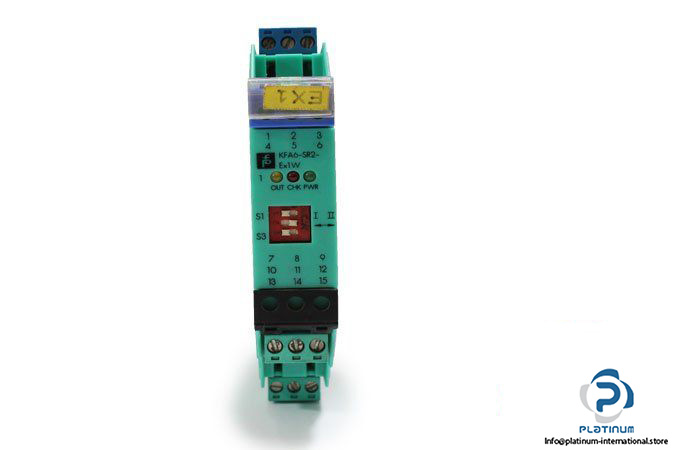

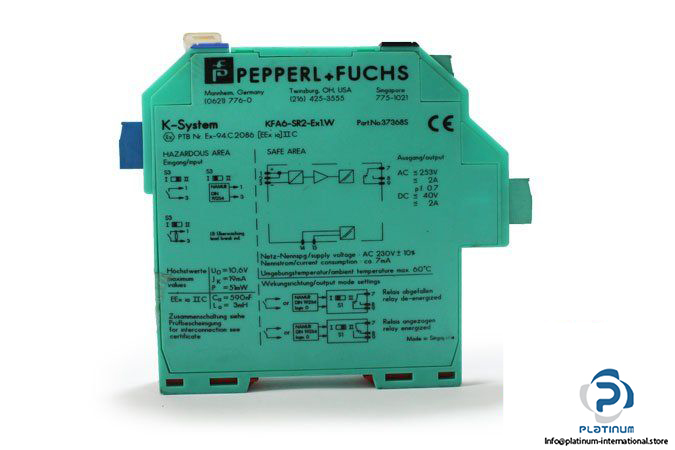

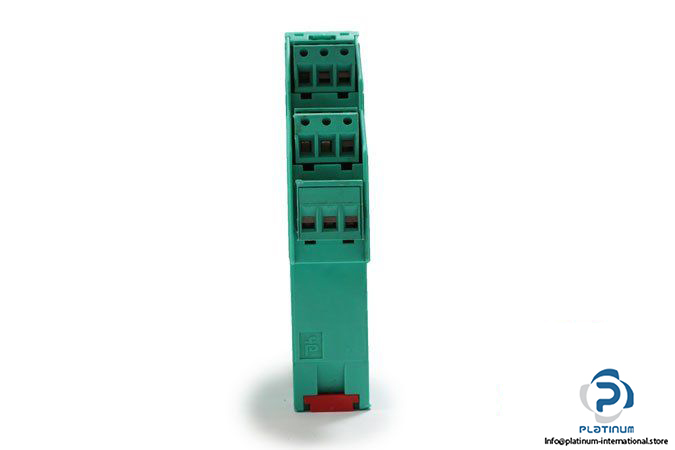

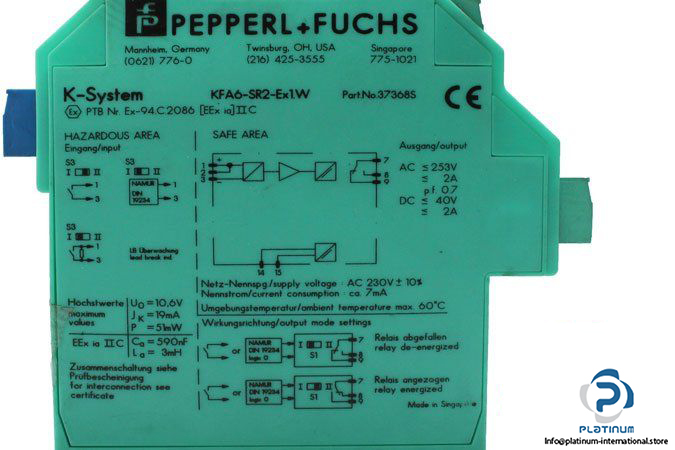

Manufacturer: PEPPERL+FUCHS

Type: SWITCH AMPLIFIER

Model: KFA6-SR2-EX1.W

Part No.: 37368S

Signal Type: Digital Input

Supply Voltage: 207 … 253 VAC

Frequency: 45 … 65 Hz

Power Consumption: ≤ 1 W

Connection: terminals 14, 15

Input:

Connection: terminals 1+, 2+, 3-

Connection Side: field side

Open Circuit Voltage/Short-Circuit Current: approx. 8 V DC / approx. 8 mA

Switching Point/Switching Hysteresis: 1.2 … 2.1 mA / approx. 0.2 mA

Output:

Connection: terminals 7, 8, 9

Connection Side: control side

Energized/De-energized Delay: approx. 20 ms / approx. 20 ms

Contact Loading: 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load

Ambient Temperature: -20 … 60 °C

Protection Degree: IP20

Dimensions: 20 X 119 X 115 mm

Weight: approx. 0.15 Kg
