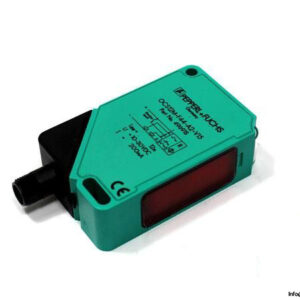

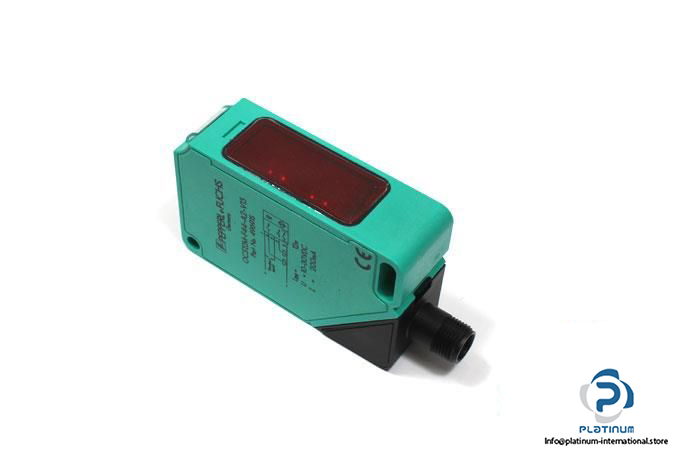

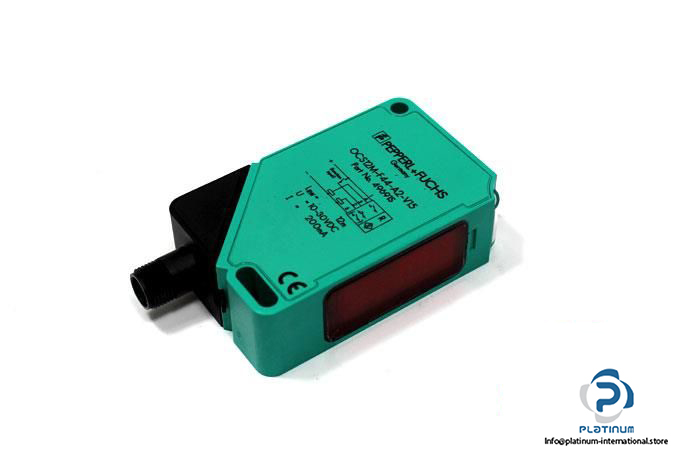

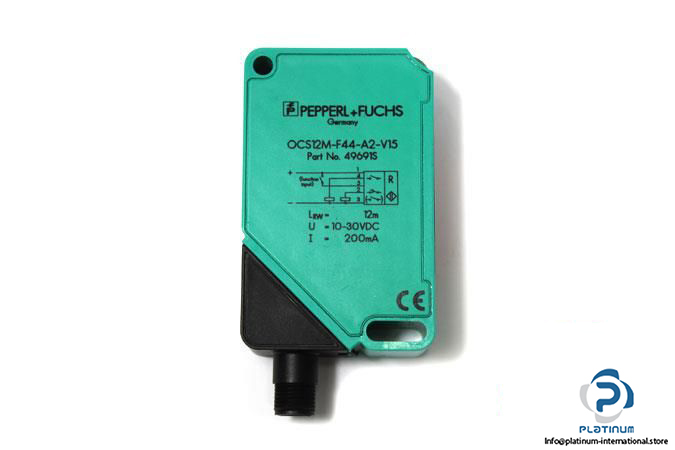

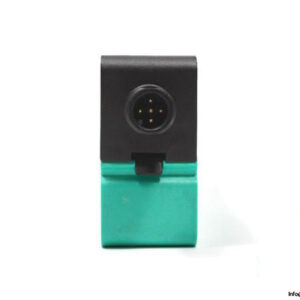

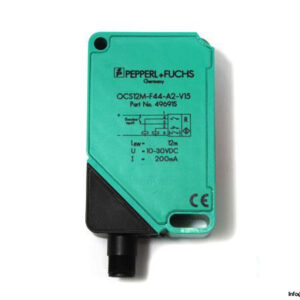

Pepperl+Fuchs OCS12MF44A2V15 Photoelectric Retro-Reflective Sensor

The Pepperl+Fuchs OCS12MF44A2V15 is a high-performance photoelectric retro-reflective sensor engineered for precise object detection in industrial automation systems. Featuring a robust PMMA housing, wide sensing range, and reliable PNP output, it ensures accurate switching and durability even in harsh environments.

Manufacturer: Pepperl+Fuchs
Type: Photoelectric Retro-Reflective Sensor
Model No.: OCS12MF44A2V15
Part No.: 49691S

Technical Information

Rated Operating Distance: 0 / 12000 mm at Retro-reflector ORR100 / 0 / 9000 mm at Retro-reflector ORR50
Operating Voltage: 10 / 30 V DC
Operating Current: 200 mA
Switching Frequency Max.: 1 kHz
Response Time: 500 µs
Electrical Design: PNP
Switching Output: Normally Open / Normally Closed
Light Source: Visible Red Light 660 nm
Adjustment: Teach-in Button

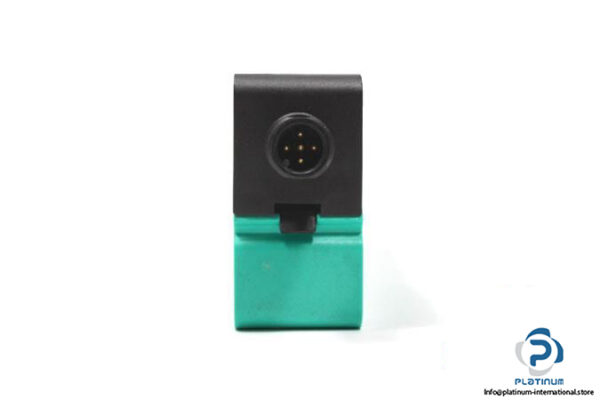

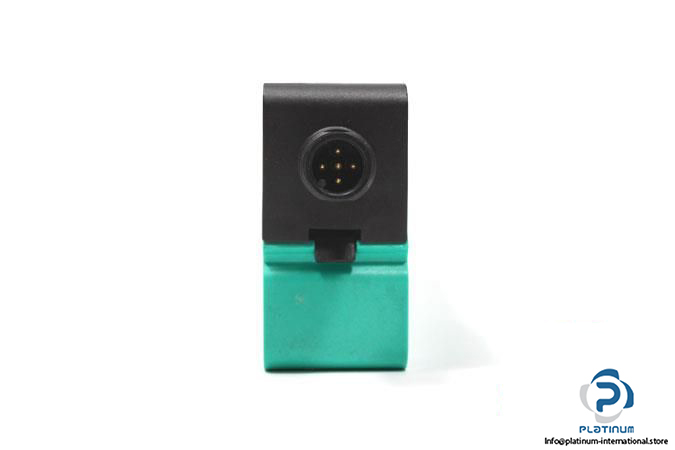

Connector Type: V15-Connector 5-pin, Adjustable Through 90°
Enclosure Rating: IP67
Ambient Operating Temperature: -25 / 70 °C
Dimensions: 50 x 25 x 80 mm
Weight: 65 g
Housing Material: PMMA
Lens Material: PMMA Double Lens, Scratch Resistant Plastic Lens
