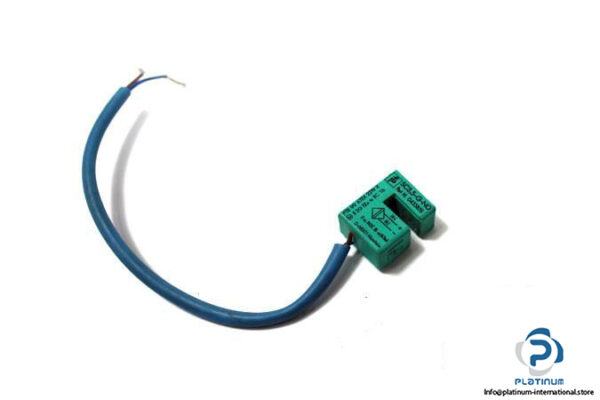

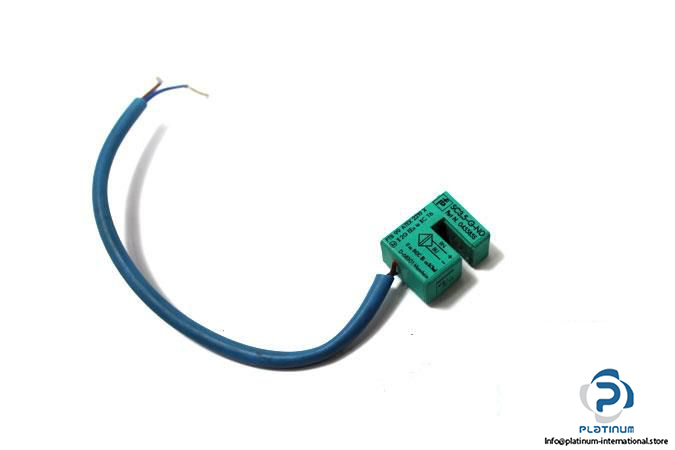

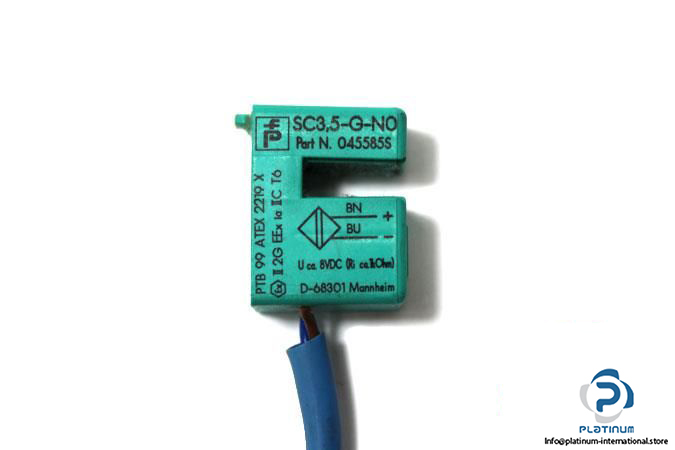

Manufacturer:  PEPPERL FUCHS

Type: INDUCTIVE SLOT SENSOR

Model No.: SC3,5GN0

Part No.: 045585S

Depth of immersion (lateral): 5 … 7 mm, typ. 6 mm

Slot width: 3.5 mm

Operating Voltage: 5 … 25 V DC

Nominal Voltage: 8 V DC

Current Consumption (measuring plate not detected): ≥ 3 mA

Current Consumption (measuring plate detected): ≤ 1 mA

Switching frequency: 0 … 3000 Hz

Hysteresis: 0.41 … 0.6 mm

Switching output: Normally closed

Output type: NAMUR

Connector type: flexible leads PVC, 135 mm

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 100°C

Dimensions: 15 x 10 x 19 mm

Housing material: PBT

Condition: New / Used

Weight: 6 g
