Manufacturer: Phoenix Contact

Type: Loop-Powered Isolator

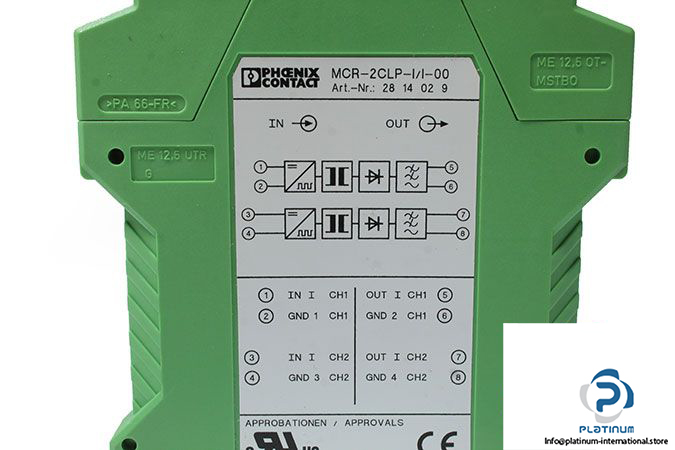

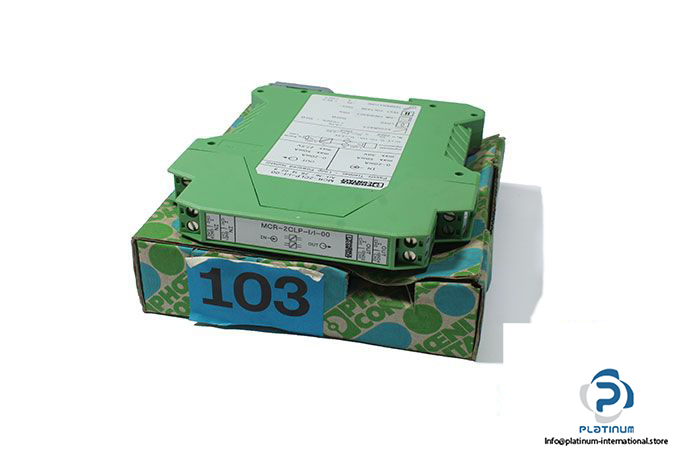

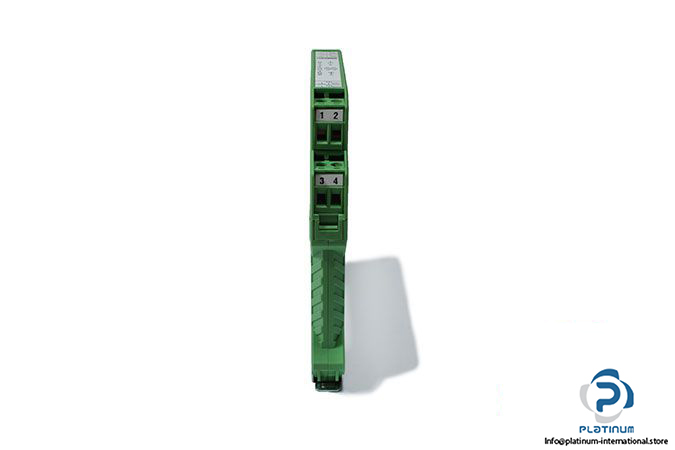

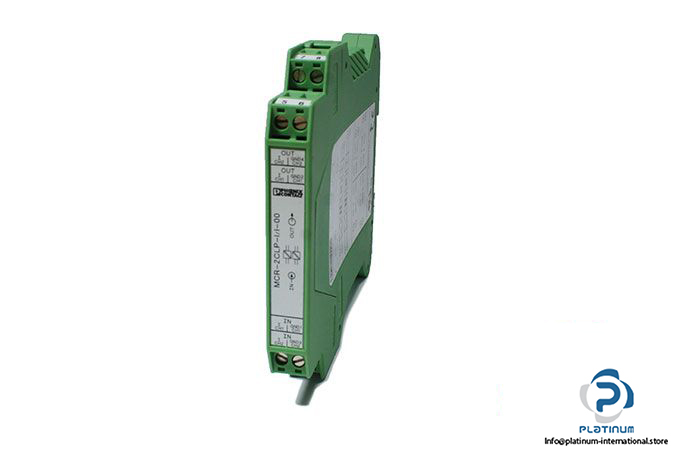

Model: MCR-2CLP-I/I-00 – 2814029

Part No.: 2814029

Input:

Input Voltage: max. 30 V

Input Current: max. 50 mA (100 mA overload)

Response Current: < 50 µA
Input Voltage Limitation: 33 V

Description of the Input: Current input

Number of Inputs: 2

Output:

Output Name: Current output

Number of Outputs: 2

Current Output Signal: 0 … 20 mA, 4 … 20 mA

Max. Output Current: < 50 mA Color: green

Housing Material: Polyamide PA non-reinforced

Ambient Temperature (Operation): -10 … 70 °C

Dimensions: 99 X 12.5 X 114.5 mm

Weight: 0.12 Kg
