Cabur XR081E24P Relay Module
Used
In stock1 unitReady to ship
133,33$
Relay Module
The CABUR XR081E24P is an 8-relay module with 24 V DC input, SPDT AgSnO‚‚ contacts, and built-in diode protection. Designed for reliable switching in control and automation systems.24v8AutomationCaburchannelControldcElectricalEquipmentIndustrialInterfaceModulePLCRelaySpdtXR081E24P
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

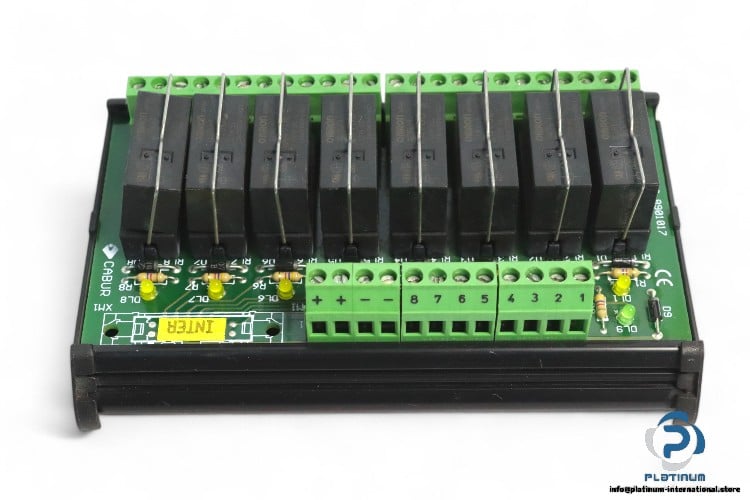

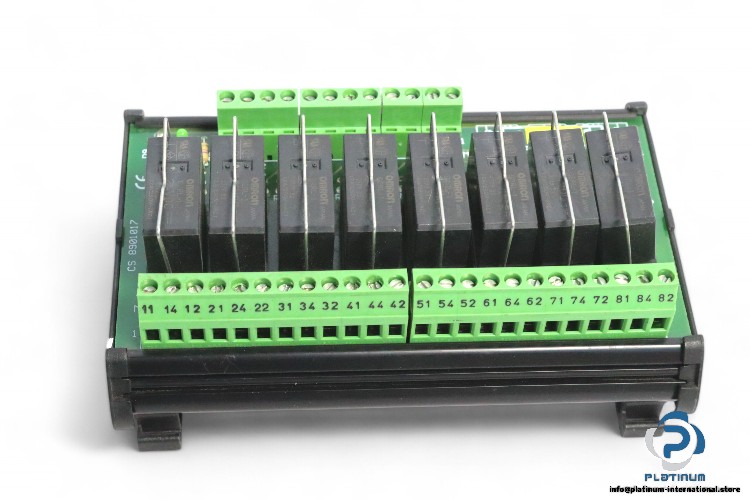

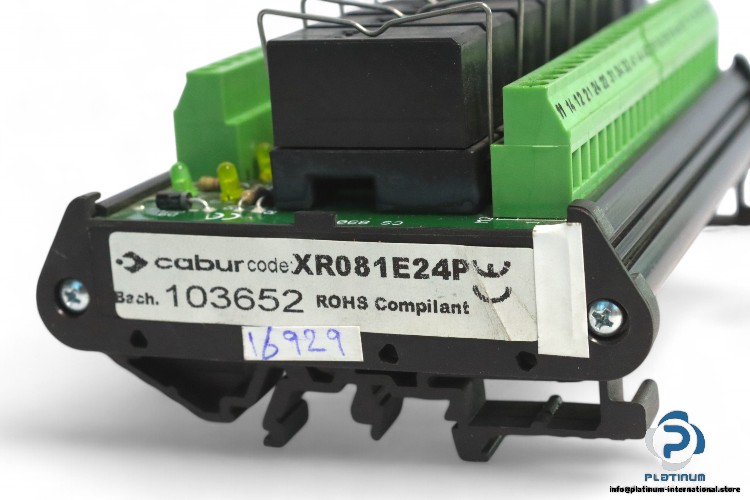

CABUR XR081E24P Relay Module
The CABUR XR081E24P is a reliable and high-performance relay module designed for industrial control and automation applications. Equipped with eight SPDT relays, this module offers dependable switching capacity, fast response time, and built-in protection circuits for long-term operation. It is ideal for use in PLC interfaces, control panels, and signal switching systems.
Manufacturer: CABUR
Type: Relay Module
Model: XR081E24P
Part No.: 103652
| Input Rated Voltage | 24 V DC ±10% |
| Input Rated Current | 22 mA ±10% |
| Turn ON Time | 15 ms |
| Turn OFF Time | 5 ms |
| Protection Circuit | Damping & Polarity Protection Diode |
| Output Type & Number of Contacts | SPDT AgSnO‚‚ |
| Nominal Load (Resistive) | 12 A / 250 VAC |
| Current Breaking Power | 12 A |
| Connection Terminal | 2.5 mm² Fixed Screw Type |
| Number of Relays | 8 |
| Protection Degree | IP00 |
| Housing Material | UL94V-0 Plastic |
| Operating Temperature Range | ˆ’10 / 50 °C |
