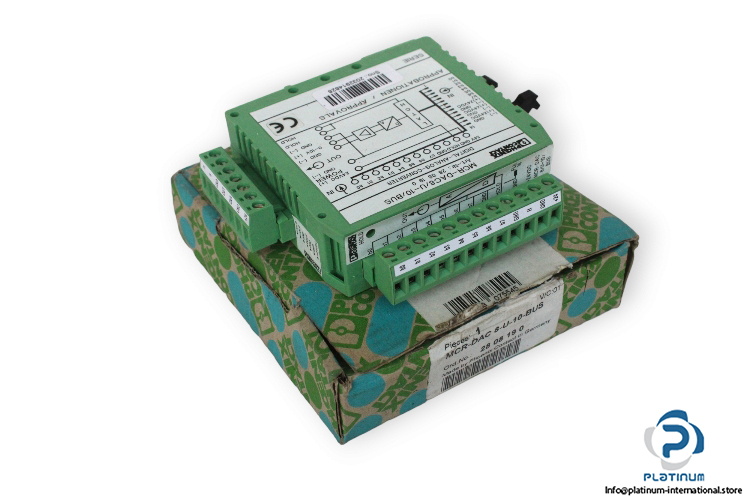

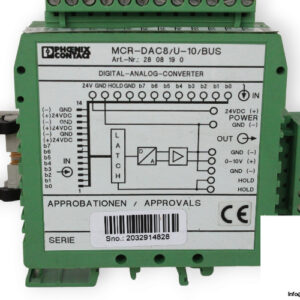

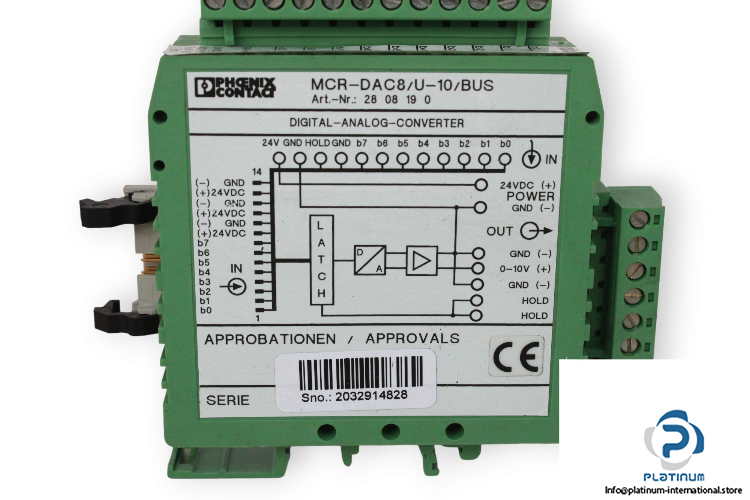

PHOENIX CONTACT MCR-DAC8/U-10-BUS DIGITAL/ANALOG CONVERTER
The Phoenix Contact MCR-DAC8/U-10-BUS is a compact and reliable digital-to-analog converter designed for precise signal conversion in industrial automation systems. With an 8-bit input, wide supply voltage range, and robust housing, it ensures stable operation and accurate performance in demanding environments.
Manufacturer: Phoenix Contact
Type: Digital/Analog Converter
Model: MCR-DAC8/U-10-BUS
Art No.: 28 08 19 0

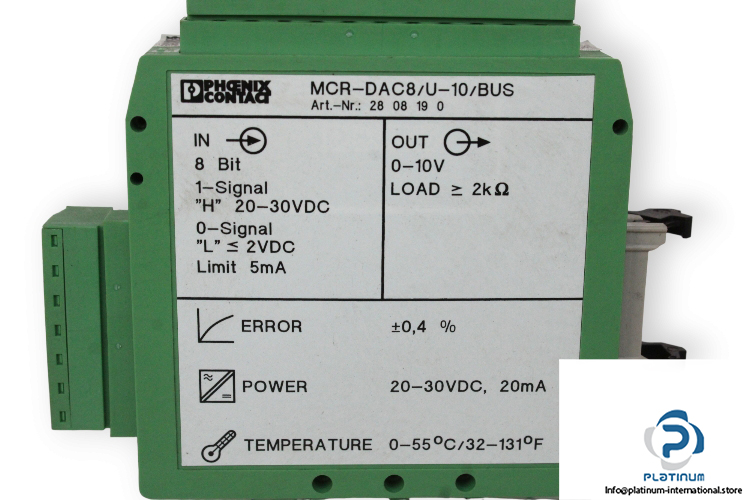

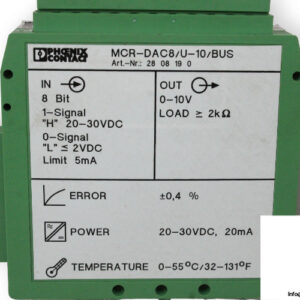

Technical Information
- No. of Input Signal Digital Bits: 8 bits
- Nominal Supply Voltage: 24 V DC (20 / 30 V DC)
- Max. Current Consumption: 20 mA
- Power Dissipation (max): < 480 mW
- Input Voltage Range:
- Signal Level “1”: 20 / 30 V DC
- Signal Level “0”: ‰¤ 2 V DC
- Max. Current Input Signal: ‰¤ 5 mA
- Voltage Output Signal: 0 / 10 V
- Load/Output Load Voltage Output: ‰¥ 2 kΩ
- Connection Method: Screw connection
- Stripping Length: 8 mm
- Screw Thread: M3
- Housing Material: Polyamide PA non-reinforced
- Mounting Type: DIN rail mounting
- Ambient Temperature (Operation): 0 / 55 °C
- Dimensions: 25 x 79 x 93 mm
