Dual Channel RTD Converter
The DATEXEL DAT4532B provides accurate signal conversion for Pt100, Pt1000, Ni100, and Ni1000 sensors. Powered by 18“30 V DC, it delivers isolated 0/4“20 mA or 0/1“10 V outputs for industrial temperature monitoring.AutomationchannelControlConverterDAT4532BDatexelDINDualIndustrialModulemonitoringProcessPt100railRTDSignalTemperatureTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

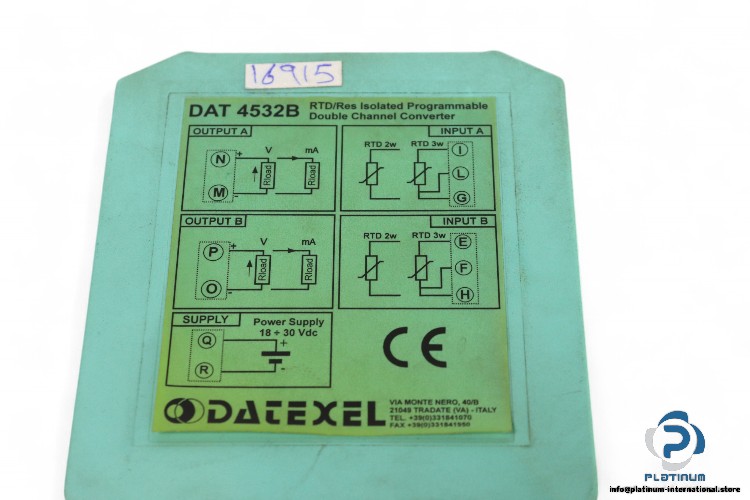

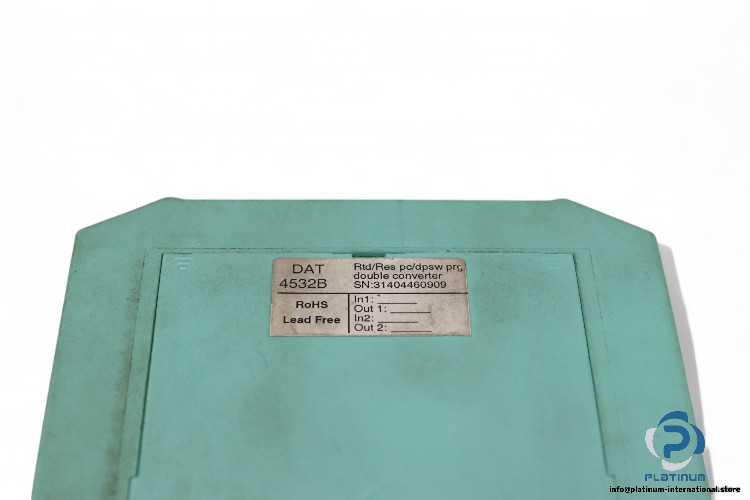

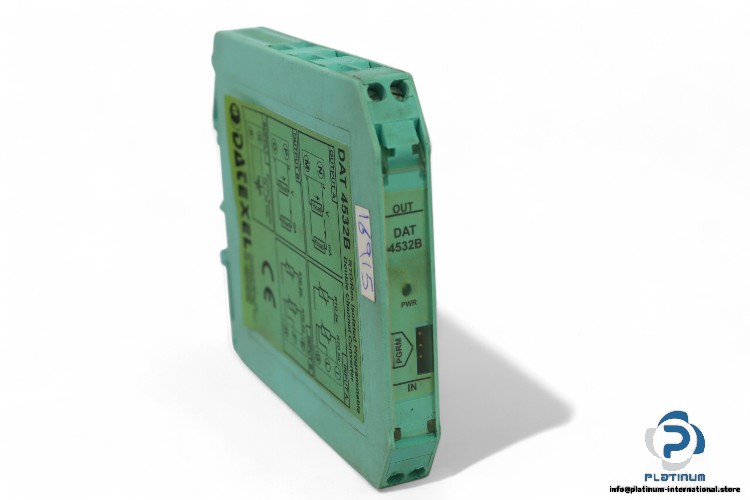

DATEXEL DAT4532B Dual Channel RTD Converter
The DATEXEL DAT4532B Dual Channel RTD Converter is a high-precision signal conditioning device designed to convert temperature sensor signals into standard analog outputs. Supporting multiple RTD types, it ensures stable, isolated, and accurate measurements for process control and industrial automation applications.
Manufacturer: DATEXEL
Type: Dual Channel RTD Converter
Model: DAT4532B
| Power Supply | 18 to 30 V DC |
| Current Consumption | 35 mA max (Current Output) |
| Input Type | Pt100, Pt1000, Ni100, Ni1000 |
| Output Type | 0/4 / 20 mA, 0/1 / 10 V DC |
| Connector | 2, 3 Wires |
| Temperature Rating | ˆ’20 / +70 °C |
| Channels | Dual Independent Channels |
| Application | Process Control, Industrial Automation, Temperature Monitoring |
| Features | High Accuracy, Electrical Isolation, Compact DIN-Rail Design |
