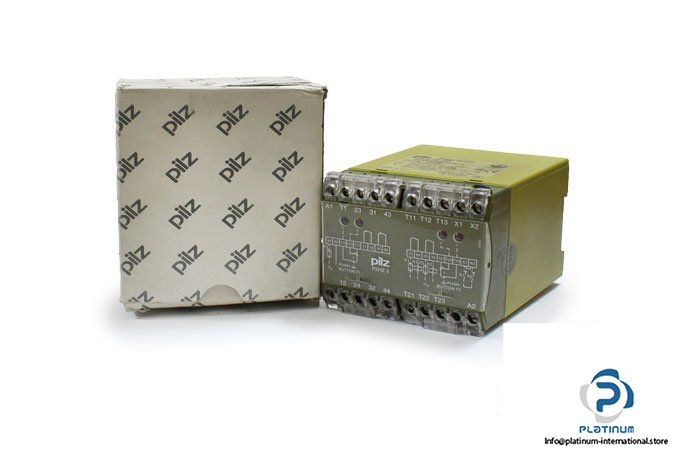

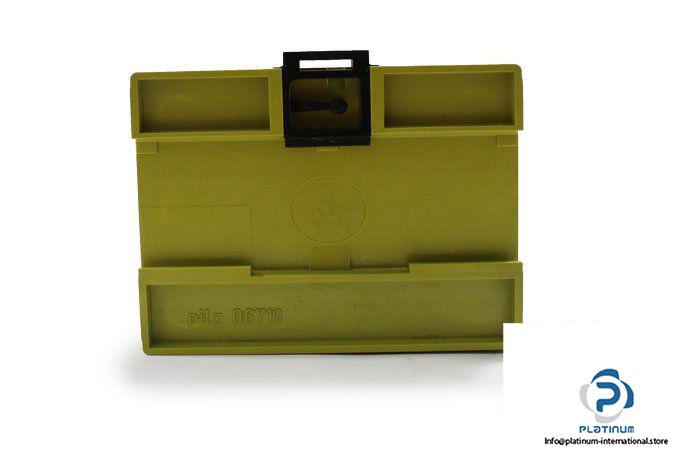

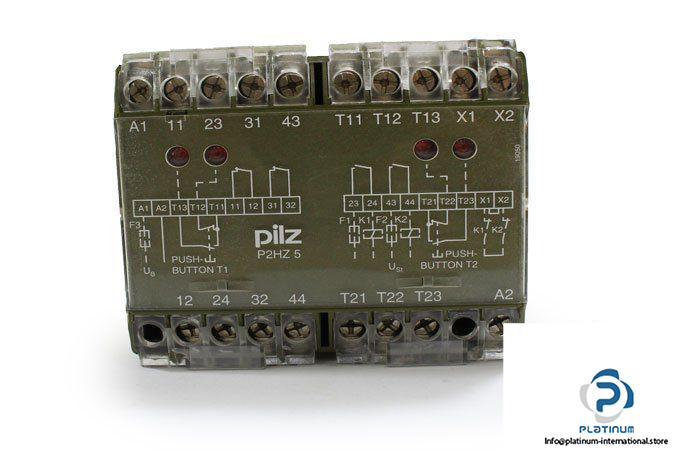

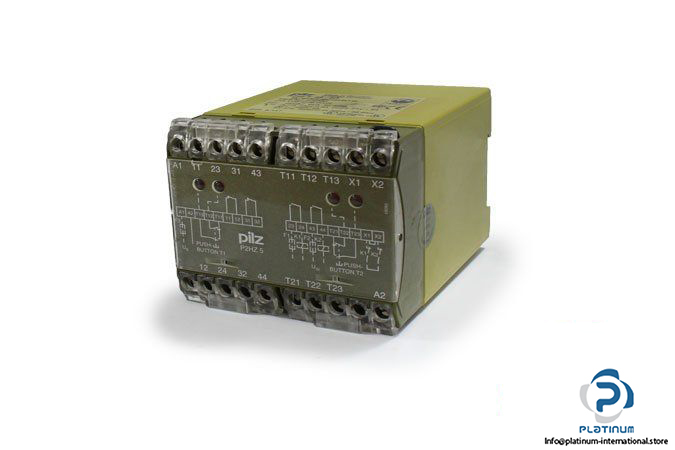

Manufacturer: PILZ

Type: TWO-HAND RELAY

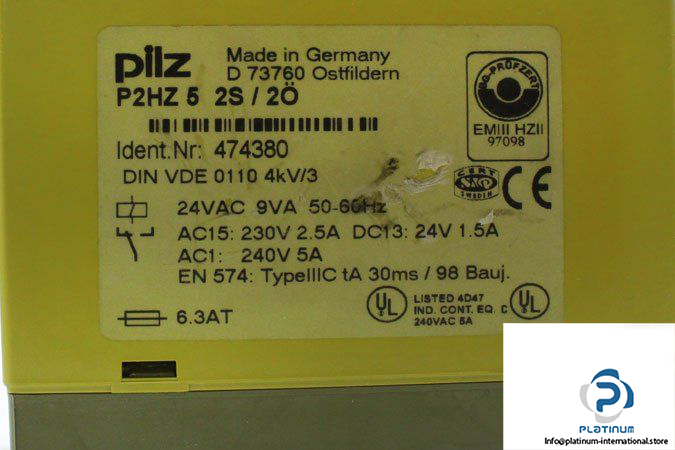

Model: P2HZ 5 2S/2O

Part No.: 474380

Supply Voltage: 24 VAC

Power Consumption: 9 VA

Frequency: 50-60 Hz

Storage Temperature: -25 … +85 °

Output Contacts: 2 safety contacts (N/O)

Contact Fuse Protection: 6 A quick or 4 A slow

Delay-on Energisation / De-Energisation: 10 ms / Approx. 30 ms

Torque Setting on Connection Terminals: 0.6 Nm (screws)

Tolerance: 85 … 110 %

Dimension: 87 X 90 X 110 mm

Protection Class: IP 20

Weight: 0.6 Kg
