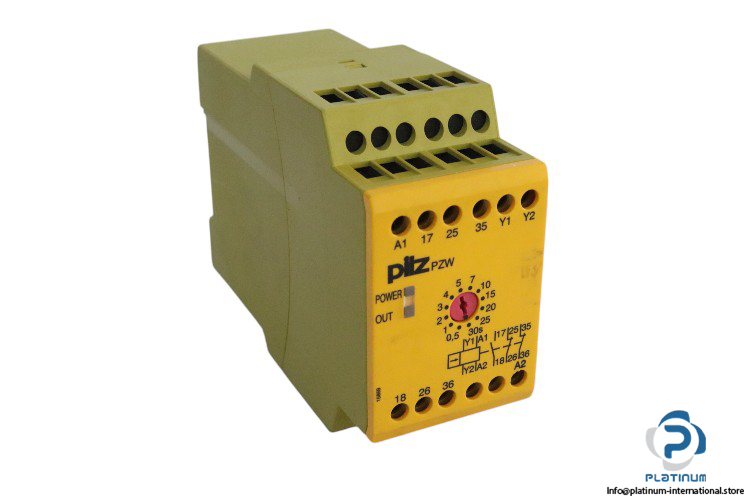

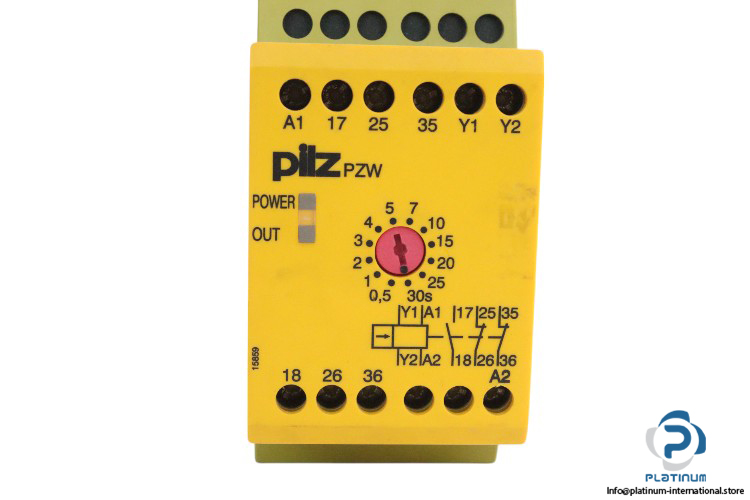

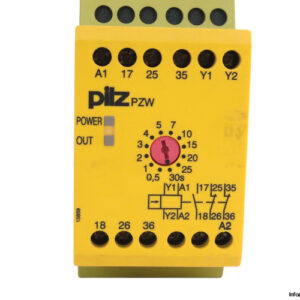

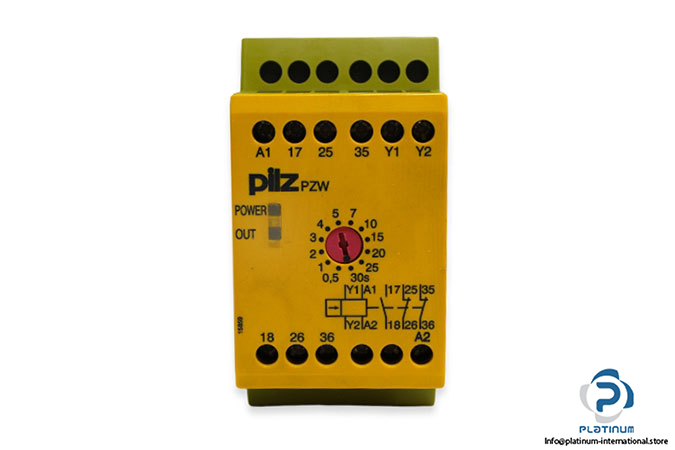

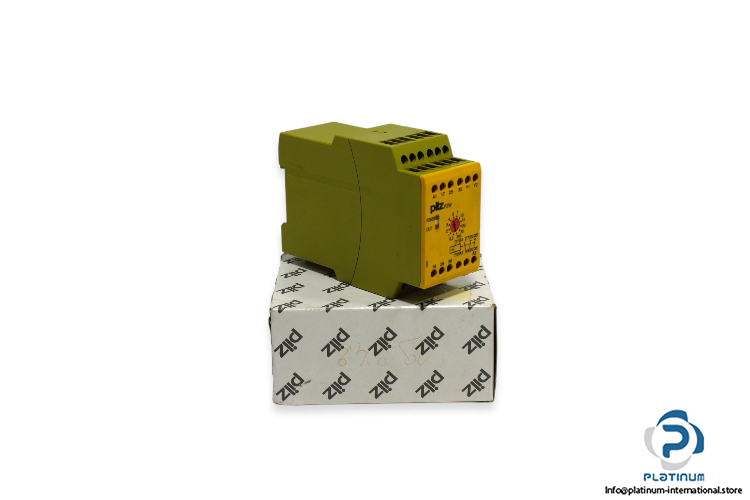

PILZ Safety Relay PZW 30/24VDC 1N/O 2N/C

The PILZ PZW 30/24VDC 1N/O 2N/C Safety Relay, Part No. 774019, is a robust and reliable device designed for safety-critical industrial applications. Offering a time range of 0.5 to 30 seconds and various relay output options, it ensures precise control and safety compliance.

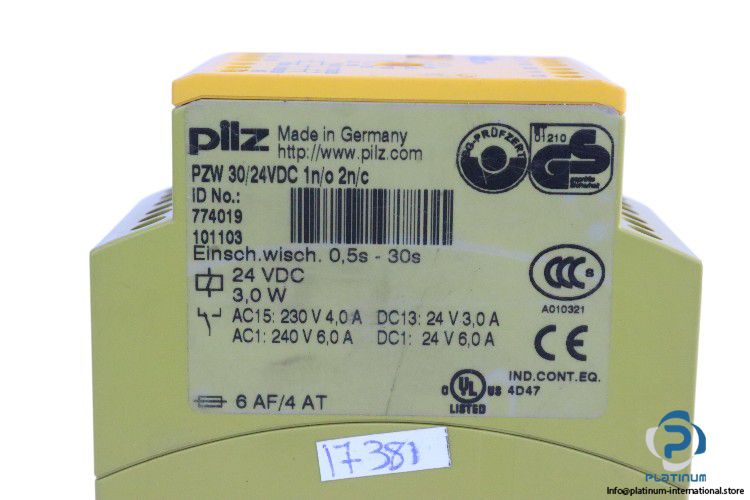

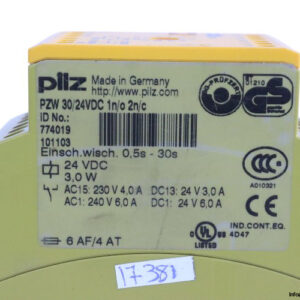

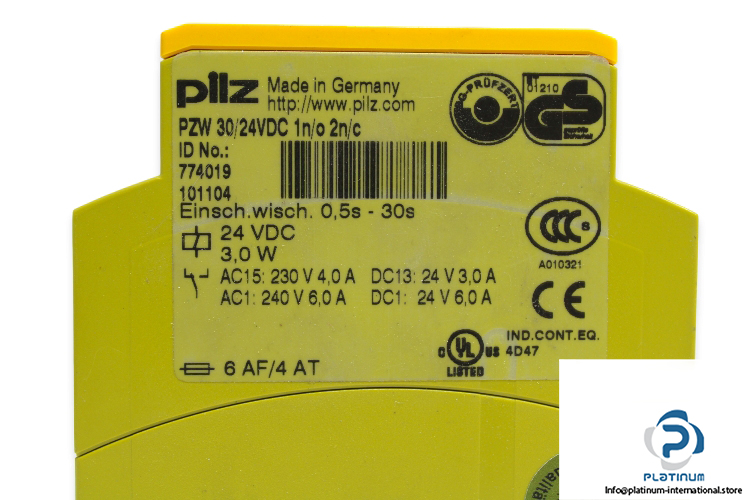

Specifications:

• Manufacturer: PILZ
• Type: Safety Relay
• Model: PZW 30/24VDC 1N/O 2N/C
• Part No.: 774019
• Supply Voltage: 24 V DC
• Time Range: 0.5 / 30s
• Power Consumption: 3 W
• Contact Fuse Protection: 4 A
• Connection Terminal: Screw terminal
• Relay Outputs:
• AC15: 230 V / 4 A
• DC13: 24 V / 3 A
• AC1: 240 V / 6 A
• DC1: 24 V / 6 A
• Ambient Temperature: -10 / 55 °C
• Dimensions: 87 x 45 x 121 mm
