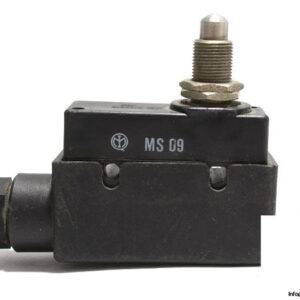

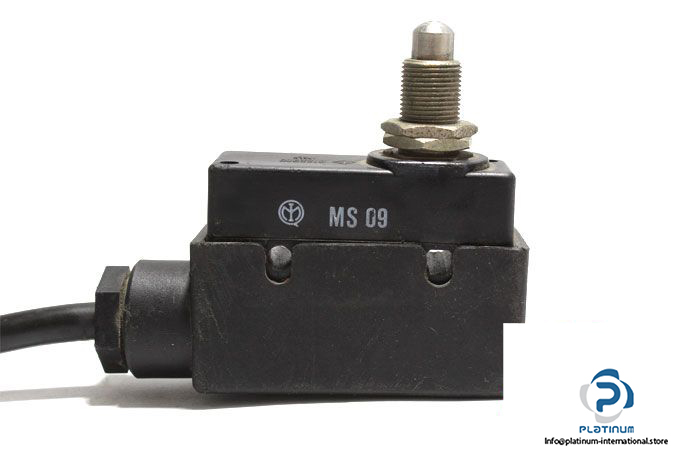

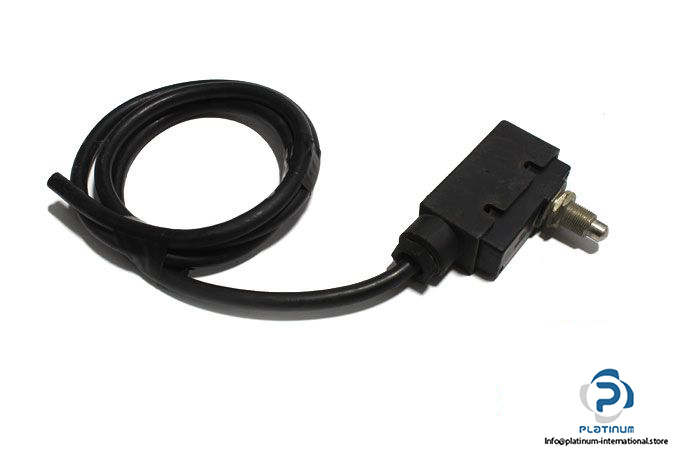

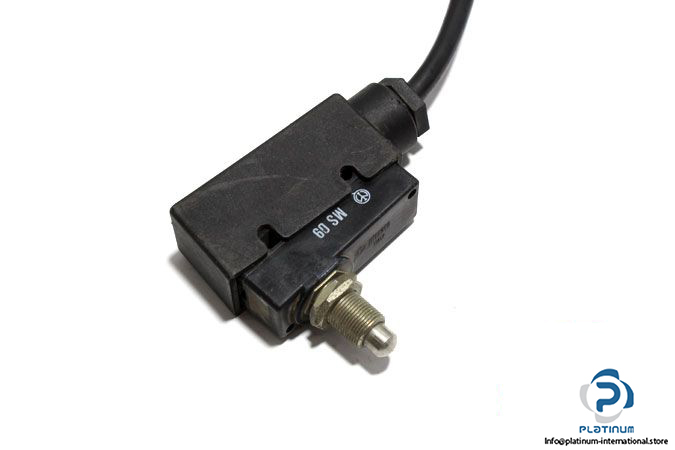

PIZZATO MS 09 MICRO LIMIT SWITCH

The Pizzato MS 09 is a compact and reliable micro limit switch designed for precision control in industrial automation systems. With snap action contacts and push plunger actuator, it ensures fast and accurate switching operations in a wide range of environments.

Manufacturer: Pizzato
Type: Micro Limit Switch
Model: MS 09

Technical Information

• Output Configuration: 1 Normally Open + 1 Normally Closed
• Contact Operation: Snap Action
• Actuator Type: Push Plunger
• Switching Voltage Max.: 250 V AC
• Contact Current Max.: 5 A
• Connection: Cable
• Protection Class: IP20/IP40
• Ambient Operating Temperature: -25 / 85°C
• Dimensions: 39 x 21 x 54 mm
