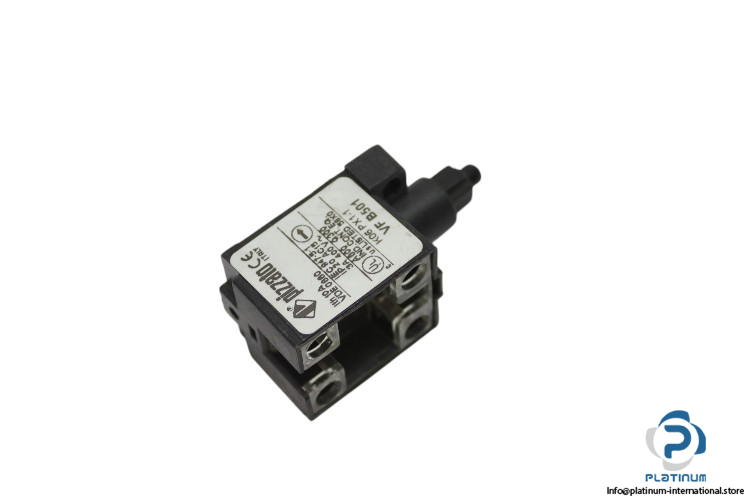

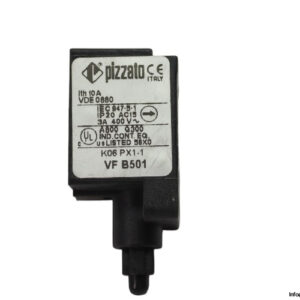

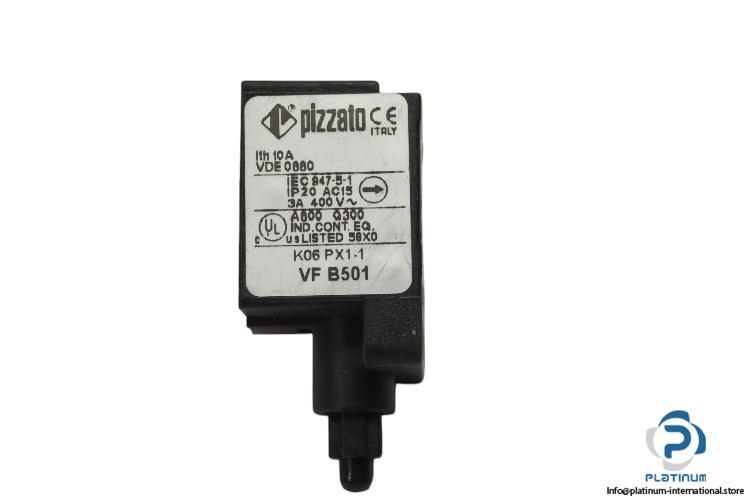

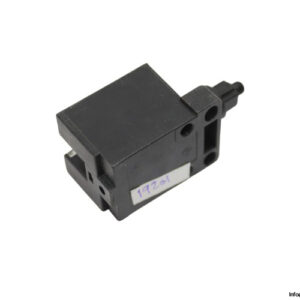

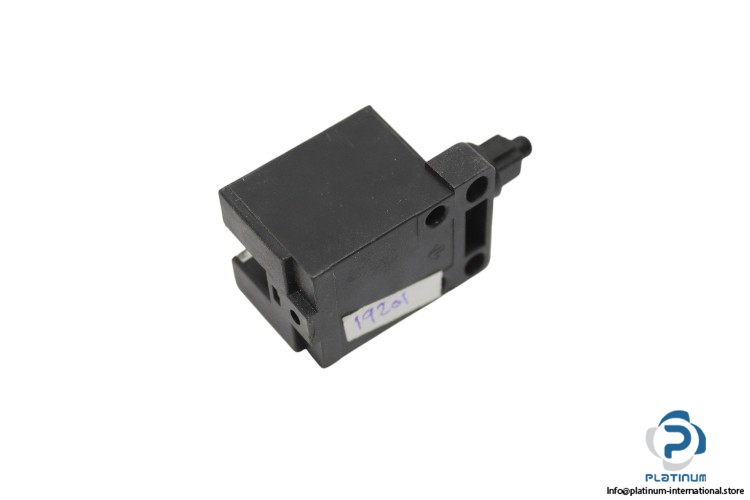

Pizzato VF B501 Position Switch for Indoor Use
The Pizzato VF B501 is a reliable and compact position switch for indoor use, designed for safety and precision in industrial automation systems. Equipped with a technopolymer plunger actuator, it features snap-action contacts, high voltage ratings, and robust performance in a wide temperature range.
Manufacturer: Pizzato
Type: Position Switch for Indoor Use
Model: VF B501
Technical Information:
- Actuator: With technopolymer plunger (standard)
- Operating Voltage: 400 V, 3 A
- Rated Voltage: 500 V AC / 600 V DC
- Rated Thermal Current: 10 A
- Rated Impulse Withstand Voltage: 6 kV
- Contact Type: 1NO + 1NC, snap action
- Protection Class: IP20 / IP40
- Operating Temperature Range: -40 to 80 °C
- Connection Size: 19 mm
