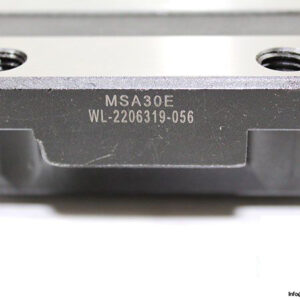

Manufacturer: PMI

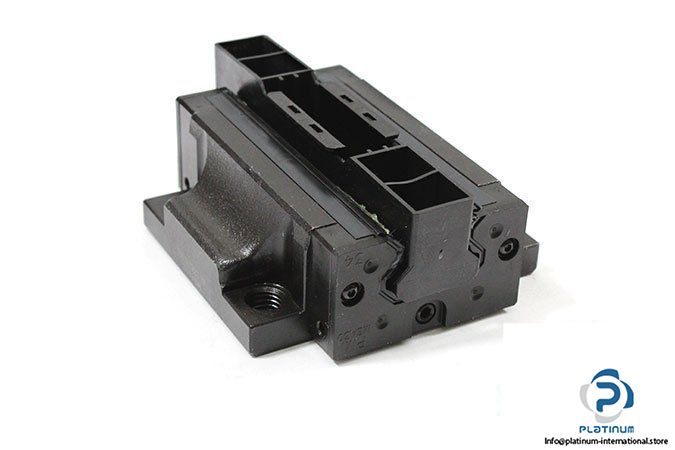

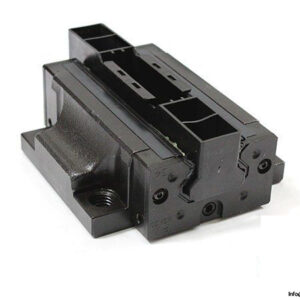

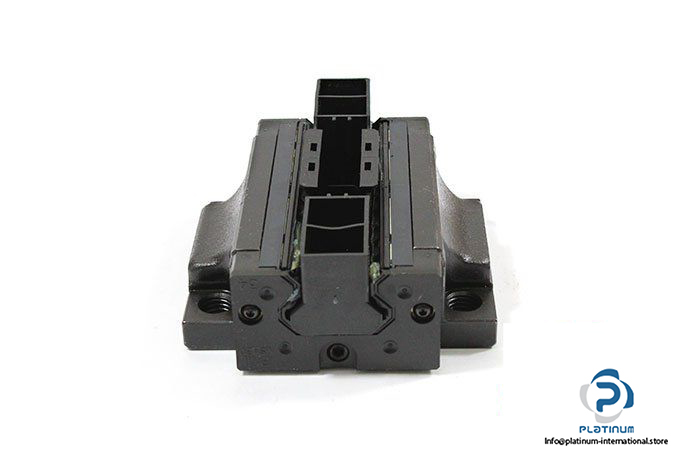

Type: LINEAR GUIDEWAY BLOCK

Series: MSA

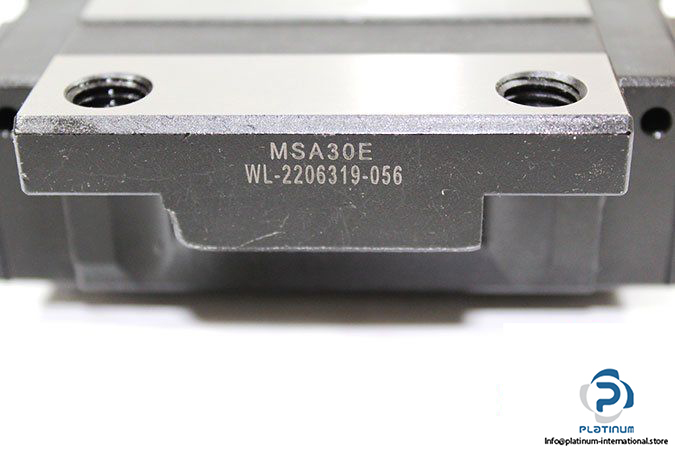

Model: MSA 30E

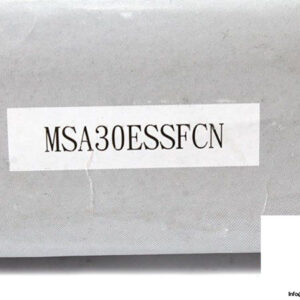

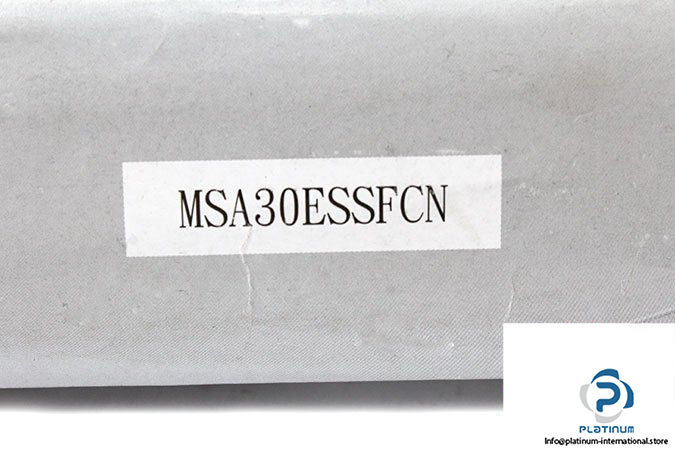

MRN: MSA30ESSFCN

Size: 30

Block Type: Flange

Load Type: Heavy Load

Block Mounting Type: from Top or Bottom

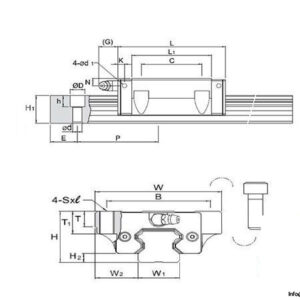

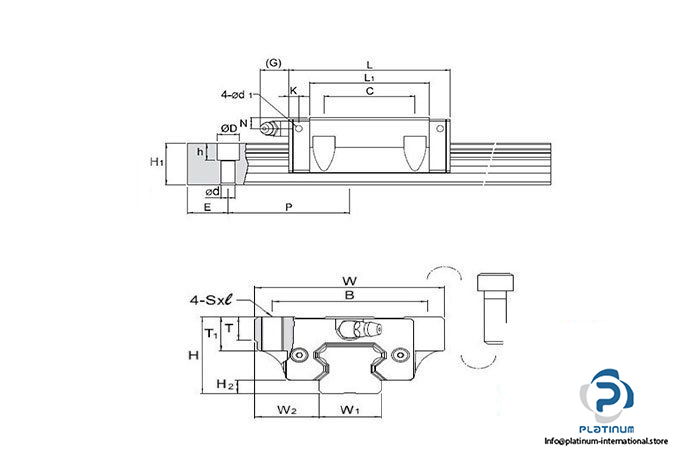

Block Height: 42 mm

Block Width: 90 mm

Block Length: 97 mm

Thread Size: M10

Rail Width: 28 mm

Rail Height: 26 mm

Preload: FC

Accuracy Grade: N

Basic dynamic load rating: 39.2 kN

Basic static load rating: 57.8 kN

Weight: 1.1 kg
