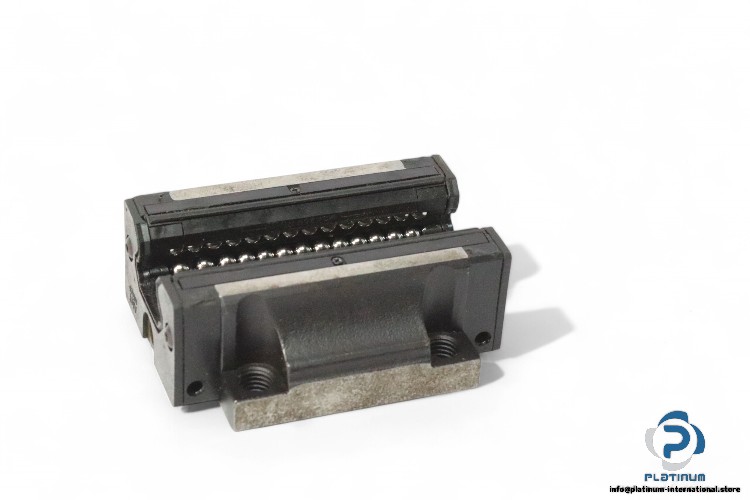

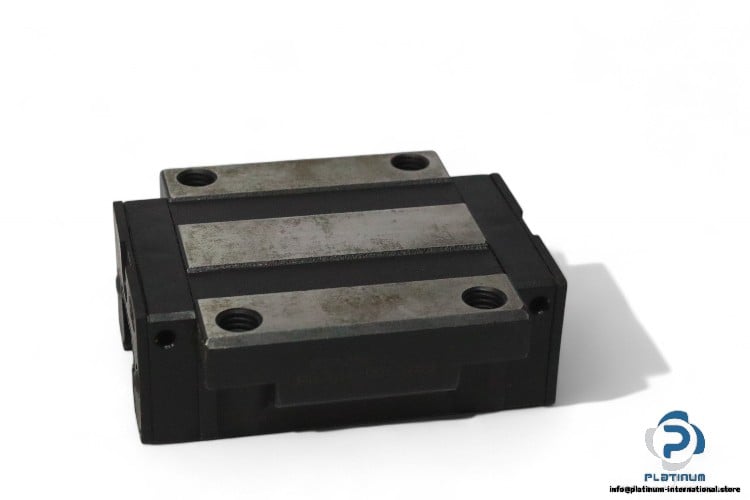

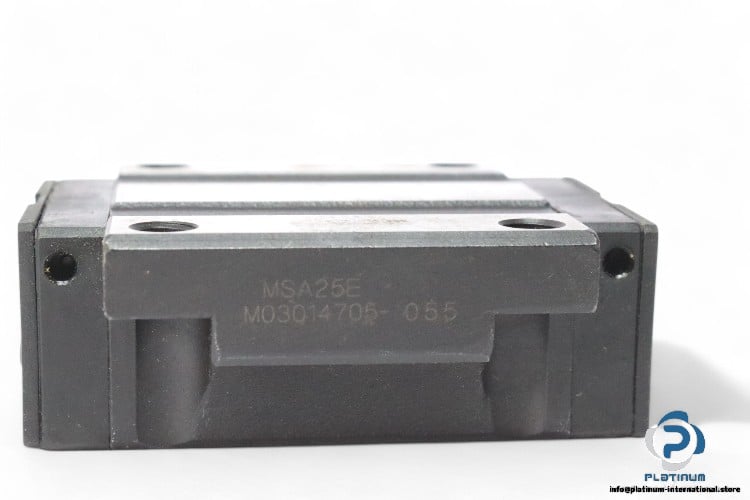

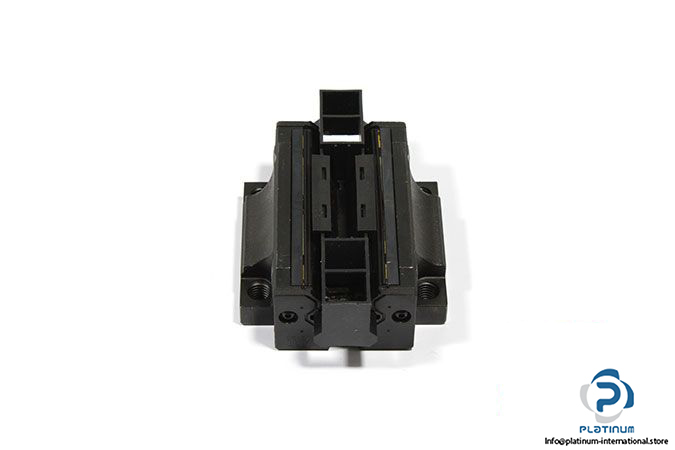

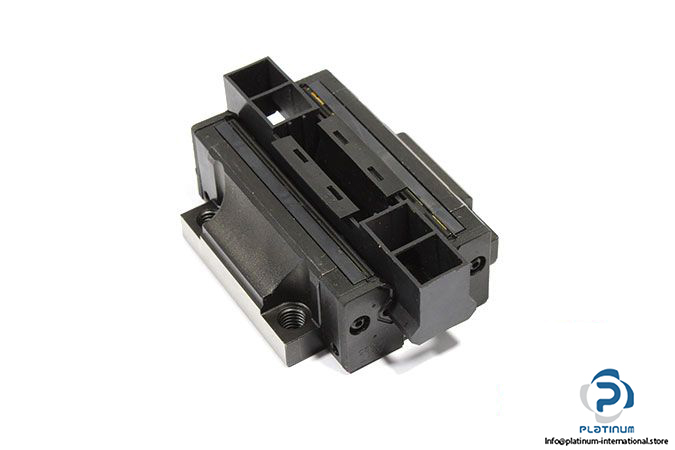

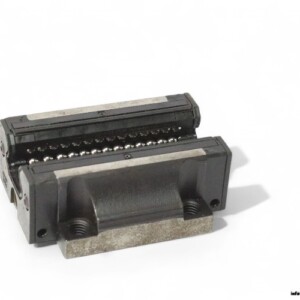

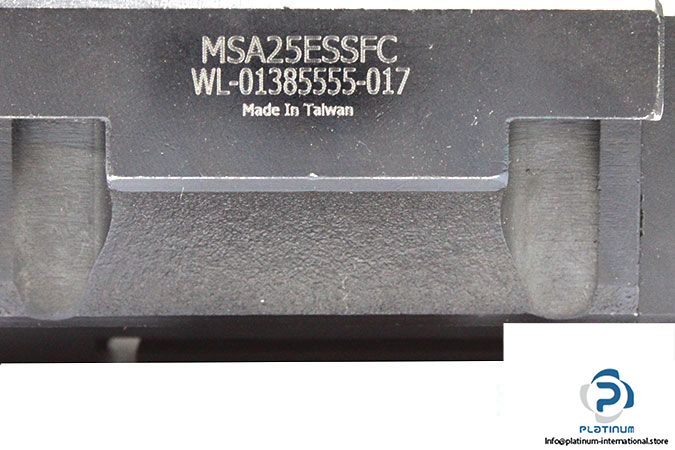

AMT MSA25E Linear Guideway Block

Manufacturer: PMI AMT

Type: LINEAR GUIDEWAY BLOCK

Model: MSA 25 ESSFC

Size: 25 mm

Block Type: Flange

Load Type: Heavy Load

Basic Load Ratings:

Dynamic C: 20.1 kN

Static C₀: 34.5 kN

Static Moment Rating About:

X axis M_R: 0.39 kN-m

Y axis M_Y: 0.27 kN-m

Z axis M_P: 0.27 kN-m

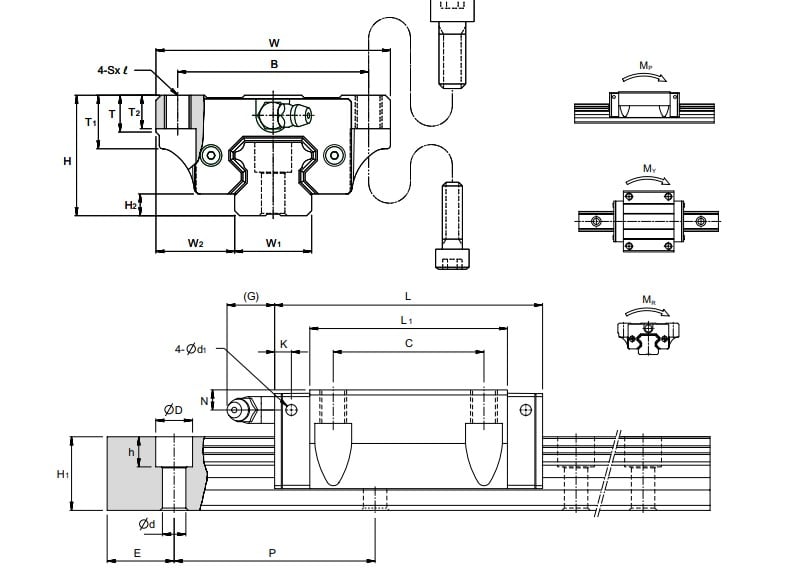

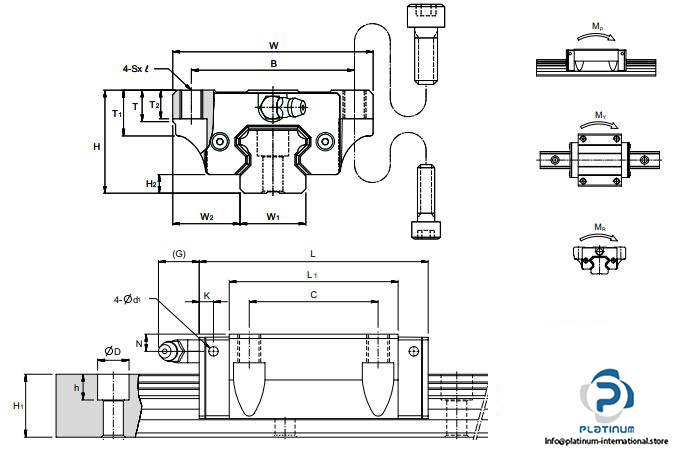

Dimensions:

Height system H: 36 mm

Width carriage W: 70 mm

Overall length carriage L: 81.6 mm

B: 57 mm

C: 45 mm

Weight: 0.62 kg
