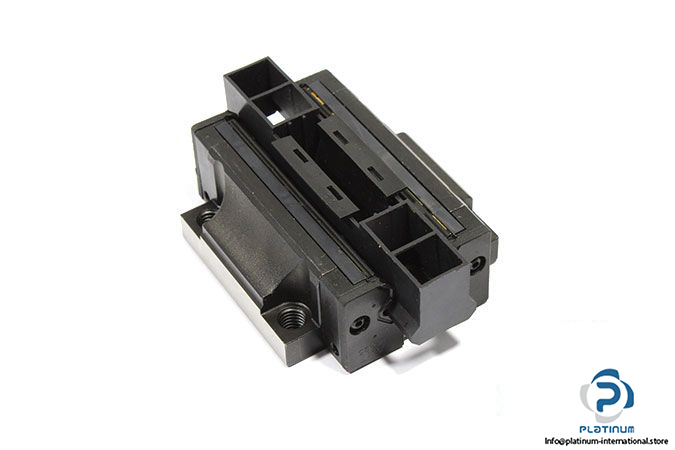

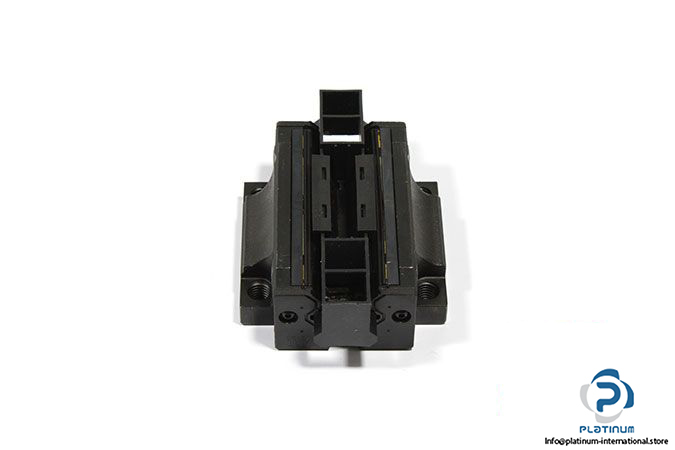

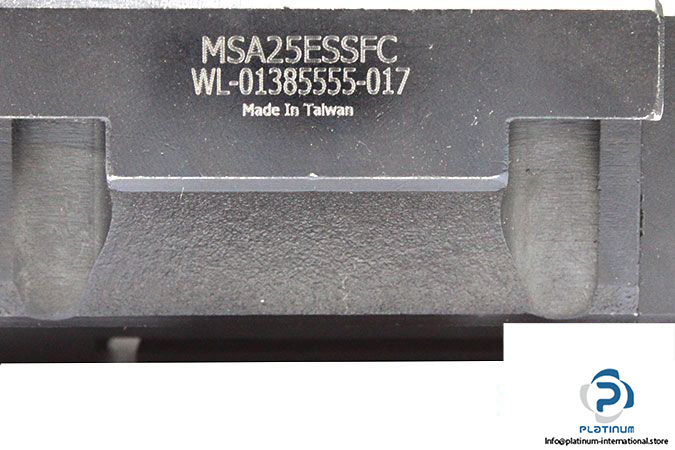

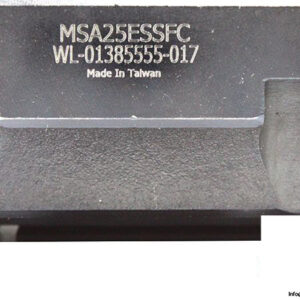

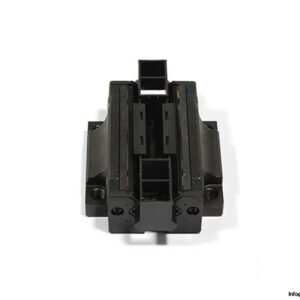

AMT MSA25E Linear Guideway Block

Manufacturer: AMT
Type: LINEAR GUIDEWAY BLOCK
Model: MSA25E

Size: 25 mm
Carriage type: MSA-E ,Flange type, Mounting either from top or bottom
Load Type: Heavy load

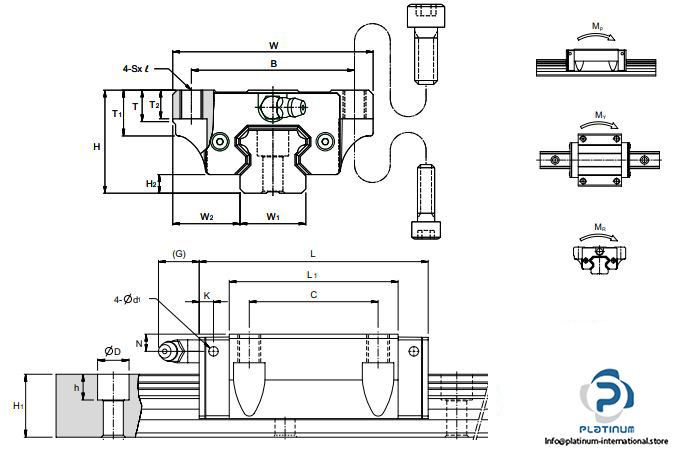

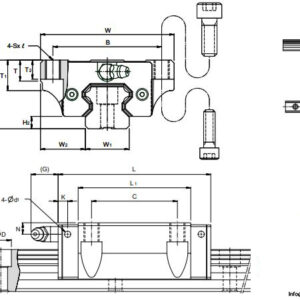

Dimensions:
Height system H: 36 mm
Width carriage W: 70 mm
Carriage height(H-H2): 29.5 mm
Overall length carriage L: 81.6 mm
T: 11 mm
B: 57 mm
C: 45 mm
Basic Load Ratings:
Dynamic C: 20.1 kN
Static C₀: 34.5 kN
Static Moment Rating About:
X axis M_R: 0.39 kN-m
Y axis M_Y: 0.27 kN-m
Z axis M_P: 0.27 kN-m
