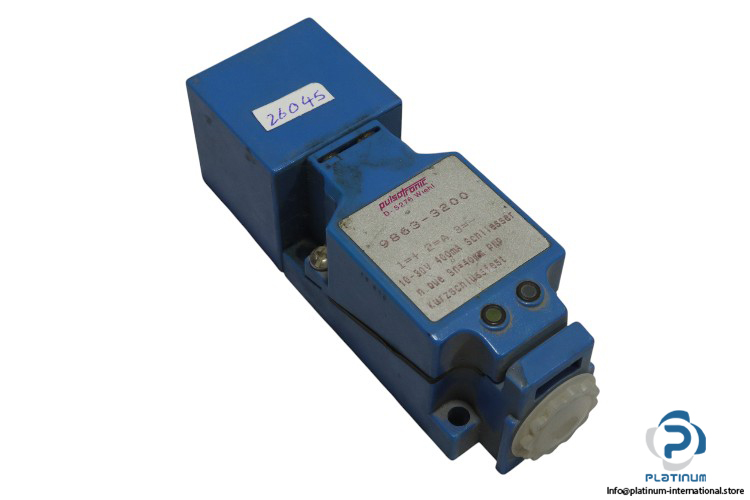

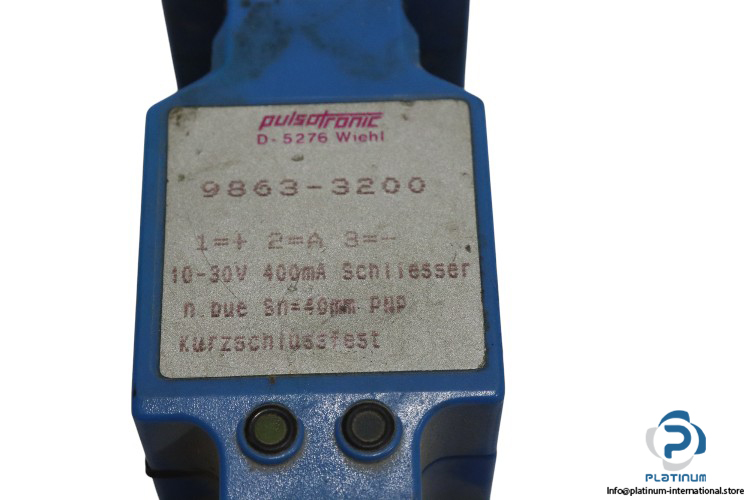

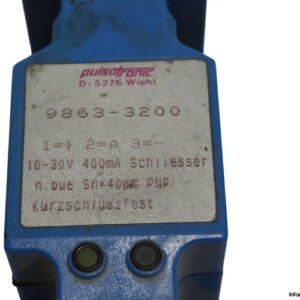

PULSOTRONIC 9863-3200 Inductive Sensor
The PULSOTRONIC 9863-3200 is a high-performance inductive sensor designed for precise non-contact object detection in industrial automation environments. With a long 40 mm switching distance and rugged IP67 protection, it offers reliable performance even in harsh operating conditions.
- Manufacturer: PULSOTRONIC
- Type: Inductive Sensor
- Model: 9863-3200
- Part No.: D-5276
Technical Information:
- Switching Distance: 40 mm
- Operating Voltage: 10 – 30V DC
- Max. Load Current: 400 mA
- Mounting: Non shielded
- Signal Type: PNP
- Connection: Terminal
- Protection Class: IP67
- Operating Temperature: -25 to 70 °C
- Dimension: 40 x 40 x 120 mm
