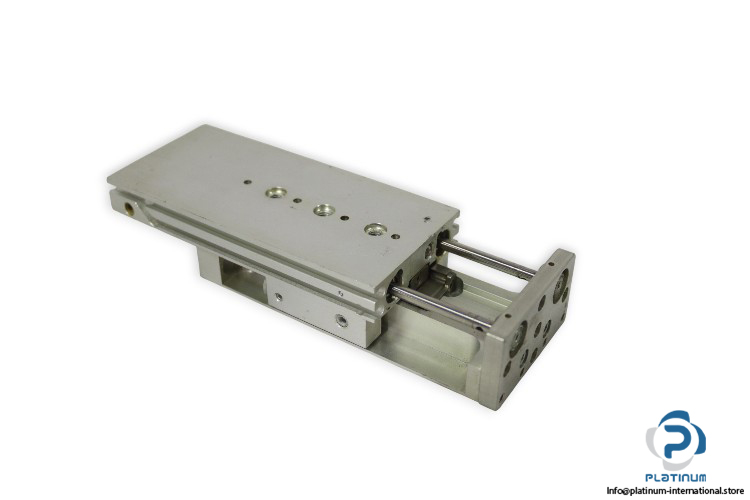

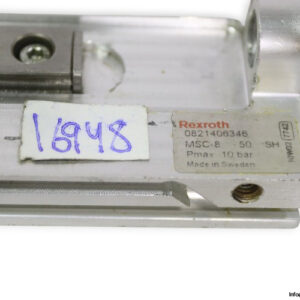

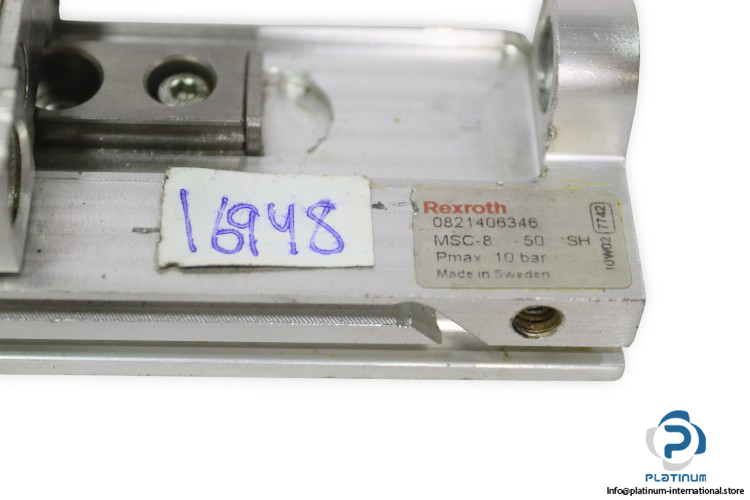

Rexroth MSC-8 50 Mini Slide Compact Cylinder
A high-precision compact cylinder engineered for reliable linear motion, smooth operation, and long service life. The Rexroth MSC-8 50 delivers exceptional performance in automated systems, assembly lines, and positioning tasks where accuracy, speed, and durability are essential. Its compact design makes it ideal for installations with limited space, while the maintenance-free lubrication and robust anodized construction ensure consistent performance in demanding industrial environments.
Manufacturer: Rexroth
Type: Mini Slide Compact Cylinder
MNR: 0821406346
Model: MSC-8 50
Code: 7742 / 10W02 / SH
Series: MSC
Technical Information
- Medium: Compressed air, lubricated or oil-free
- Lubrication: Maintenance-free
- Piston Diameter: 8 mm
- Stroke: 50 mm
- Operating Mode: Double-acting
- Cushioning: Elastomer hydraulic
- Pressure: Max. 10 bar
- Theoretical Useful Force:
- Speed: 0.8 m/s
- Connection: 5 mm
- Operating Temperature: 0 °C to +60 °C
- Housing Material: Aluminum (anodized)
- Slide Material: Aluminum (anodized)
- Front Plate: High-strength aluminum (anodized)
- Guide: Hardened steel
- Seals: NBR+PU
