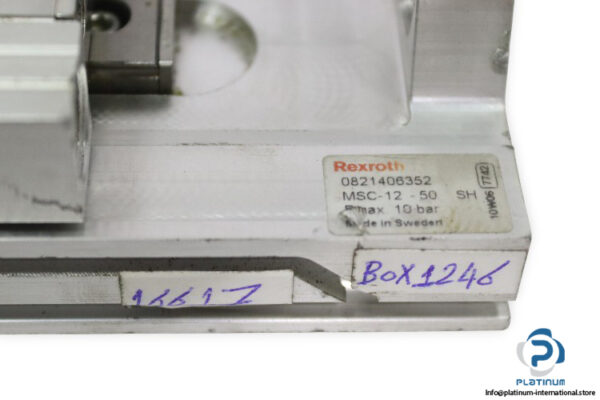

REXROTH MSC-12-50 SH Mini Slide

The REXROTH MSC-12-50 SH Mini Slide is a compact and precise linear actuator designed for reliable double-acting motion in pneumatic automation systems. Built with anodized aluminum housing, it provides high durability, smooth operation, and maintenance-free performance in a variety of industrial applications.

Manufacturer: REXROTH
Type: Mini Slide
Model: MSC-12-50 SH
Material Number: 0821406352
Series: MSC
Reference Code: 10W06

Technical Information

• Operating Mode: Double acting
• Operating Pressure: 1 to 10 bar
• Temperature Range: 0 to 60 degree Celsius
• Cushioning: Hydraulic
• Theoretical Useful Force (at 6 bar): 136 Newtons
• Medium: Compressed air, lubricated or oil free
• Lubrication: Maintenance free
• Material Housing: Aluminum anodized
• Material Slide: Aluminum anodized
• Cylinder Diameter: 12 millimeters
• Stroke: 50 millimeters
• Port Size: 5 millimeters
