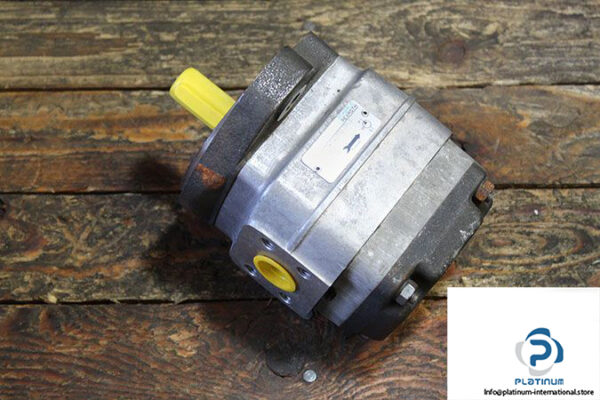

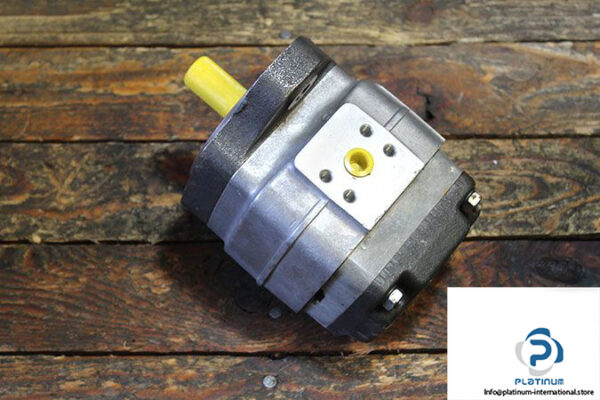

Manufacturer: Rexroth

Type: Hydraulic Gear Pump

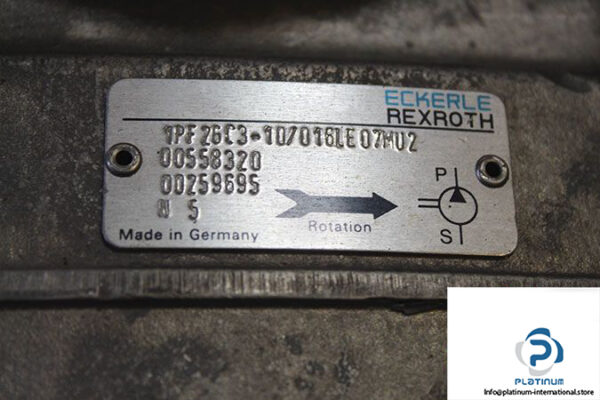

Model: 1PF2GC3-10/016LE07MU2

Size: 16

Displacement: 16.2 cm³

Direction of Rotation: Counter-Clockwise

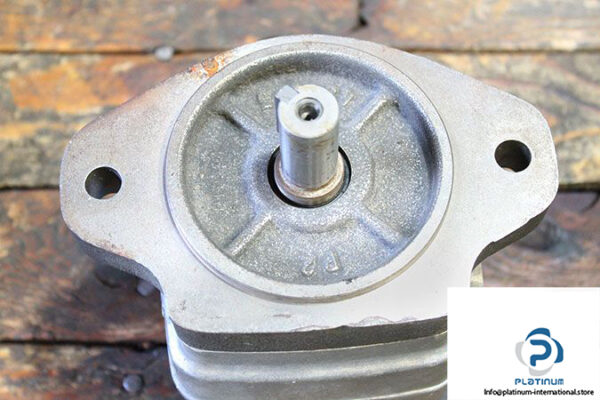

Shaft Diameter: 20 mm

Max Continuous pressure: 250 bar

Speed Range: 500 …. 3000 rpm

Flow Rate at 1450 rpm: 23.51 L/m

Viscosity Range: 10 ….  300 mm²/s

Weight: 7 Kg
