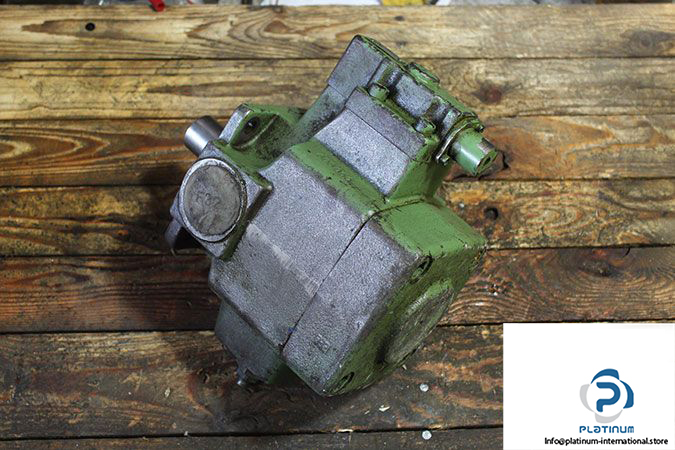

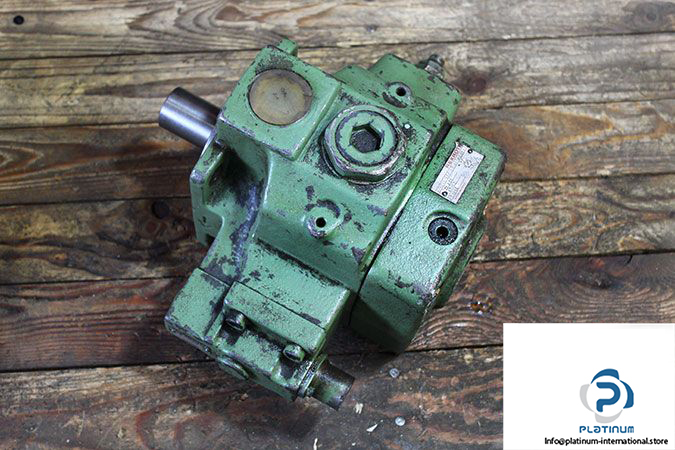

Manufacturer: Rexroth

Type: Variable Vane Single Pump

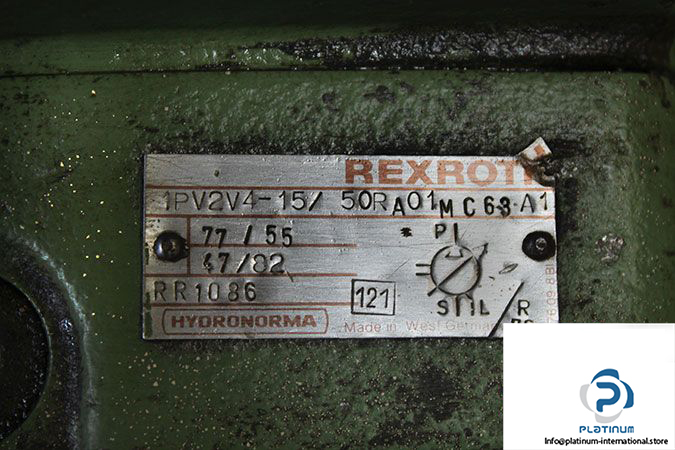

Model: 1PV2V4-15/50RA01MC63A1

size: 50

Displacement: 55.2 cm³

Direction of Rotation: Clockwise

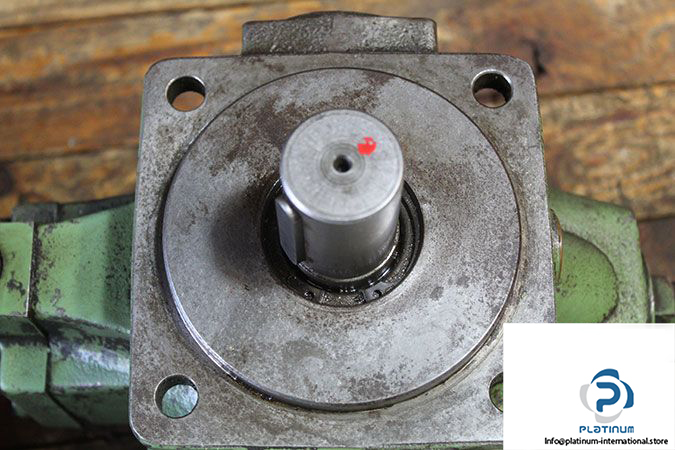

Shaft Diameter: 38 mm

Operating pressure: 160 bar

Speed Range: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 72.5 l/m

Power at 1450 rpm: 23 KW

Torque at 100 bar: 510 N.m

Viscosity Range: 16 ….  160 mm²/s

Weight: 43.1 Kg
