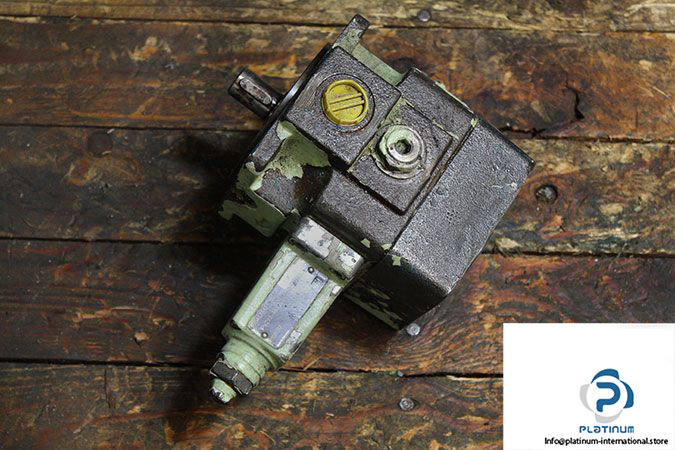

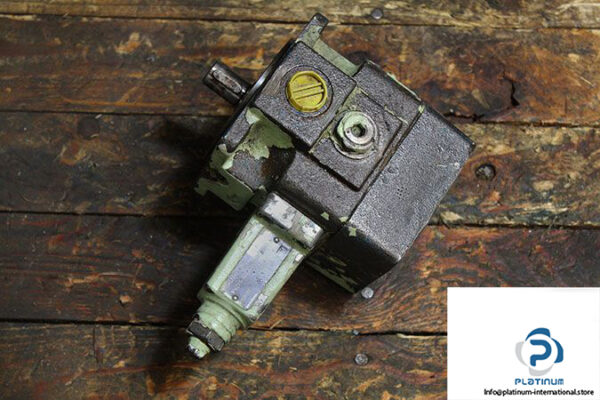

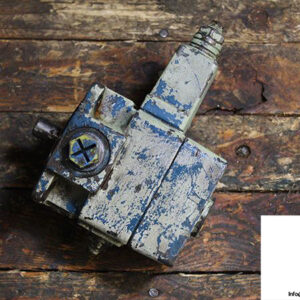

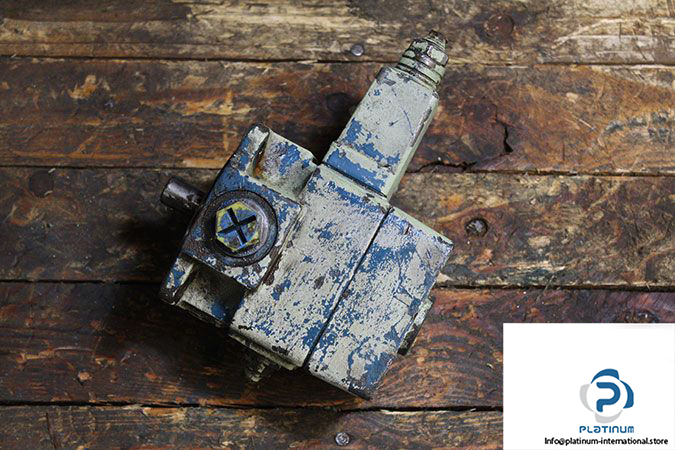

Rexroth 1PV2V3-46/25RA01MC100A1 Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

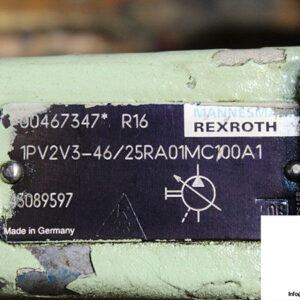

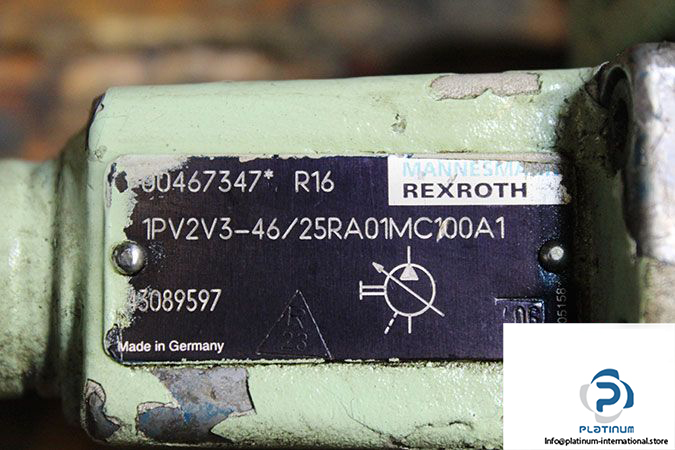

Model: 1PV2V3-46/25RA01MC100A1



size: 25

Displacement: 19 cm³

Direction of Rotation: Clockwise

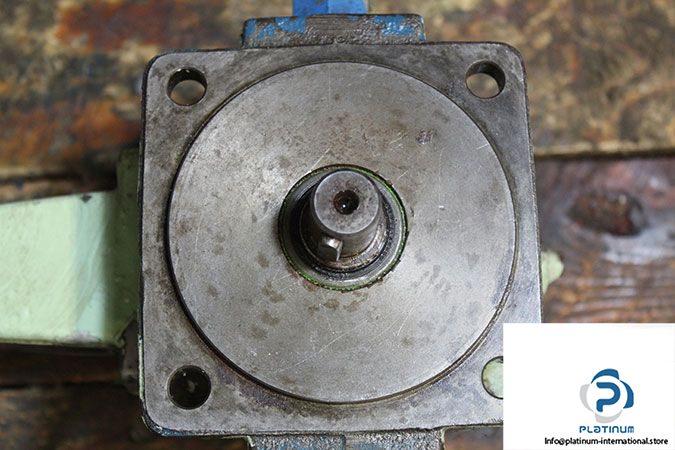

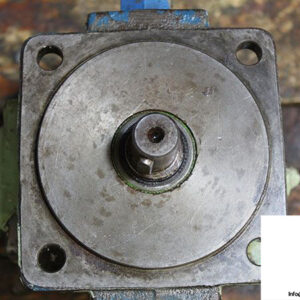

Shaft Diameter: 19 mm

Operating pressure: 100 bar

Drive Speed: 950 …. 1800 rpm

Flow Rate at 1450 rpm: 27.5 l/m

Torque at 100 bar: 61.8 N.m

Viscosity Range: 16 ….  160 mm²/s

Weight: 11.3 Kg
