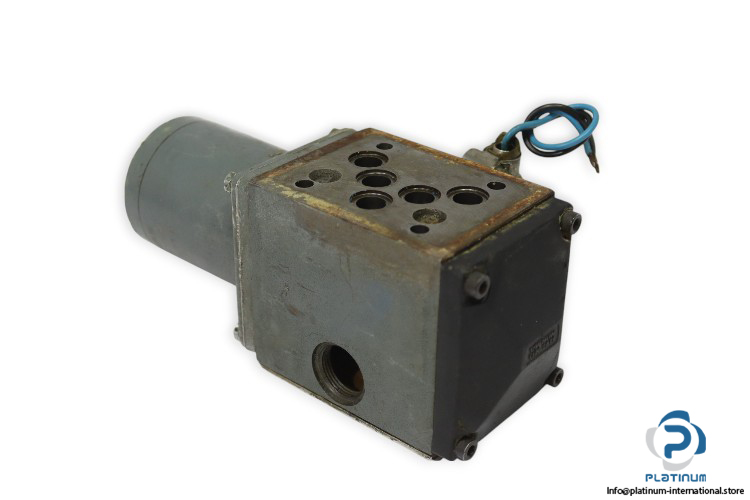

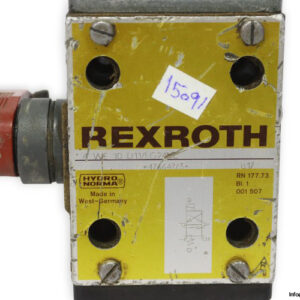

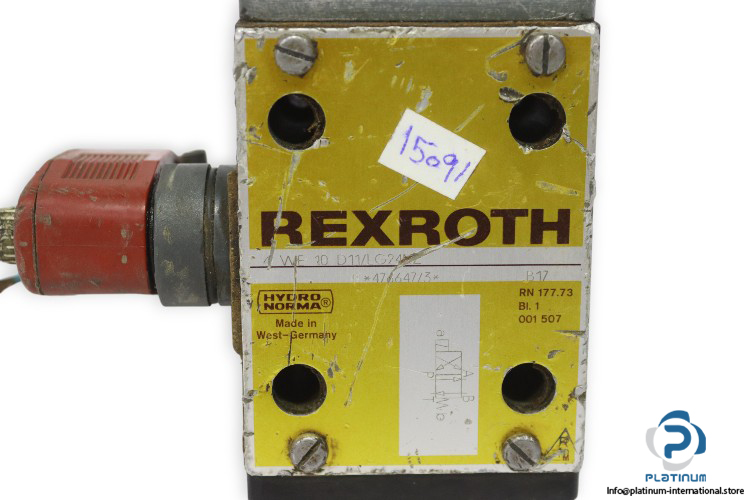

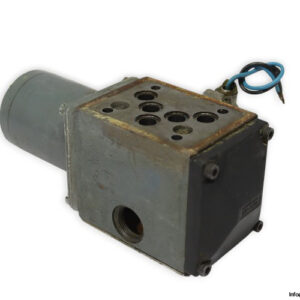

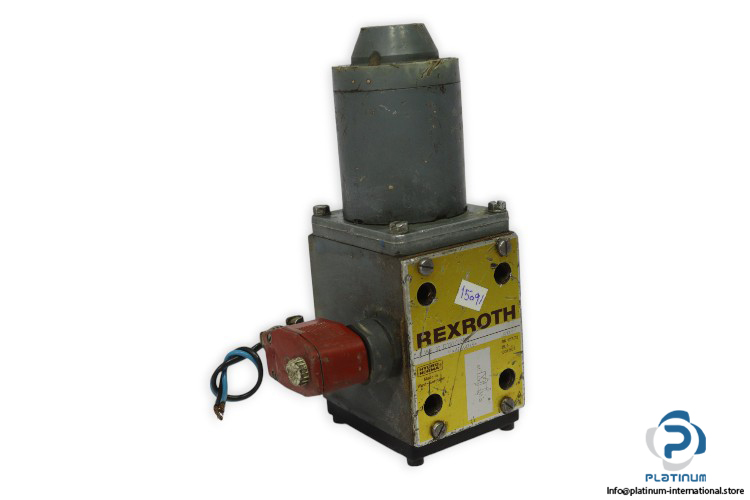

REXROTH HYDRONORMA 4 WE 10 D11/LG24NZ DIRECTIONAL CONTROL VALVE
The Rexroth Hydronorma 4 WE 10 D11/LG24NZ is an electrically actuated directional control valve designed for high-performance hydraulic systems. It supports high flow rates and pressure resistance, making it ideal for demanding industrial applications.
Manufacturer: Rexroth Hydronorma
Type: Directional Control Valve
Model: 4 WE 10 D11/LG24NZ
Part No.: 476647/3
Code: RN 177.73, 001507, B17
Technical Information
- No. of Ports: 4
- Size: 10
- Type of Actuation: Electrically
- Ambient Temperature Range: -30 to +50 °C
- Maximum Operating Pressure at Ports A, B, P: 315 bar
- Maximum Operating Pressure at Port T: 210 bar
- Maximum Flow Rate: 120 l/min
- Hydraulic Fluid Temperature Range: -30 to +80 °C
- Viscosity Range: 2.8 to 500 mm²/s
- Voltage: 24 V
