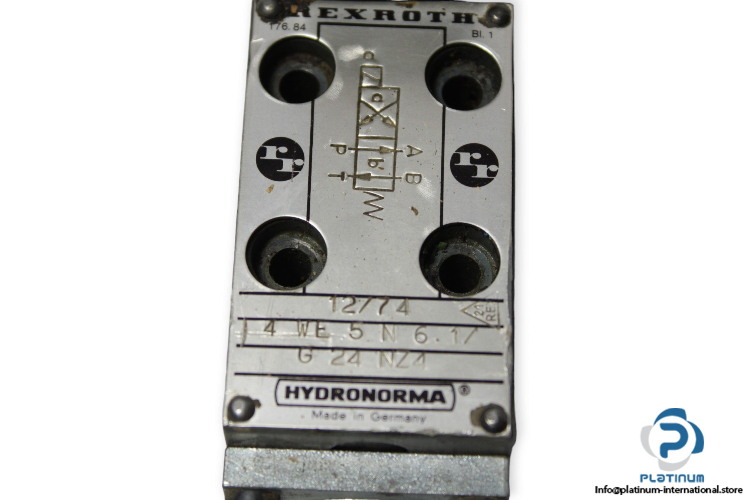

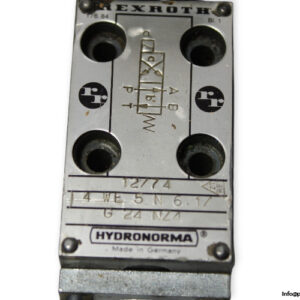

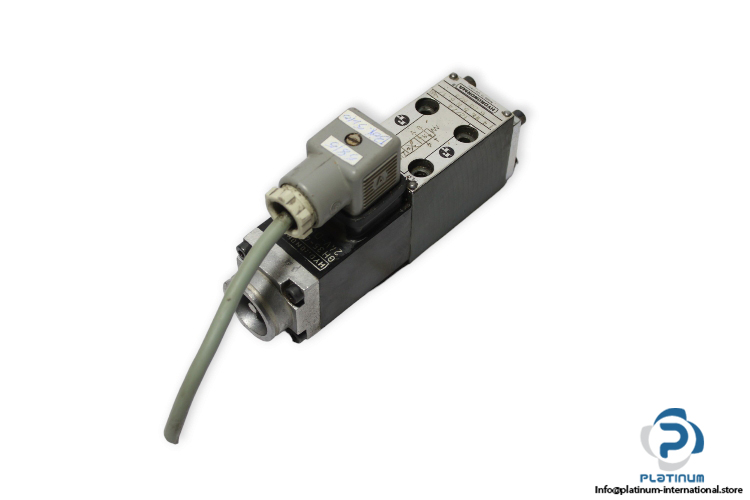

Rexroth 4WE 5 N 6.1/G 24 NZ4 Solenoid Directional Control Valve

Manufacturer: Rexroth
Type: Solenoid Directional Control Valve
Model: 4WE5N6.1/G24NZ4

Size: NG 5
Type of Actuation: Electrically
Ambient Temperature Range [°C]: -30 …. +50
Maximum Operating Pressure at Ports A, B, P [bar] :25
Maximum Operating Pressure at Port T [bar] :6
Maximum Flow Rate [l/min]: 14
Hydraulic Fluid Temperature Range [°C]: -30 …. +80
Viscosity Range [mm²/s]: 2.8 … 500
Connection: Sup-plate

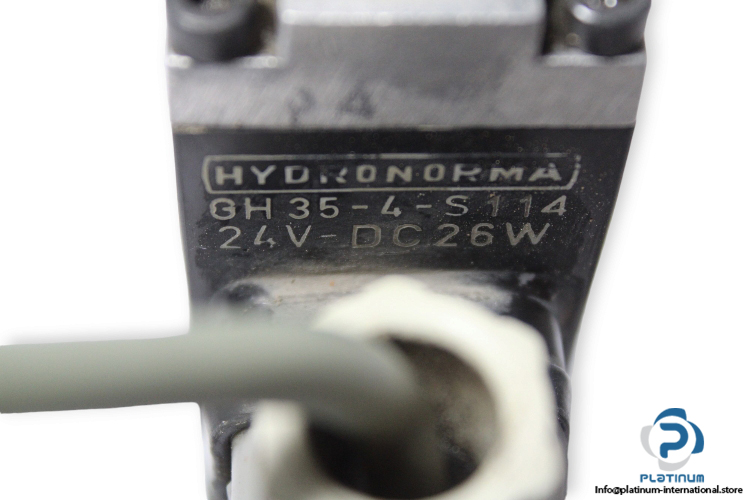

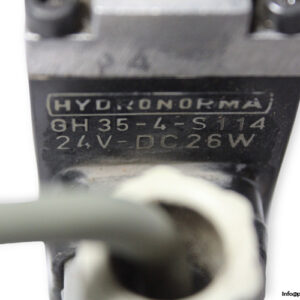

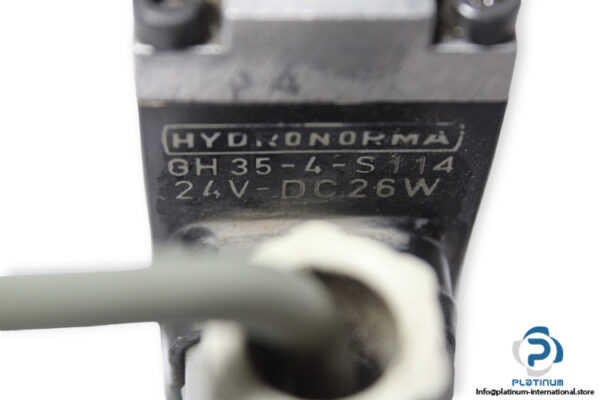

Attachment: Hydronorma GH35-4-S114 Solenoid Coil
Manufacturer: Hydronorma
Type: Solenoid Coil
Model: GH35-4-S
Voltage [Vdc]: 24
Power [W]: 26
