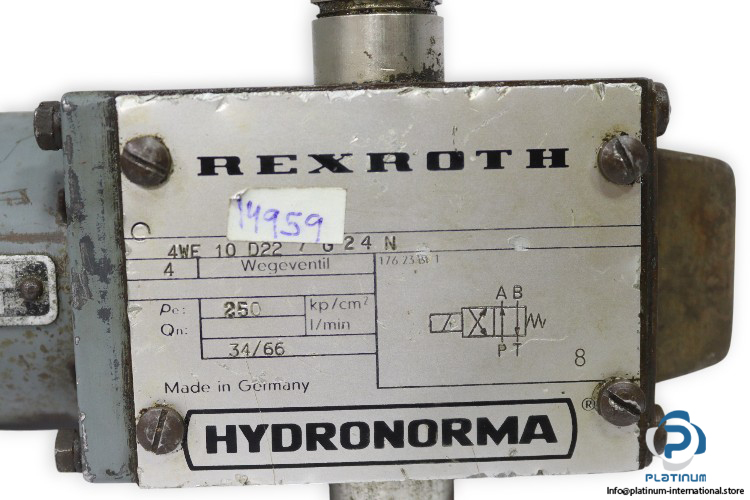

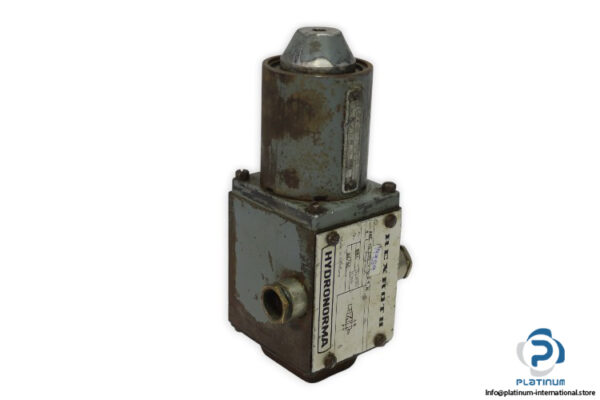

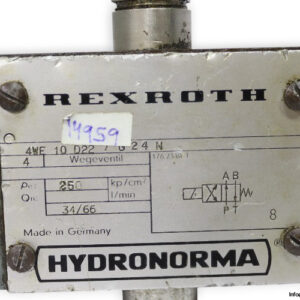

REXROTH/HYDRONORMA 4WE 10 D22/G24N DIRECTIONAL CONTROL VALVE

This 4/2 electrically actuated directional control valve from Rexroth/Hydronorma is engineered for high-pressure hydraulic systems. With a compact size 10 configuration, it ensures precise control of hydraulic flow and direction, suitable for demanding industrial environments. Comes with a Hydronorma GHY 065 coil for reliable 24V operation.

Manufacturer: Rexroth/Hydronorma
Type: Directional Control Valve
Model: 4WE 10 D22/G24N
Code: 34/66

Technical Information

• No of Port: 4
• Size: 10
• Type of Actuation: Electrically
• Function: 4/2
• Operating Pressure (pe): 250 kp/cm²
• Maximum Flow Rate: 120 l/min
• Ambient Temperature Range: -30 to +50 °C
• Hydraulic Fluid Temperature Range: -30 to +80 °C
• Viscosity Range: 2.8 to 500 mm²/s
• Connection: Sub-plate

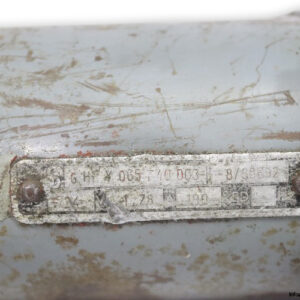

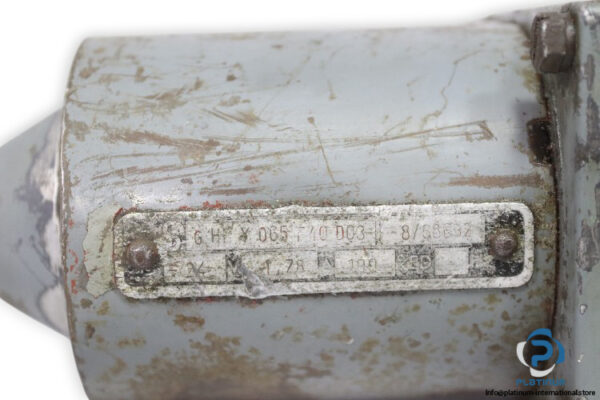

Attached Coil

Manufacturer: HYDRONORMA
Type: COIL
Model: GHY 065 40D03-8/68632

• Voltage: 24 V
• Current: 1.78 A
• Duty: 100% ED
