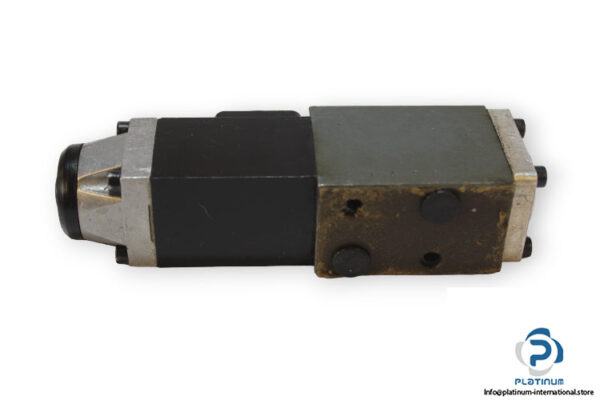

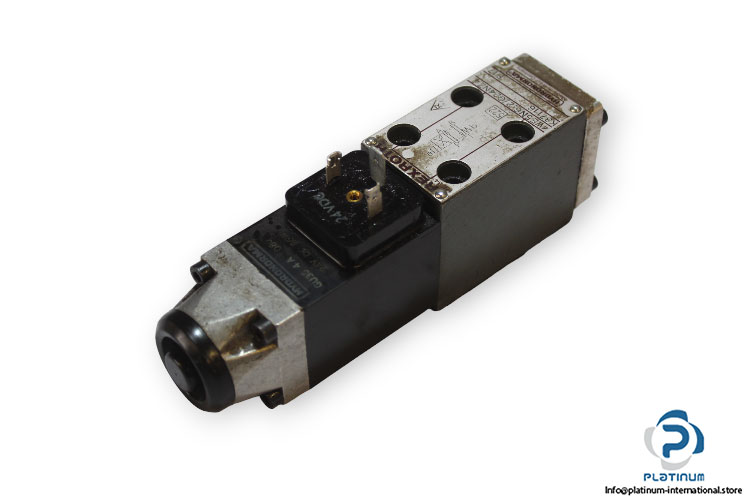

REXROTH HYDRONORMA 4WE5N62G24NZ4K37116 SOLENOID DIRECTIONAL CONTROL VALVE
The Rexroth Hydronorma 4WE5N6.2/G24NZ4 K37116 is a high-performance solenoid directional control valve designed for precise oil flow control in hydraulic systems. Equipped with the Hydronorma GU35-4A 080 solenoid coil, it ensures reliable actuation in demanding industrial environments.
Manufacturer: Rexroth Hydronorma
Type: Solenoid Directional Control Valve

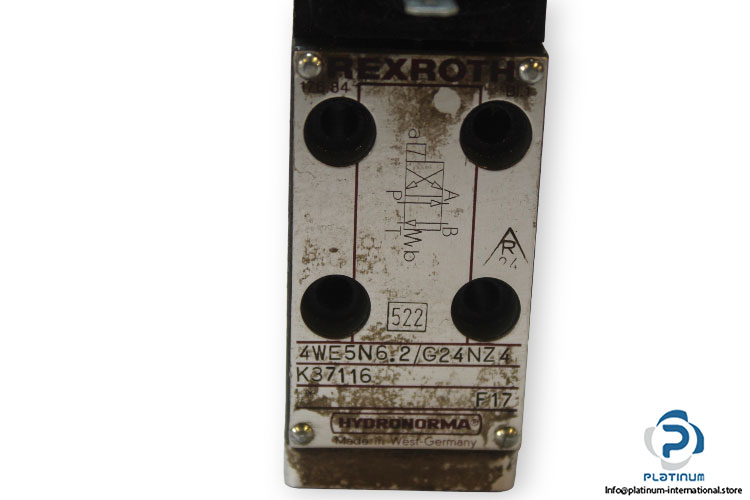

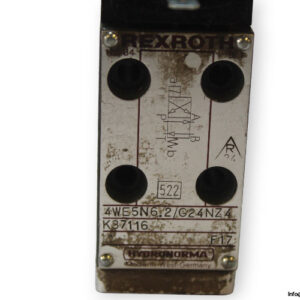

Model: 4WE5N6.2/G24NZ4 K37116
Valve Technical Information
- Fluid: Oil
- Size: NG 5
- Type of Actuation: Electrically
- Maximum Operating Pressure (Ports A, B, P): 25 bar
- Maximum Operating Pressure (Port T): 6 bar
- Maximum Flow Rate: 14 l/min
- Ambient Temperature Range: -30 / 50 °C
- Viscosity Range: 2.8 / 500 mm²/s
- Connection: Sub-plate

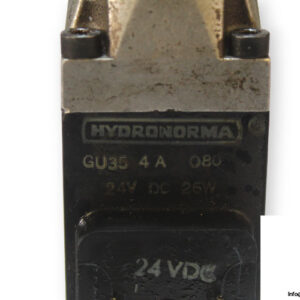

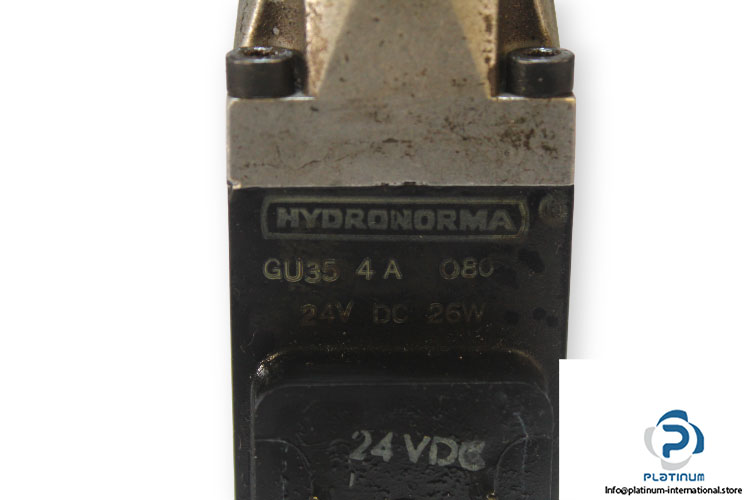

Solenoid Coil Technical Information
- Manufacturer: Hydronorma
- Type: Solenoid Coil
- Model: GU35-4A 080
- Voltage: 24 V DC
