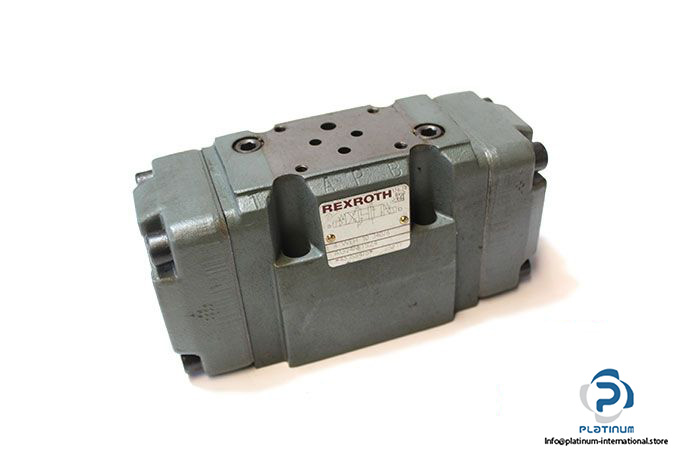

REXROTH 4WEH10J406AG24NETSZ4 PILOT OPERATED DIRECTIONAL VALVE
The Rexroth 4WEH 10 J40/6AG24NETSZ4 is a high-performance pilot operated directional valve designed for demanding hydraulic applications. With electrohydraulic actuation and robust construction, it ensures reliable operation under high pressure and flow conditions.
Manufacturer: Rexroth
Type: Pilot Operated Directional Valve

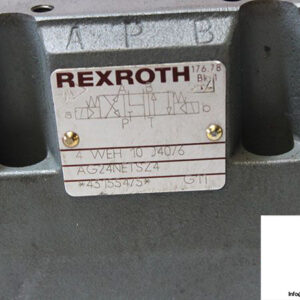

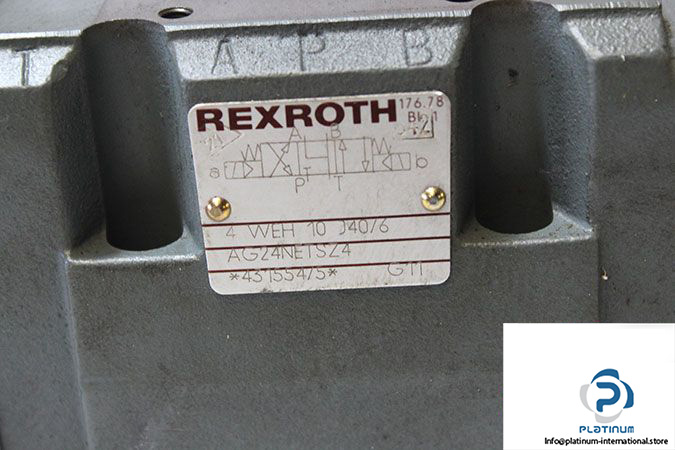

Model: 4WEH 10 J40/6AG24NETSZ4
Part No.: 431554/5
Technical Information
- Fluid: Oil
- Size: NG10
- Type of Actuation: Electrohydraulic
- Maximum Operating Pressure Ports P, A, B: 280 bar
- Maximum Pilot Pressure: 250 bar
- Maximum Flow Rate: 1100 l/min
- Ambient Temperature Range: -30 / 50 °C
- Viscosity Range: 2.8 / 500 mm²/s

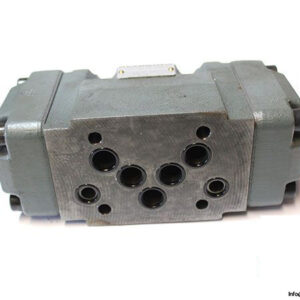

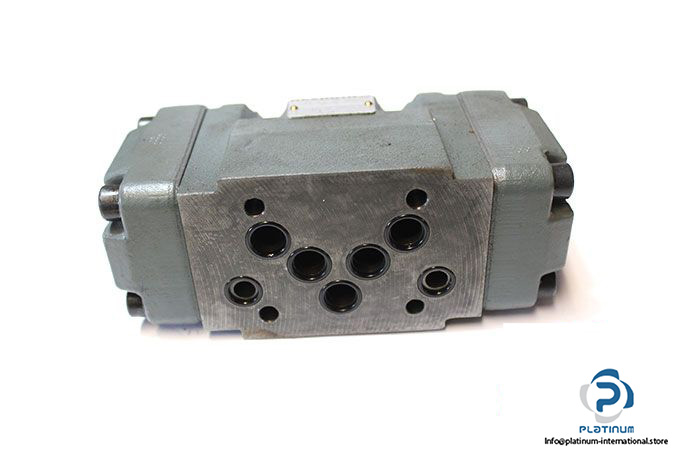

- Connection: Sub-Plate
