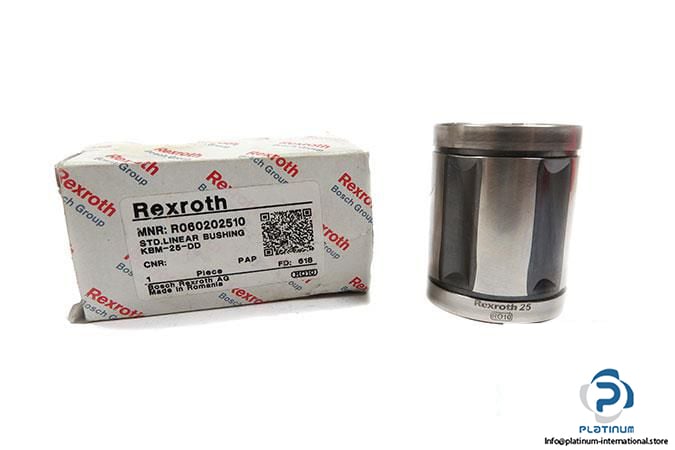

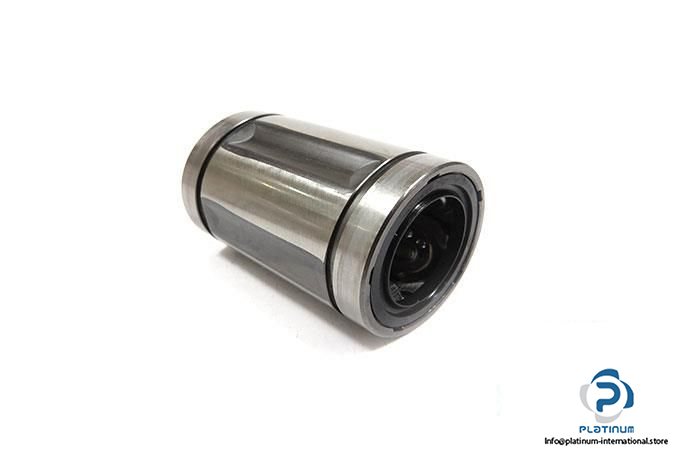

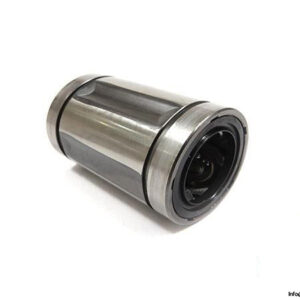

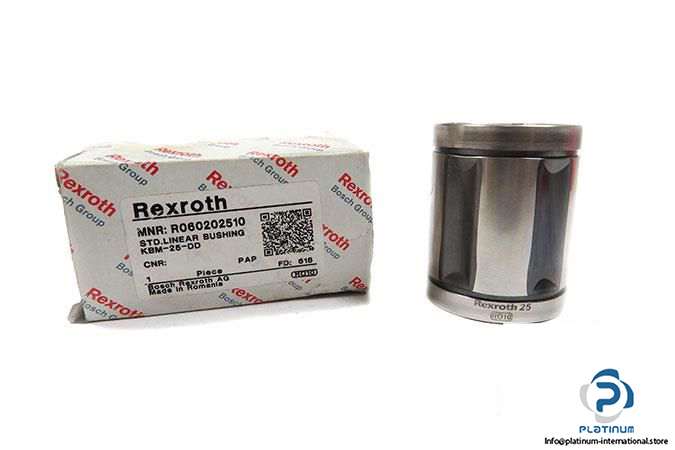

Manufacturer: REXROTH
Type: Standard Linear Bushing
MNR: R0602 025 10
Format of linear bushings: Closed
Dimensions:
Shaft diameter d0: 25 mm
Rows of Balls: 5
Max. acceleration amax: 100 m/s²
Speed: 2.5 m/s
Friction force: 5 N
Breakaway force: 14 N
Dynamic Load rating:
Cmin: 2080 N
Cmax: 2480 N
Static Load rating:
C0min: 1560 N
C0max: 2280 N
Dimensions:
D: 40 mm
C: 58 mm
C1: 43.7 mm
C2: 1.85 mm
D1: 38.5 mm
Seals: with two wiper seals
Permissible Ambient Temperature: -10 … +80 °C
