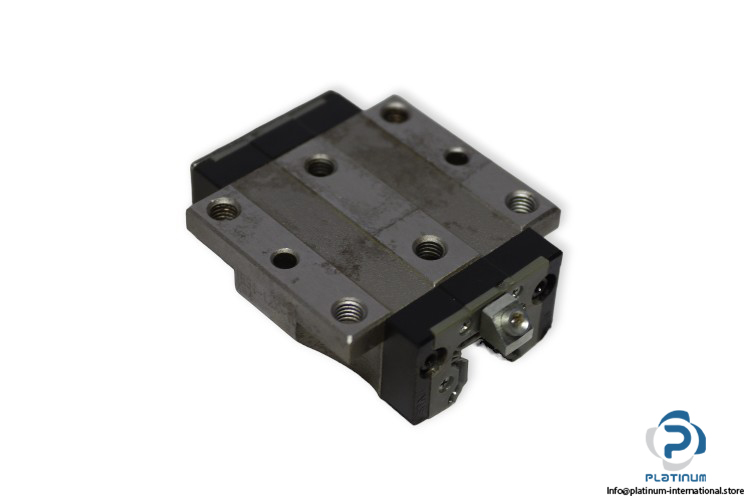

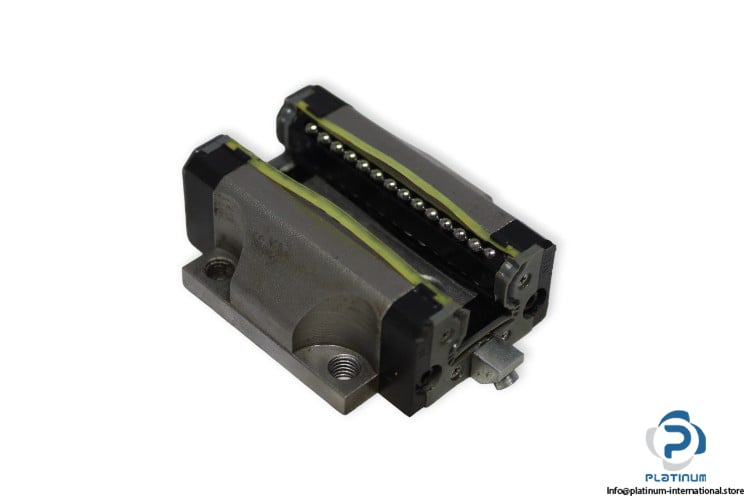

Rexroth Star 1651-124-10 Ball Runner Block

Manufacturer: Rexroth Star
Type: Ball Runner Block

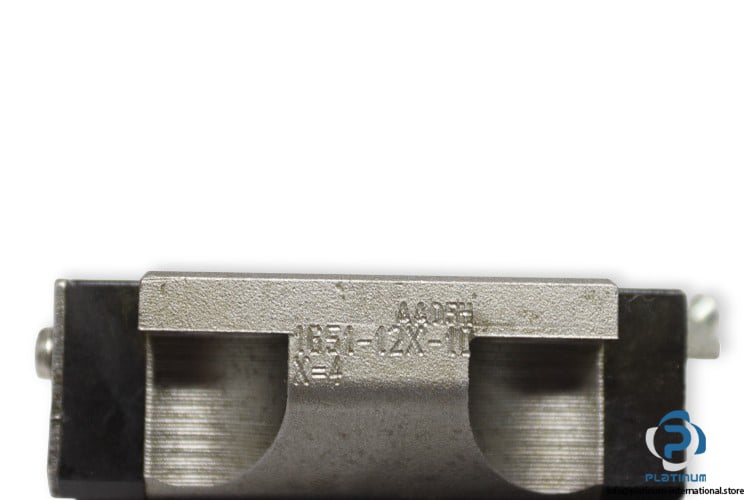

MNR: 1651-12X-10

Size: 15 mm
Dynamic Load Capacity C: 7800 N
Static Load Capacity C0: 13500 N
Dynamic Torsional Moment Load Capacity M_t:  74 Nm
Mt0: 130 Nm
Dynamic longitudinal moment load capacity ML: 40 Nm
Static longitudinal moment load capacity ML0: 71 Nm
Accuracy Class: N – Normal

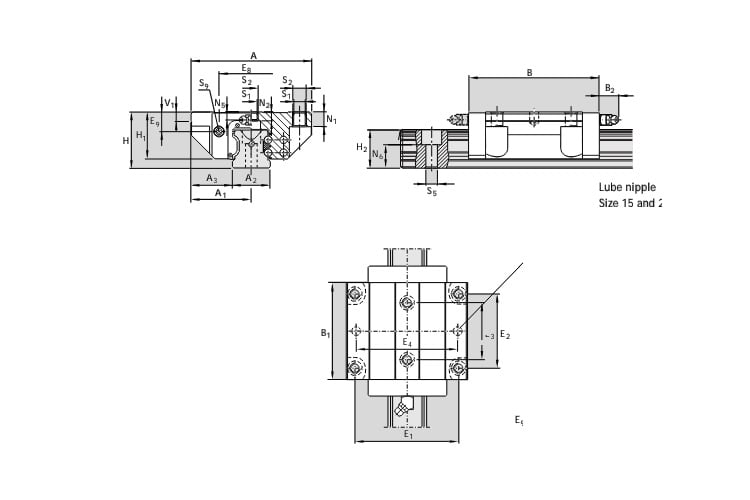

Dimensions
Width (A): 47 mm
Length (B): 54 mm
Height of system(H): 24 mm
Height of block (H₁): 19.8 mm
E1: 38 mm
E2: 30 mm
Admissible Operating Temperature: -10 °C … +80 °C
