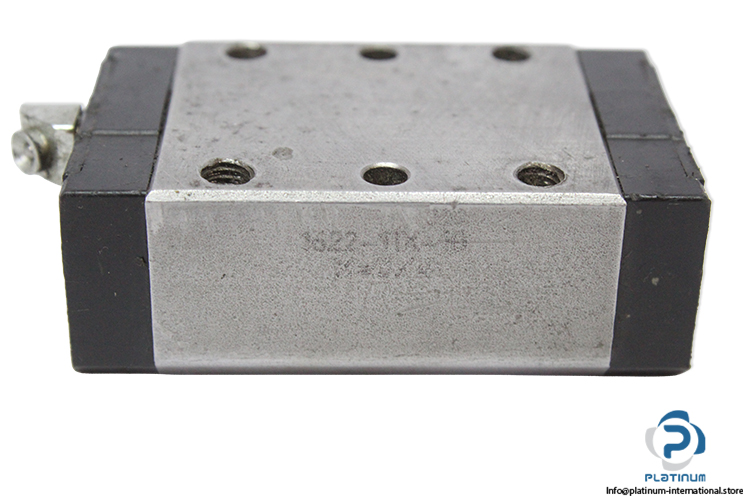

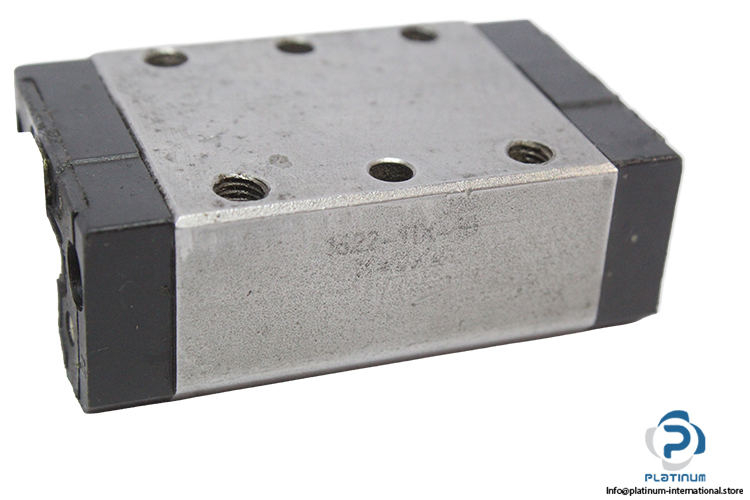

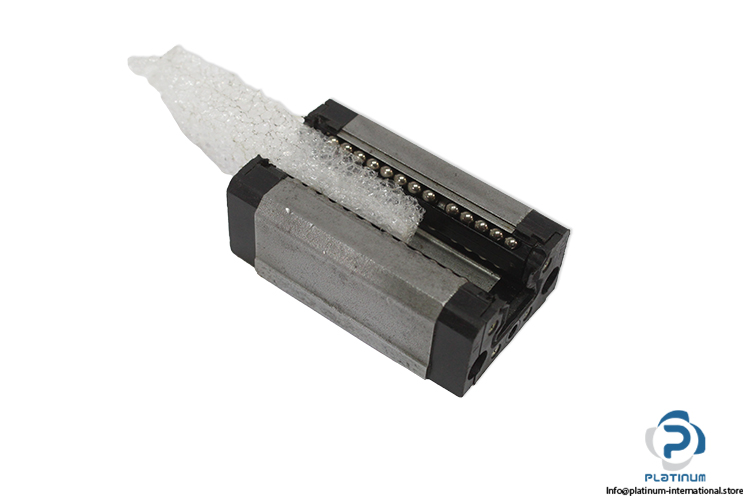

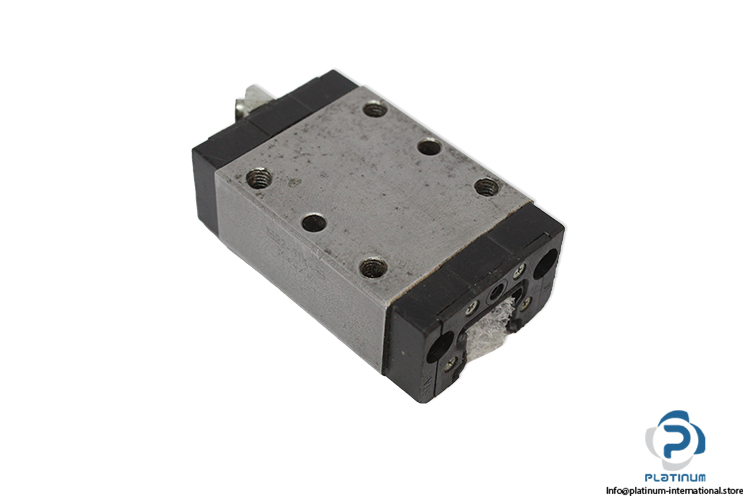

Rexroth Star 1622-11X-10 X=3/4 Ball Runner Block
Used
In stock1 unitReady to ship
Ball Runner Block Rexroth Star R162211X10 is a precision linear motion carriage system with 15 mm size, high load capacity up to 13500 N, and maximum speed of 5 m/s, designed for reliable and accurate motion applications
15mmBallbearingBlockCarbonCarriageGuideHighIndustrialLinearLoadMotionPrecisionR162211X10RexrothRunnerStarSteelSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | R162211X10 X=3/4 |
| Size | 15 mm |

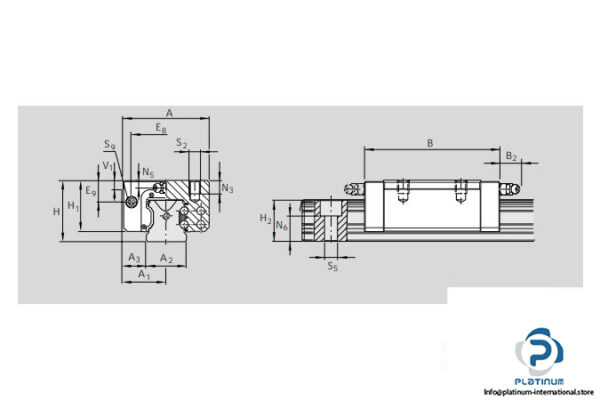

| Width (A) | 34 mm |
| Length (B) | 54 mm |
| Height (H1) | 19.8 mm |
| Mechanical Format | KWC |
| Design | SNS, Slimline, Normal, Standard Height |
| Format | CS, Carbon Steel |
| Maximum Acceleration Travel (amax) | 500 m/s² |
| Maximum Permissible Speed (vmax) | 5 m/s |
| Dynamic Load Capacity (C) | 7800 N |
| Static Load Capacity (C0) | 13500 N |
| Dynamic Torsional Moment Load Capacity (Mt) | 74 Nm |
| Static Torsional Moment Load Capacity (Mt) | 130 Nm |
| Admissible Operating Temperature | -10 / +80 °C |
| Condition | Used |
| SKU | 1097116 |
| Weight | 0,15 |
