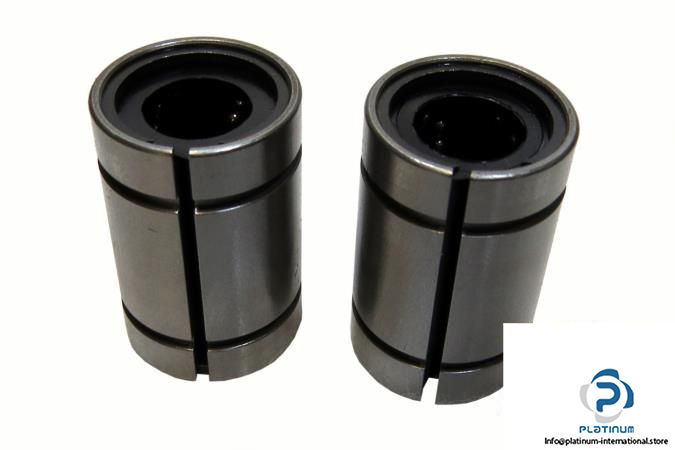

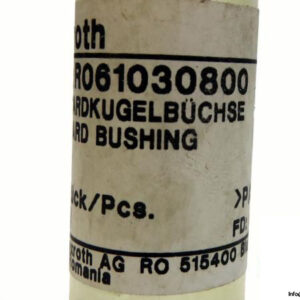

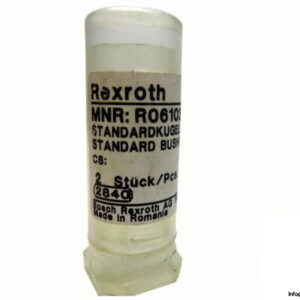

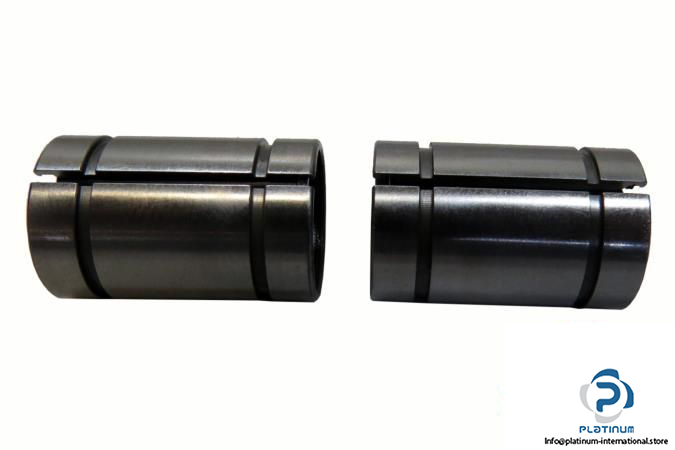

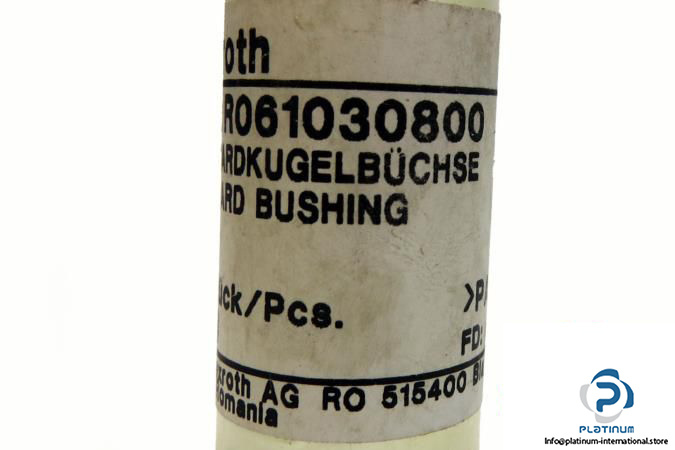

Manufacturer: REXROTH
Type: Standard Linear Bushing
MNR: R0610 308 00
Dimensions:
Shaft diameter d0: 8 mm
Rows of Balls: 4
Dynamic Load rating:
Cmin: 320 N
Cmax: 370 N
Static Load rating:
C0min: 240 N
C0max: 330 N
Dimensions:
D: 16 mm
C: 25 mm
C1: 16.2 mm
C2: 1.10 mm
D1: 14.7 mm
E: 1.5 mm
Permissible Ambient Temperature: -10 … +80 °C
